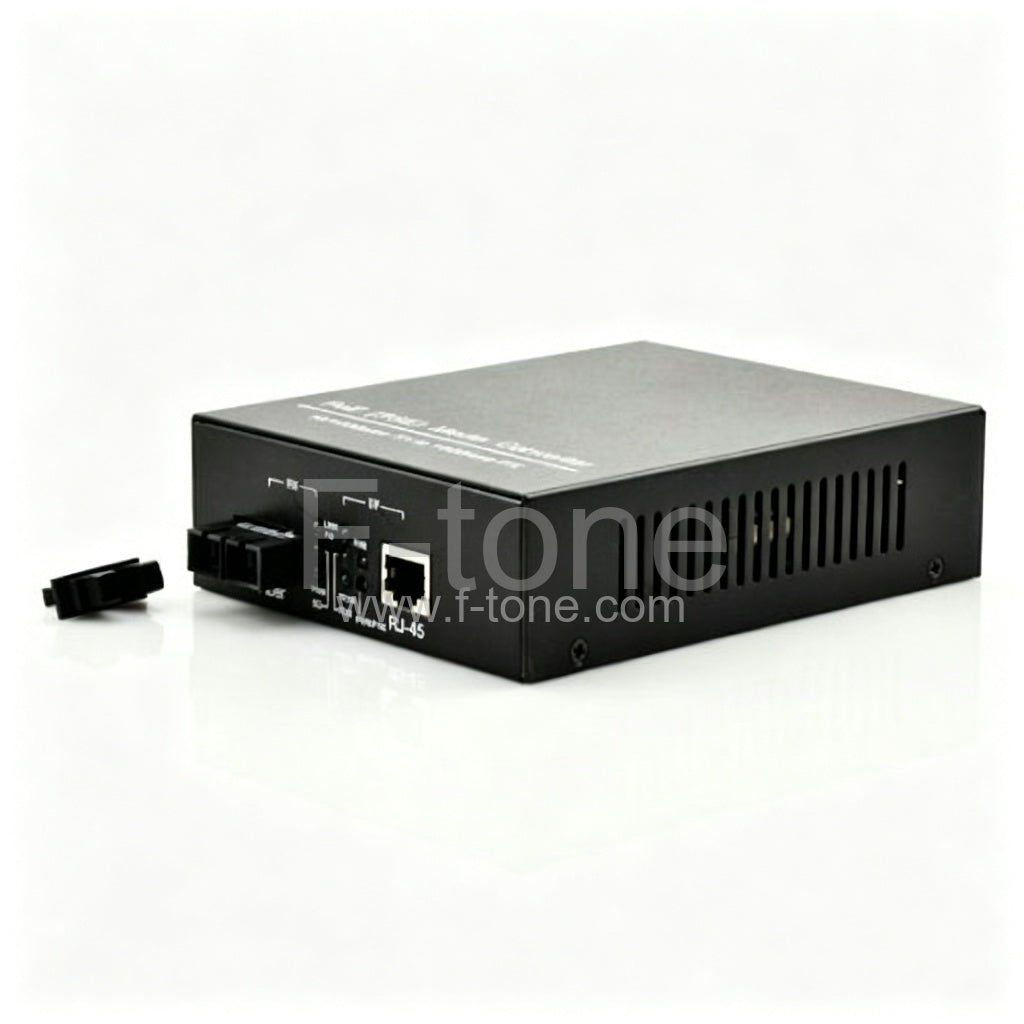

10/100/1000M Dual Fiber 1550nm 100km POE Media Converter

Part Number: FTC1R-POE-DF-55-100GA

10/100/1000M Dual Fiber 1550nm 100km POE Media Converter

The POE (Power Over Ethernet) media converter enables enterprises to provide power to network devices over the existing CAT5 data connection. The 10/100/1000 PoE Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network with fiber cabling. At the same time they function as PoE injectors to power devices like IP phones, video conferencing equipment, IP cameras and Wi-Fi devices over copper UTP cabling.

F-tone supply 10/100/1000Base Ethernet Fiber Media Converters, 1000Base Gigabit Fiber Media Converter, SFP Fiber Media Converter, Industrial managed Media Converter, Managed Media Converter (Standalone or Card Type), POE media Converter, options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media Converters Chassis, like 14 slot media converter chassis, 16 slot media converter chassis, and 17 slot media converter chassis, used to manage the various media converters.

Key Features

• 10/100/1000Base-T(X) to 1000Base-FX Fast Ethernet POE Converter

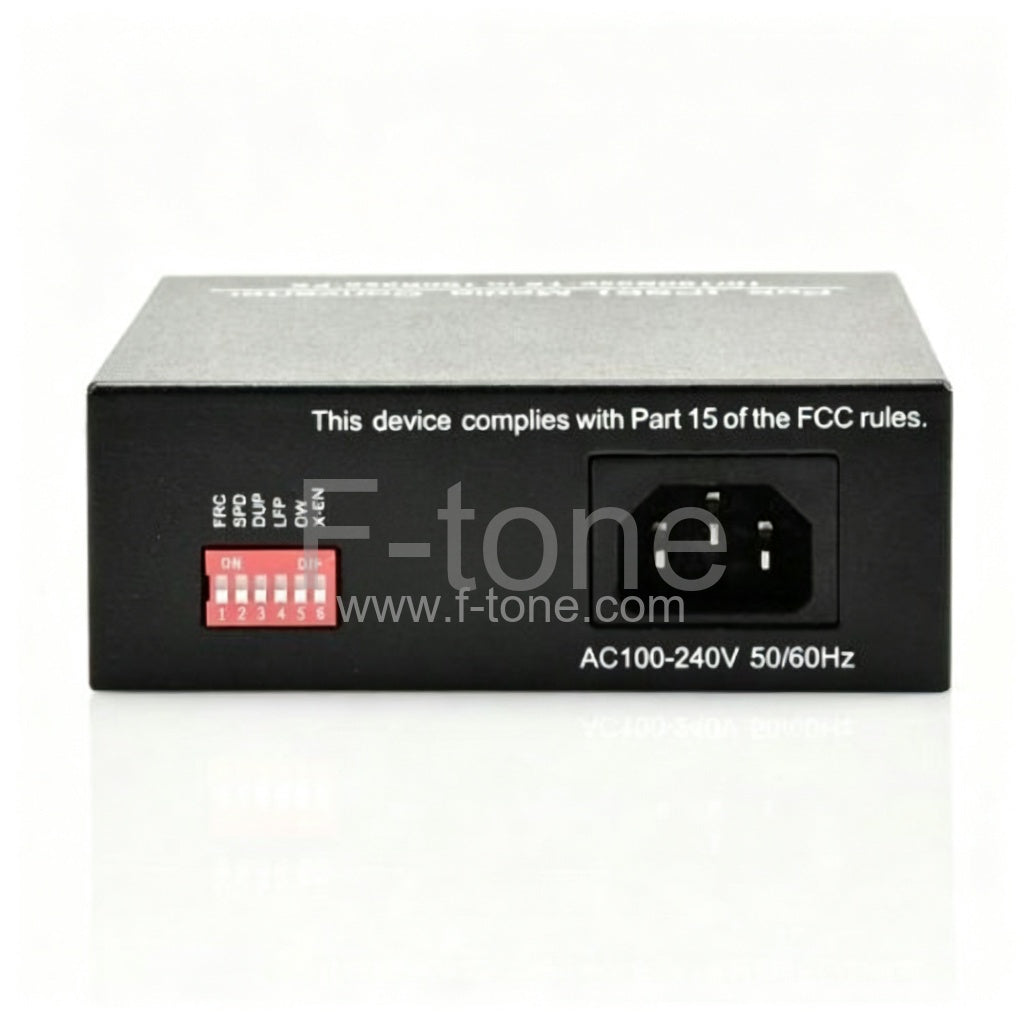

• Built-in power supply, without power adapter
• Support VLAN
• 48 VDC PSE output voltage
• PD Detection Signature
• Fault Protection Input
• Reliable and stable performance
• FCC Part 15 , Class A, Rosh and CE Mark
• Over-Current Protection & Under-Current Detection
• Supports Full/Half Duplex, auto-negotiation, Auto-MDI/MDIX on TX ports
• Provide switch configuration of half/full duplex transfer mode for FX port
• Fully complies with IEEE802.3 100Base-T, IEEE802.3u 10/100Base-SX/TX, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE 802.3z, IEEE 802.3ab standard

Applications:

1. Apply to ready to rise to 10M extended enterprise network bandwidth 1000M
2. Apply to images, voice and other multimedia data on an integrated transport network point
3. Applies to the computer signal transmission in need of the occasion widely used for computer data transmission network to meet a variety of business needs
4. Apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer with the switches and other computer network equipment can be combined to form:-chain, star, ring-type network and other computer networks.

Specifications

• UTP port: 1-ports RJ45
• UTP Rate: 10/100/1000Mbps
• Fiber Rate: 1000Mbps
• Fiber Port: Duplex SC, ST, FC available
• Fiber Wavelength: 1550nm
• Fiber Mode: Singlemode
• Distance: 100km
• Power Supply: Built-in
• UTP cable: Cat. 5/5e/6 UTP cable (the max distance up to 100m)

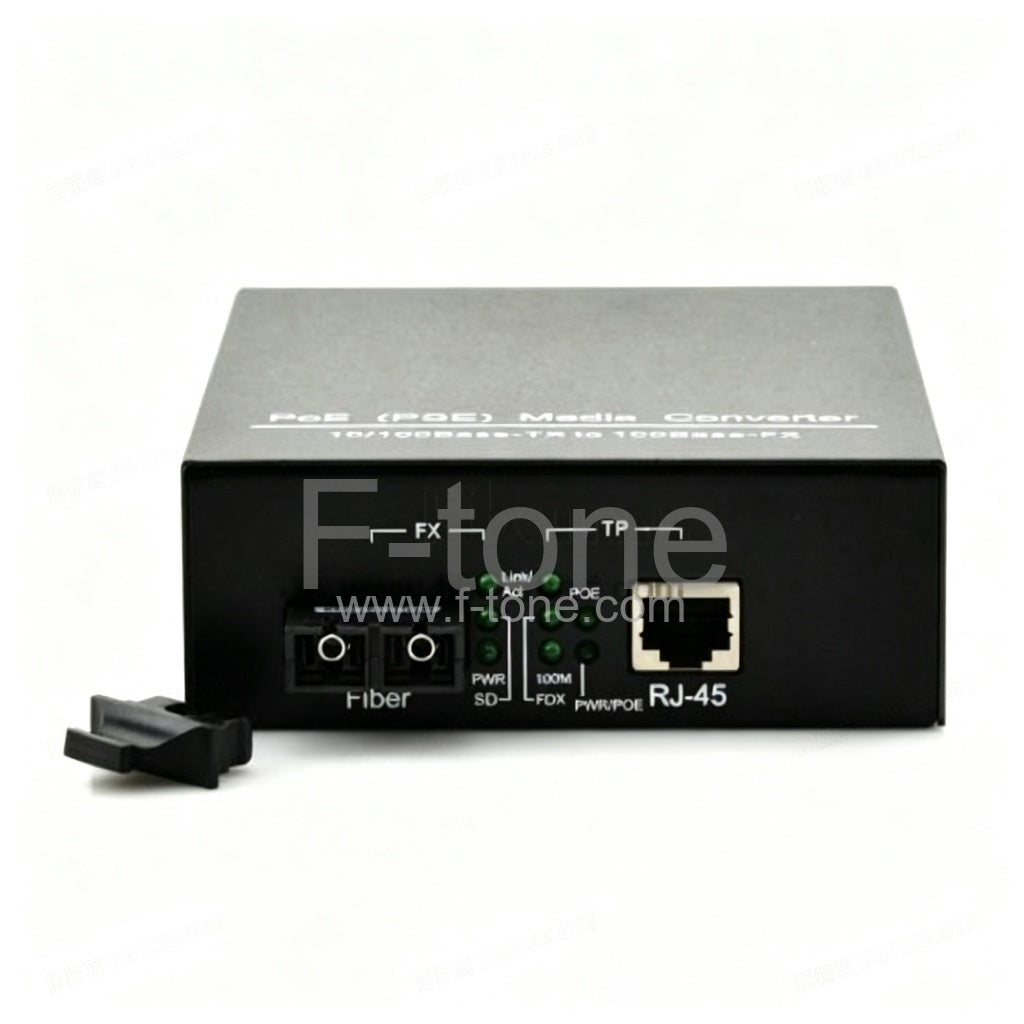

• Light Indicator: POW, FDX, TX Link /ACT, SPD, FX Link /ACT, FDX
• Operation Temperature: 0 ℃~50 ℃(Humidity: 5~90% non-condensing)
• Storage Environment: -40℃~+70℃ (Humidity: 5~90% non-condensing)

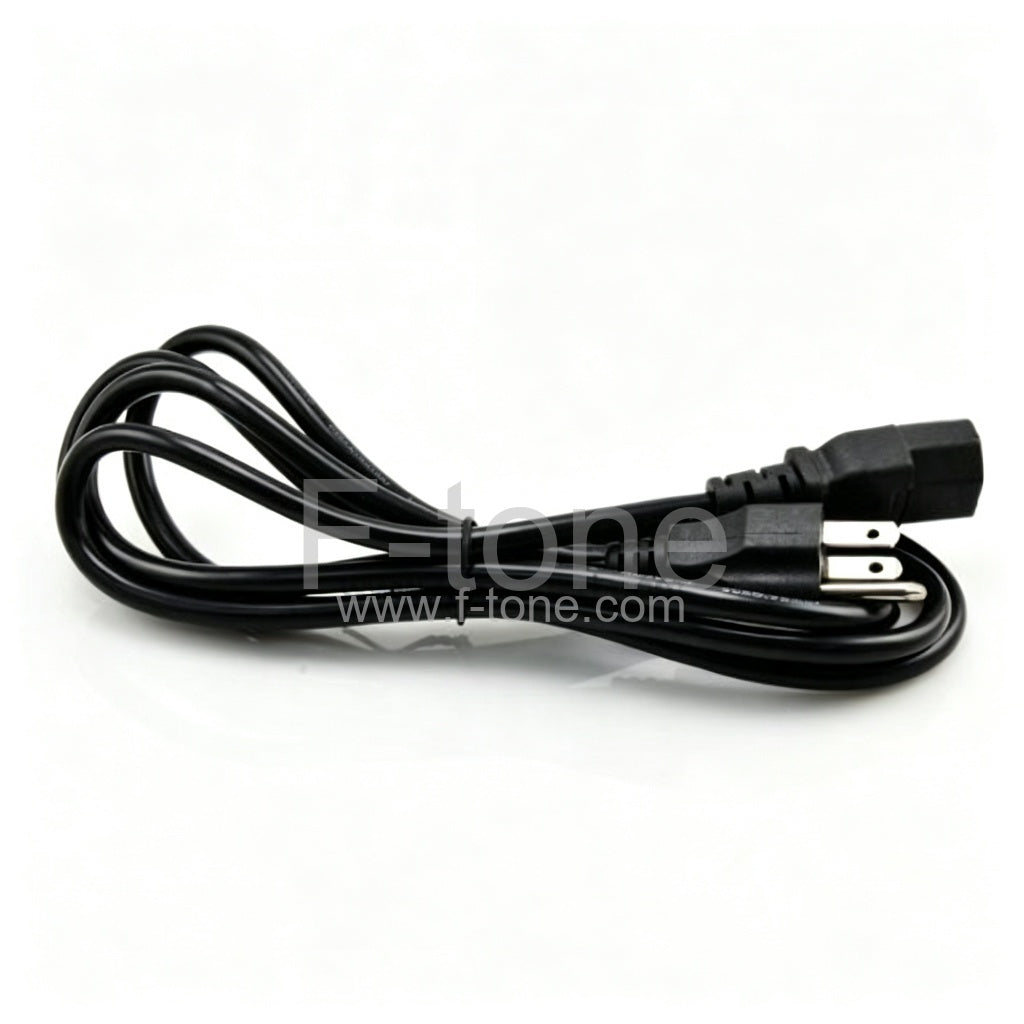

Note: External power supply is optional, please contact [email protected] for more details.

Label Customized

Note: Neutral and customized label are available per your requirements, please feel free to contact us at [email protected] for more details.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
