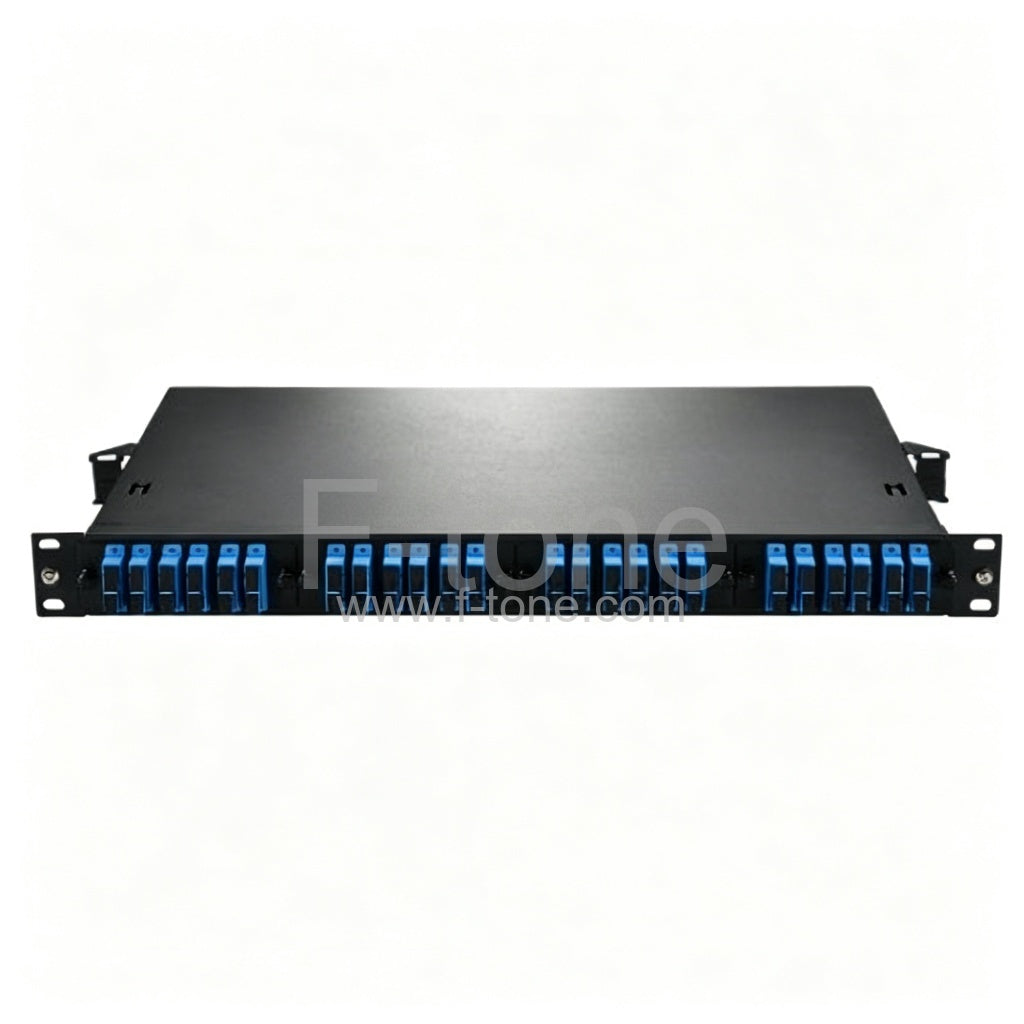

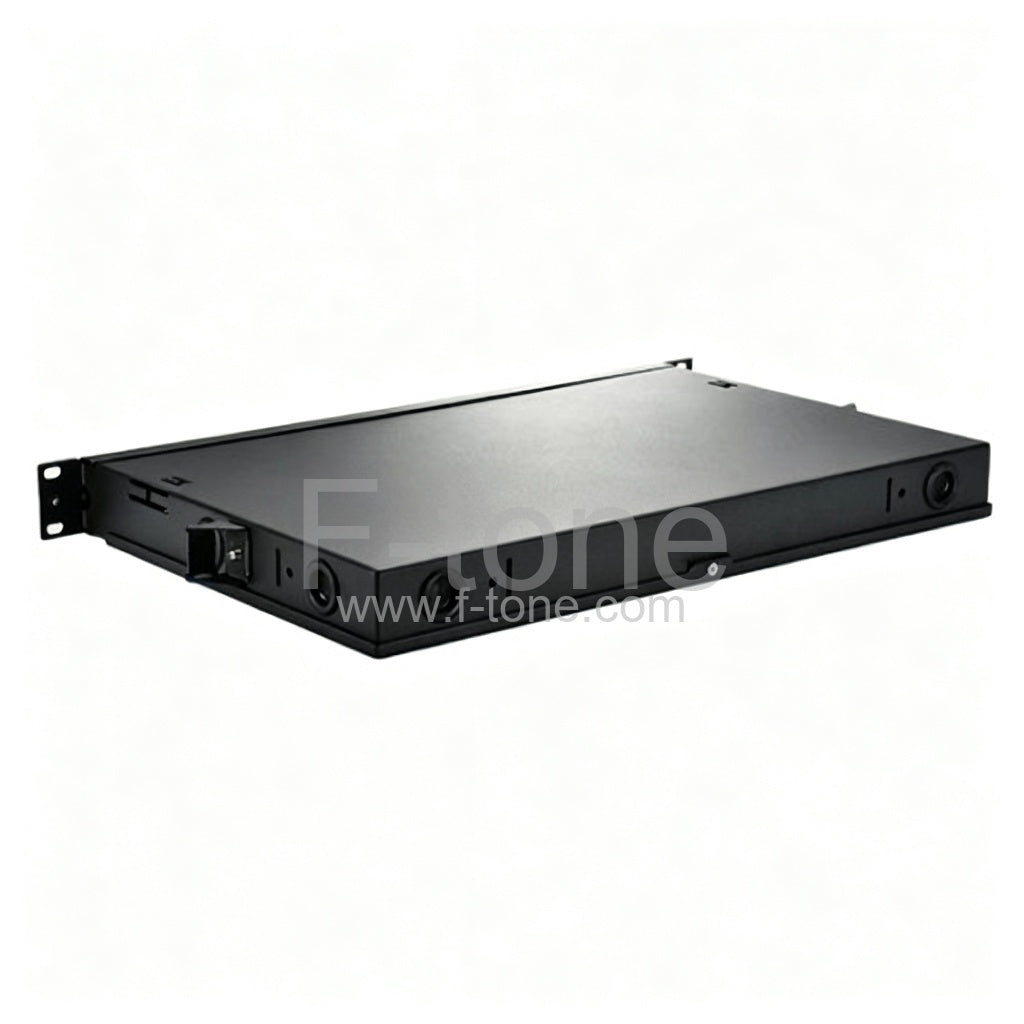

48 Ports Loaded SC FAPs 1RU Rack Mount Fiber Patch Panel Panduit FTT1 Compatible

Part Number: FTT1-4FAP-SCDX

48 Ports Loaded SC FAPs 1RU Rack Mount Fiber Patch Panel Panduit FTT1 Compatible

The rack mount fiber tray and fiber adapter patch panels shall house, organize, manage and protect fiber optic cable, F-tone provides a comprehensive line of fiber distribution enclosures that provide a flexible and modular system for managing fiber terminations, connections, and patching in all applications. The enclosures provide the highest fiber densities and port counts in the industry contributing to maximizing rack space utilization and minimizing floor space.Whether you select the rack enclosure empty or configured for your application, F-tone provides a durability enclosure as a perfect solution for the termination and distribution of Fiber for the professional.

Key Features

• Loaded with TIA/EIA-604 FOCIS-10 compliant adapters
• Exceed TIA/EIA-568-B.3 requirements

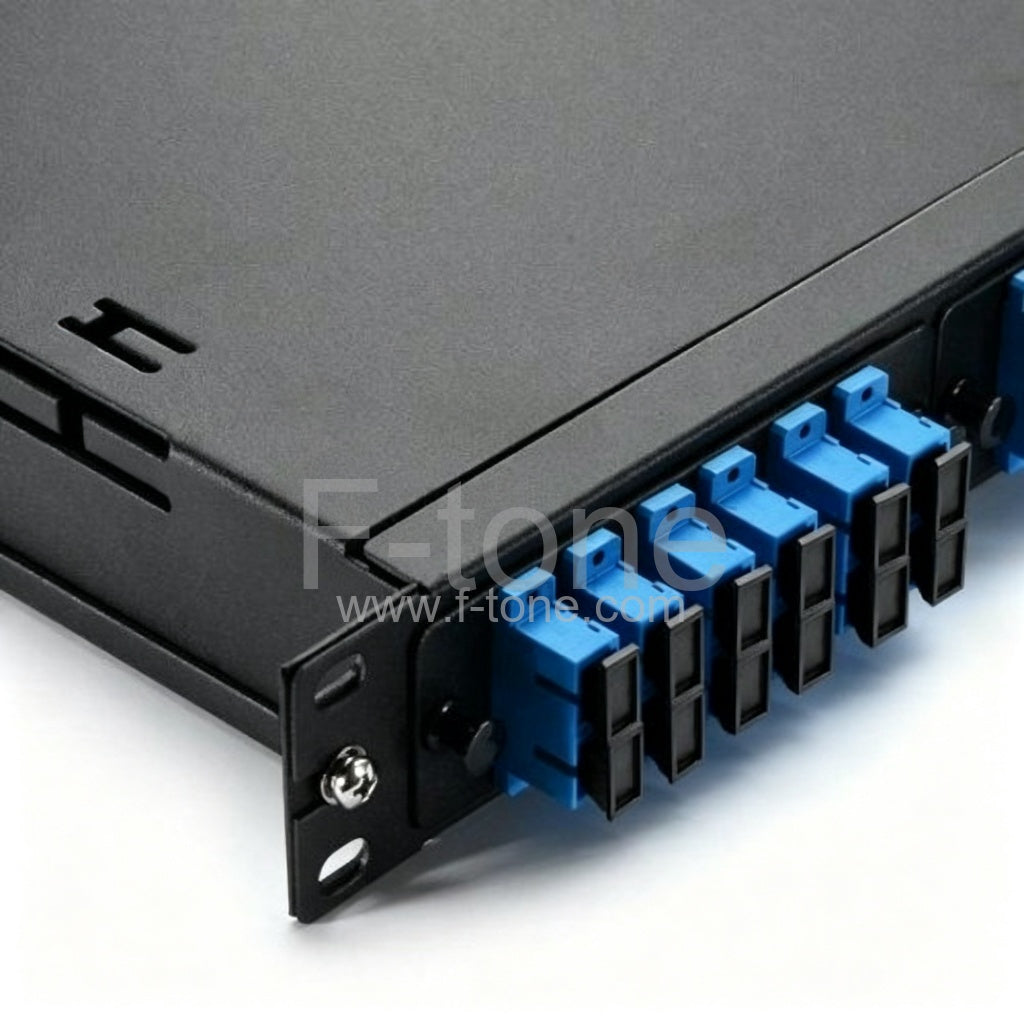

• SC fiber adapter panels are Sr./Jr. to conserve enclosure space
• Mount to standard EIA 19 " rack rails
• Steel construction with Black Powder Coating
• Latching options front and rear panels
• Provide higher patch field density in fewer rack units saving valuable space

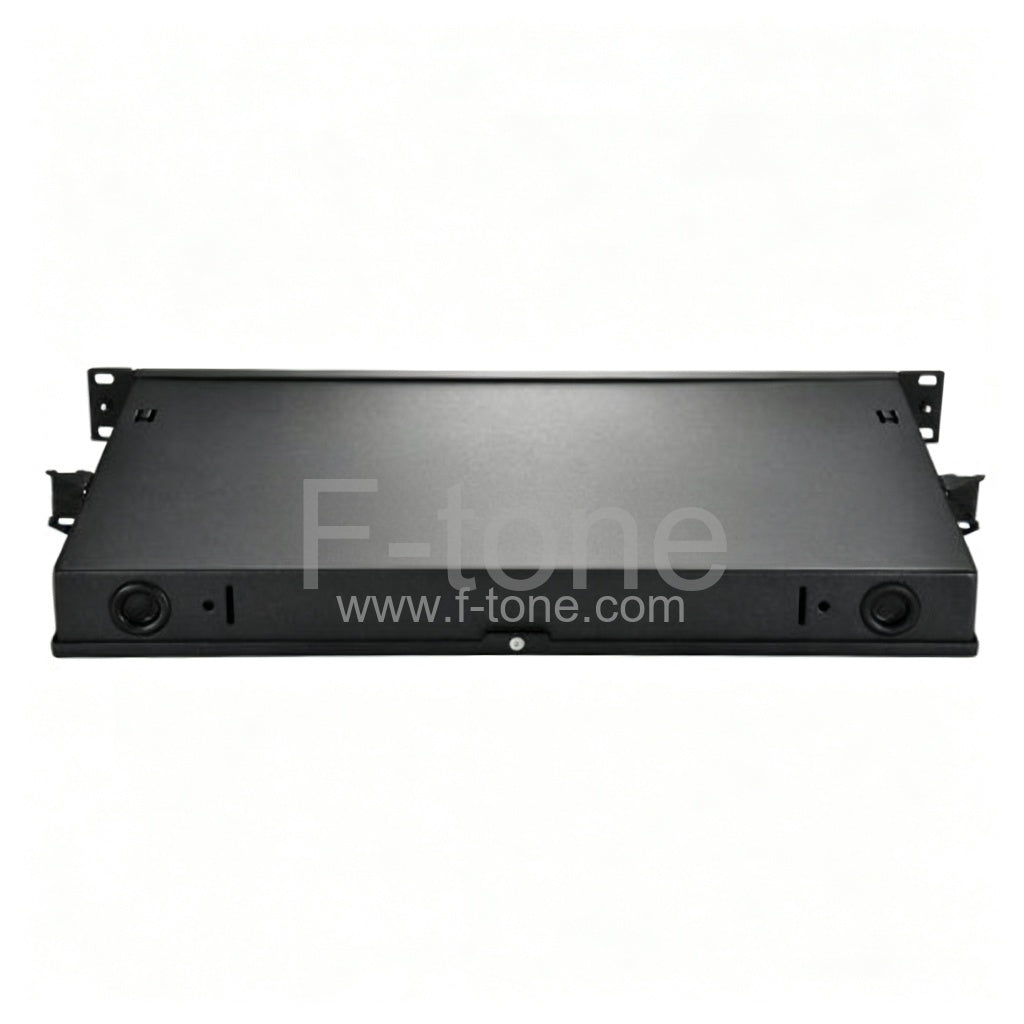

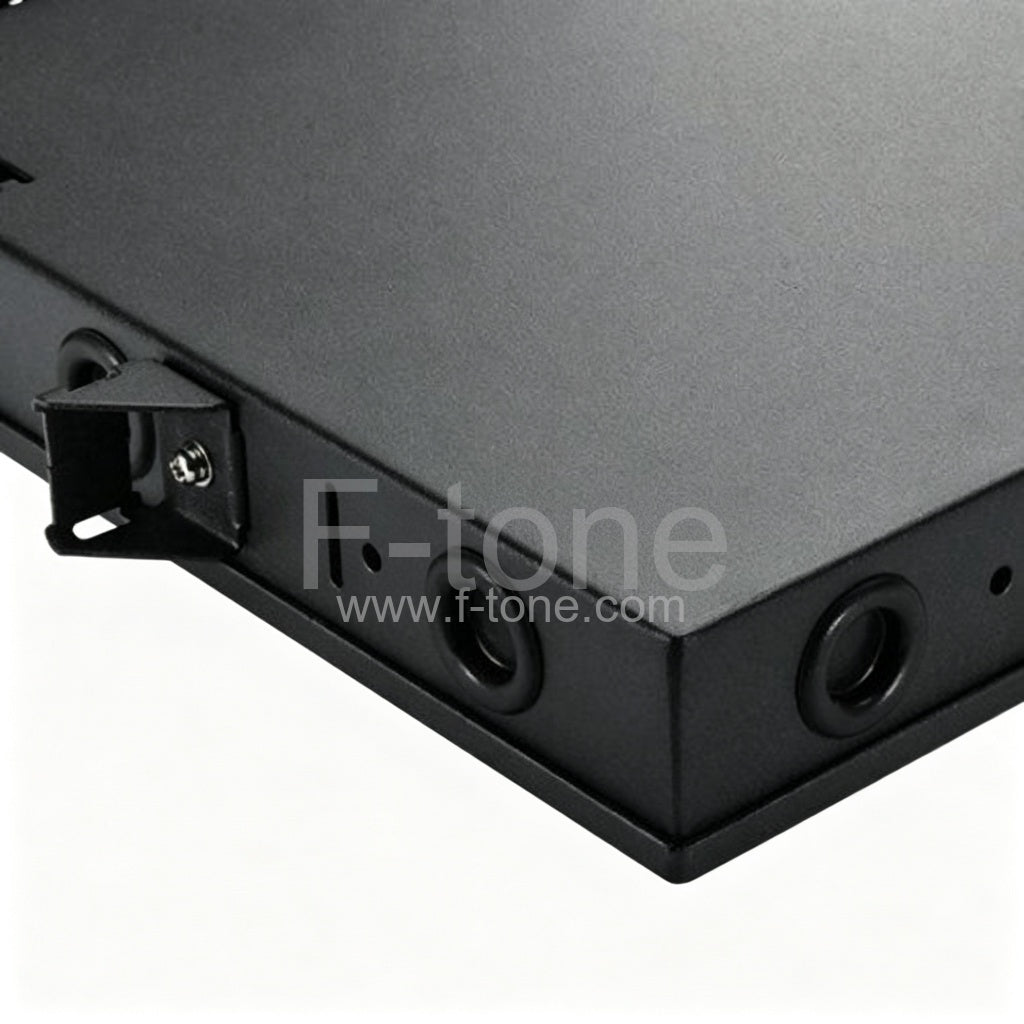

• Multiple trunk cable entry locations provided on rear and sides of enclosure
• Removable top cover provides access to connections, fibers, and slack storage in rear of tray
• Dimensions:1.77"H x 19.00"W x 11.16"D (44.9mm x 482.60mm x 283.4mm)

Applications

• Splice and fiber management in secure enclosures
• Rapid distribution through front patch panel
• Splice tray storage and distribution
• Handling of cross connect functions
• Telecommunications room
• Equipment room

Notes:

1.The price above is only for the tray, .More matched adapter panels, please see Panduit Compatible FAPs
2.The delivery time for customized products is approximately 2~3 weeks. For specific time, please contact us at [email protected]
3.Carton packing is as default, to order wooden cases for packaging, another $30 will be charged per box(6pc/box).

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
