Duplex FTTH Indoor Cable FRP G652D PVC

Duplex FTTH Indoor Cable FRP G652D PVC

Просмотреть всю информацию

Part Number: FTTH-FT002

Duplex FTTH Indoor Cable FRP G652D PVC

FTTH indoor cable is made up by optical communication unit, strengthen pieces and the sheath composition, that is put the optical communication unit in the centre, both sides parallel place two root non-metallic strengthen members (FRP) or metal strengthening component phosphating steel wire, finally squeeze the black color LSZH sheath into cable. Also, customers can specify your required connectors.

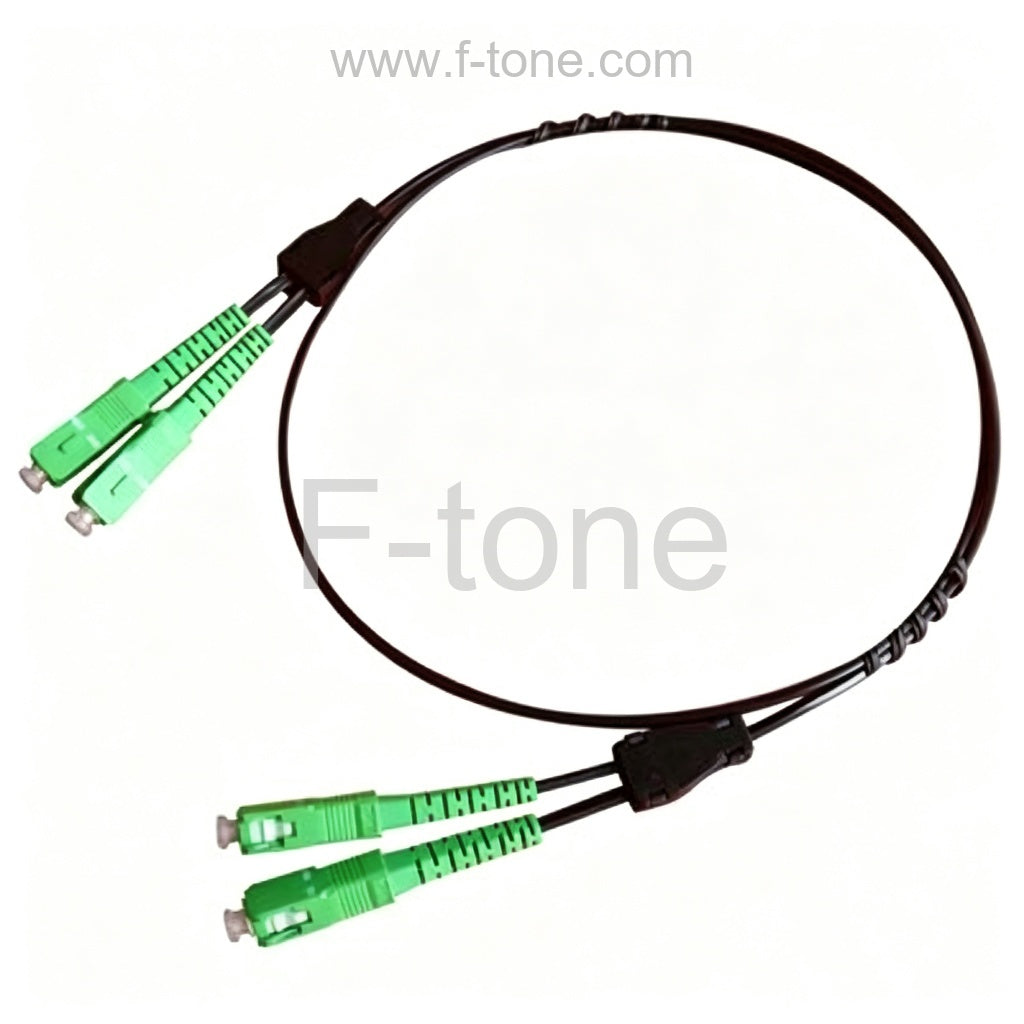

Note: This picture is for SC-SC SM DX FTTH Indoor Cable. Please just take it as a reference.

Key Features

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance
  • Low smoke zero halogen and flame retardant sheath

Applications

  • FTTH system
  • Indoor riser level and plenum level cable distribution
  • Interconnect between instruments, communication equipments

Specifications

Items Parameters
Cable diameter 2.0 x 3.0mm
Cable jacket material LSZH or PVC
Cable type SM:9/125
Wavelength SM-1310nm, 1550nm
Insertion loss(dB) ≤0.3dB
Return Loss(dB) ≤-50dB
Operating temperature(℃) -20 to +70
Storage Temperature(℃) -20 to +80


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
