SM 9/125 Duplex Fiber Patch Cable FTTH Drop Cable FRP G652D PVC

SM 9/125 Duplex Fiber Patch Cable FTTH Drop Cable FRP G652D PVC

Просмотреть всю информацию

Part Number: FTTH-FT006

Duplex SM 9/125 Fiber Patch Cable FTTH Drop Cable FRP G652D PVC

FTTH Drop cable is designed for last-one-mile in the fttx net-work, enhancing the accessiblility to the fibr and maximizes the instalation workability. FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology. Also, customers can specify your required connectors.

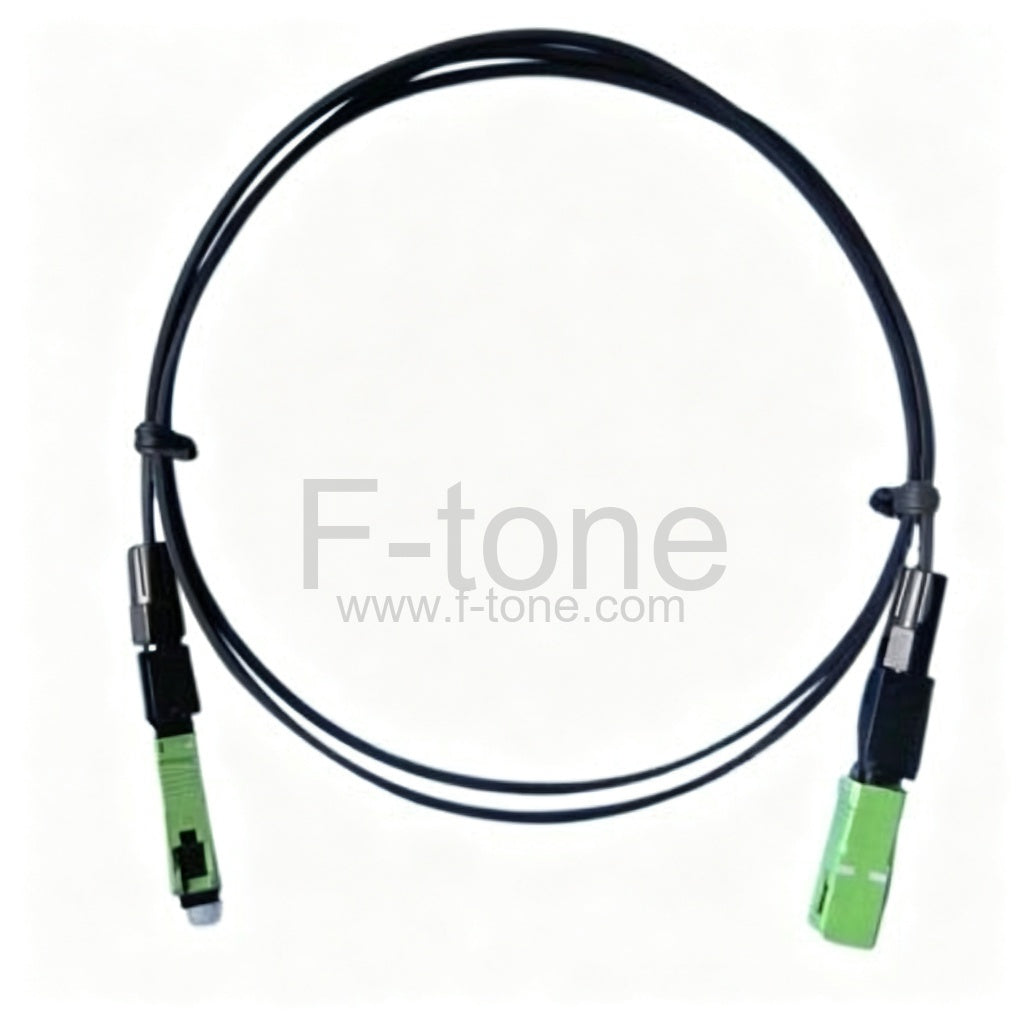

Note: This picture is for SC-SC SM SX FTTH Drop Cable. Please just take it as a reference.

Key Features

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
  • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance
  • Low smoke zero halogen and flame retardant sheath

Applications

  • Access network, FTTH (Fiber to the home)
  • Indoor cabling, and end users directly cabling
  • Access building cable

Specifications

Items Parameters
Cable diameter 2.0 x 3.0mm
Cable jacket material LSZH or PVC
Cable type SM:9/125
Wavelength SM-1310nm, 1550nm
Insertion loss(dB) ≤0.3dB
Return Loss(dB) ≤-50dB
Operating temperature(℃) -20 to +70
Storage Temperature(℃) -20 to +80




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
