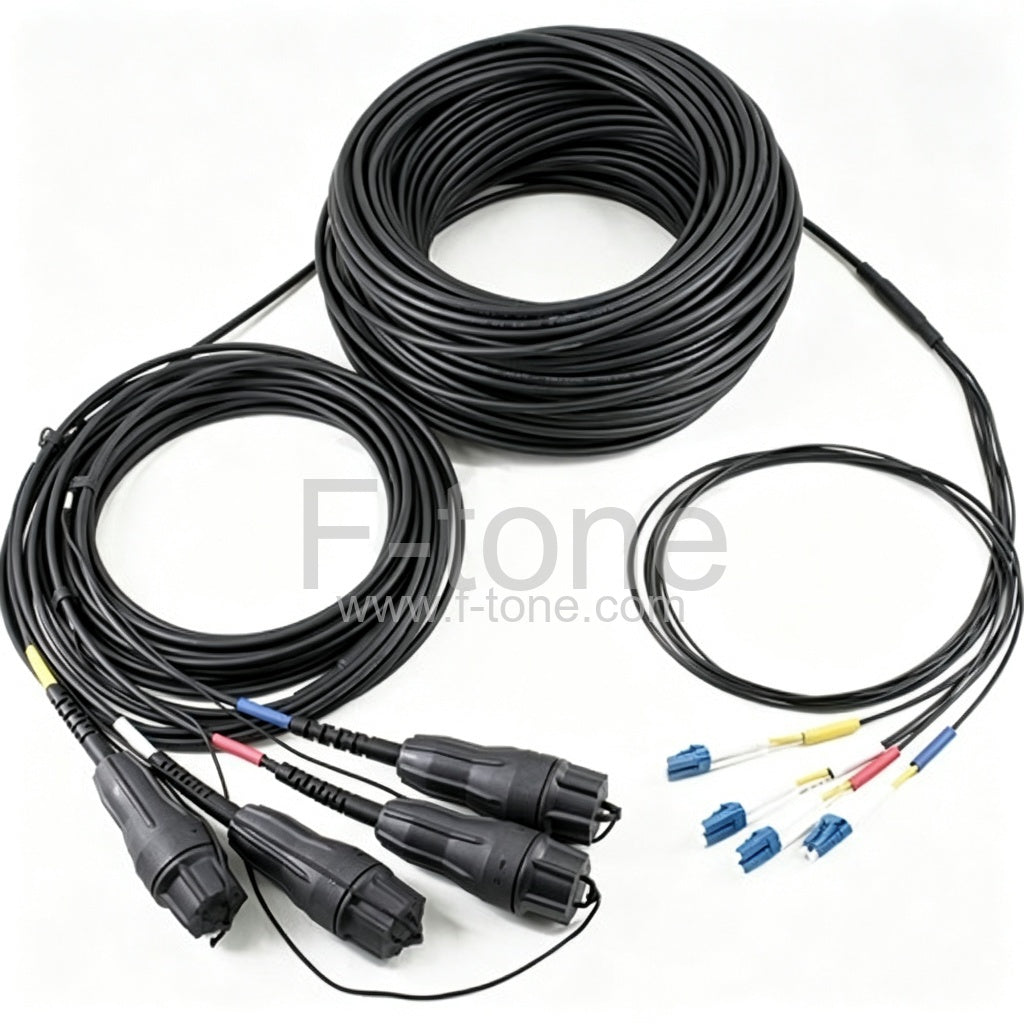

Customized Fullaxs-LC Duplex FTTA Fiber Patch Cable

Part Number: Fullaxs-LC-SM-DX-LSZH

Fullaxs-LC Duplex FTTA Fiber Patch Cable, Customized for your need.

FullAXS Fiber-to-the-Antenna Connector next generation WIMAX technology features a Long Term Evolution fiber to antenna connection design. This allows for the usage of strong cable assemblies on the outdoors.

Direct connections allow for the cable assembles through the bulkhead construction to be plugged directly into the optical transceivers. This accommodates a large Z tolerance, which allows the usage of the widest range of transceivers available on the market. End users now have the ability to choose from multiple transceivers.

Application:

Fiber-to-the-Antenna (FTTA)
WiMAX and LTE Base Stations
Remote Radio Heads (RRH)
Industrial outdoor applications
Robotics
Aerospace & Defense

Optical performance

1.Insertion loss / IEC 61300-3-34
2.singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB
3.multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d
Return loss / IEC 61300-3-6 singlemode ≥ 50 dB

FEATURES

-Open bulkhead for easy access to SFP
-Positive mechanical feedback to operator when fully mated
-One-hand mating
-Duplex LC interface
-Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
-Robust bayonet locking for easy, fast, and secure mating
-Multimode and single mode
-Water proof, dust proof and corrosion resistant
-Expansion to RJ45 and Power possible
-Plug has tolerance free design, fully free floating on Z-axis
-No Cable buckling during or after installatoin
-Cost effective metal die cast bulkhead
-Field installable version available

MECHANICAL

-Designed to meet 150 N cable retention
-Designed to meet IP67
-LC interface
-Single-and Multimode
-Adapter footprint : 36mm x 36mm

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
