12 Fibers OM1 Multimode Multi-Core Tight Buffered LSZH Distribution Indoor Cable-GJFJV

12 Fibers OM1 Multimode Multi-Core Tight Buffered LSZH Distribution Indoor Cable-GJFJV

Просмотреть всю информацию

Part Number: GJFJV-12A1bL-G

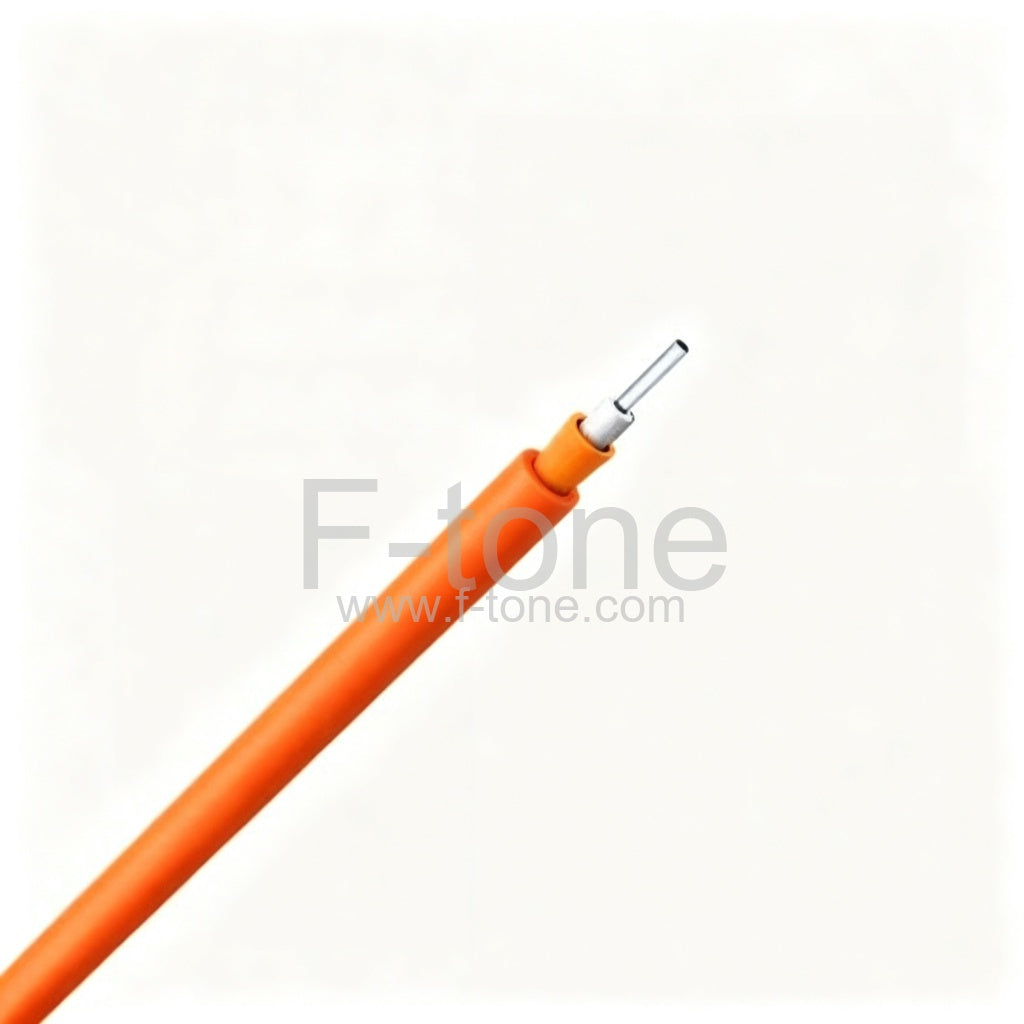

12 Fibers 62.5/125μm Multimode Multi-Core Tight Buffered LSZH Distribution Indoor Cable-GJFJV

This kind of GJFJV cable is ideal for indoor cabling, and interconnect between equipment.

GJFJV cable support 4 ~ 24 fiber cores, the fiber cable with LSZH outer sheath, and the tight buffer fiber warped by Kevlar. The Kevlar yarn material ensure a good performance of tensile strength. And the flame retardant outer jacket could be used in LSZH environment.

Item Details

  • Fiber Count: 12 Fibers
  • Fiber Type: 62.5/125μm Multimode
  • Flame Rating: LSZH

Cable Structure

Features
  • Soft, flexible, easy to splice, and with big capacity data transmission.
  • The flame retardant outer jacket could be used in LSZH environment.
  • Kevlar yarn material ensure a good performance of tensile strength.
  • 900µm tight buffer protect the fiber well.
Application
  • Indoor cabling and distribution
  • Interconnection of fiber optic equipment, especially ODF
  • Used in patch cords and pigtails

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Cable Count Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （KG) short term long term short term long term short term long term （℃）
4 4 25 600 200 1000 200 20D 10D -20～+60
6 4 26 600 200 1000 200 20D 10D -20～+60
8 5 32 600 200 1000 200 20D 10D -20～+60
10 5.5 35 600 200 1000 200 20D 10D -20～+60
12 6 38 600 200 1000 200 20D 10D -20～+60
24 8 60 600 200 1000 200 20D 10D -20～+60

G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
