Part Number: GJFJV-24A1L-A

LSZH Indoor Distribution Round Tight Buffered Multi-Core OM2 Multimode Fiber Optic Cable, 24 Fibers

The LSZH cable is stringently tested to IEC and VDE standards to ensure peace of mind when installing these cables where human life or valuable property are exposed to a high risk of fire hazards. This cable is ideal for indoor cabling, and interconnection between equipment.

The cable support 4 ~ 24 fiber cores, the fiber cable with LSZH outer sheath, and the tight buffer fiber wrapped by Kevlar. The Kevlar yarn material ensure a good performance of tensile strength. And the flame retardant outer jacket could be used in LSZH environment.

Item Details

  • Fiber Count: 24 Fibers

  • Fiber Type: 50/125μm Multimode OM2

  • Flame Rating: LSZH

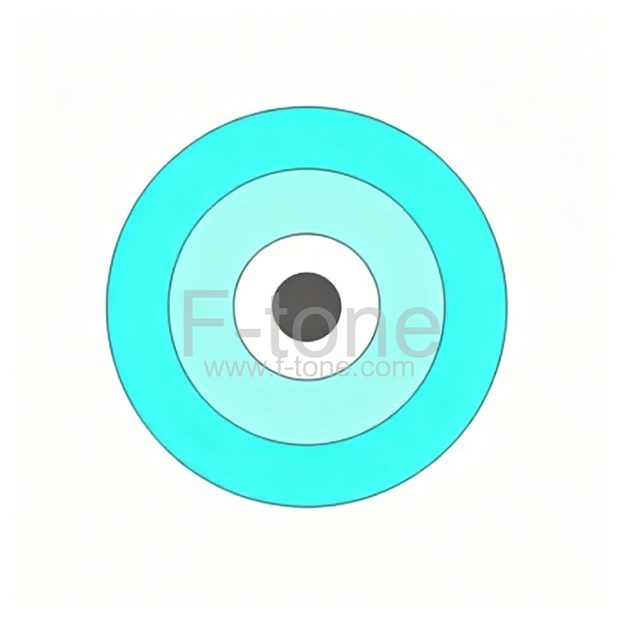

Cable Structure

Features
  • Soft, flexible, easy to splice, and with big capacity data transmission.
  • Good mechanical and environmental properties.
  • LSZH fiber optic cable jacket is more fire-resistant compared with common PVC jacketed cables.
  • Kevlar yarn material ensure a good performance of tensile strength.
  • 900µm tight buffer protect the fiber well.
Application
  • Indoor cabling and distribution
  • Interconnection of fiber optic equipment, especially ODF
  • Used in patch cords and pigtails

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Out Sheath
Diameter		 Fiber
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （µm) (KG) short term long term short term long term short term long term （℃）
2 3 0.9 18 600 200 1000 200 20D 10D -20～+60
4 4 0.9 25 600 200 1000 200 20D 10D -20～+60
6 4 0.9 26 600 200 1000 200 20D 10D -20～+60
8 5 0.9 32 600 200 1000 200 20D 10D -20～+60
10 5.5 0.9 35 600 200 1000 200 20D 10D -20～+60
12 6 0.9 38 600 200 1000 200 20D 10D -20～+60
24 8 0.9 60 600 200 1000 200 20D 10D -20～+60


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
