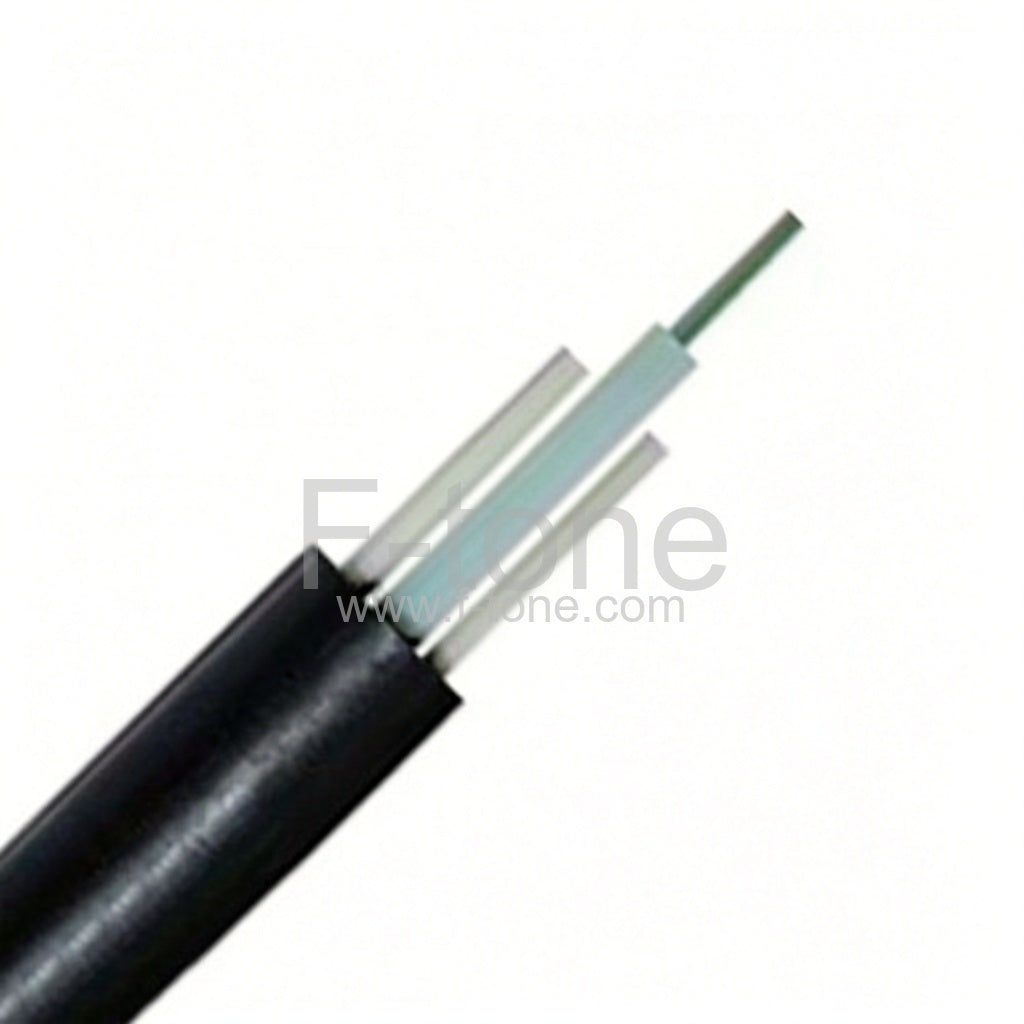

6 Fibers 50/125μm Multimode Single Jacket Loose Tube FRP Strength Member Outdoor Cable - GYFXTY

6 Fibers 50/125μm Multimode Single Jacket Loose Tube FRP Strength Member Outdoor Cable - GYFXTY

Просмотреть всю информацию

Part Number: GYFXTY-6A1

GYFXTY Loose Tube FRP Strength Member Single Jacket Outdoor Optical Cable, 6 Fibers 50/125μm Multimode

These central loose tube optical fiber cables are suitable for installation in aerial, The tube is covered with a layer of aramid yarn as strength member to ensure tensile strength. It is especially suitable for the electromagnetic interfering places because of the non-metal strength member.

Non-metal strength has an excellent anti-electromagnet ability. Loose tube filled with special grease, provide key protection for the fiber. The tube are filled with a water-resistant filling compound to improve the waterproof ability. The cable is completed with a single polyethylene (PE) sheath.

Item Details

  • Fiber Count : 6 Fibers

  • Strength Member Materials: FRP

  • Fiber Type: 50/125μm Multimode

  • Outer Sheath: PE (Default)

Cable Structure

Features
  • Good mechanical and temperature resistant performance.
  • Low dispersion and attenuation.
  • Small diameter, light weight, easy installation.
  • The centrally-situated loose tube minimizes the influence of lateral crush.
  • Two parallel non-metal strength has an excellent anti-electromagnet ability.
  • PE sheath have good ultraviolet radiation resistance.
Application
  • Laying modes: Aerial
  • Electromagnetic interfering places
  • Trunk power transmission system
  • Access network and local network

Package

Package 1
Package 2
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.

Mark


Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart



Cable Count Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （KG) short term long term short term long term short term long term （℃）
2 7.2 75.00 1200 1500 600 300 20D 10D -40+60
4 7.2 75.00 1200 1500 600 300 20D 10D -40+60
6 7.2 75.00 1200 1500 600 300 20D 10D -40+60
8 7.2 75.00 1200 1500 600 300 20D 10D -40+60
10 7.2 75.00 1200 1500 600 300 20D 10D -40+60
12 7.2 75.00 1200 1500 600 300 20D 10D -40+60


G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
