Part Number: HPIS-1064-2

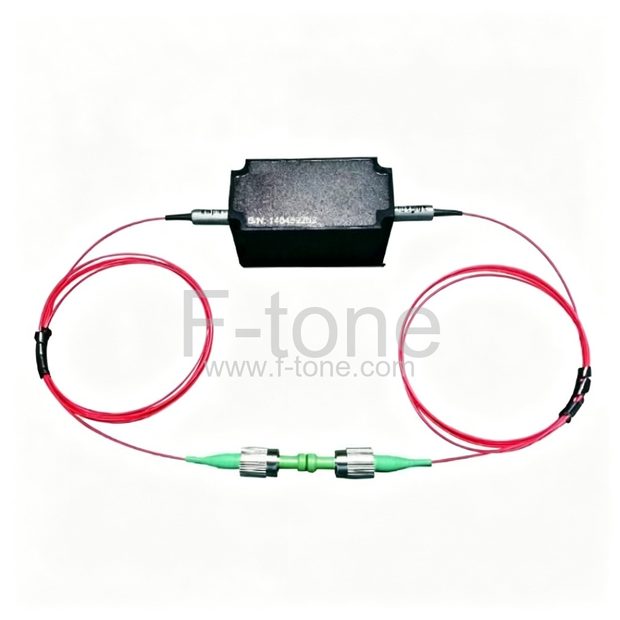

High Power Isolator 2W 1064nm HPIS

Features

  • Low Insertion Loss
  • High Return Loss
  • High Isolation
  • High stability
  • High Reliability

Applications

  • Optical Fiber Amplifiers
  • Testing Instrumentations
  • Fiber Sensor
  • Fiber Lasers
  • Lab Research


Picture Details

Package Dimensions

Ordering Information


HPIS/HPPMIS-1030-234567-88
1064 Center Wavelength: 1064=1064nm
2 Axis alignment F=Slow axis working Fast axis blocked, B=Both of axis working, N=No axis
3 Fiber type 0=PM Panda fiber, 1=SMF-28e, 2=Hi1060
4 Pigtail type: 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube
5 Fiber length: 0=0.8m,1=1m
6 Package Dimension: 0=81*34*33mm, S=Specified
77 Handling Power 01=1W, 02=2W,......,05=5W,......, 20=20W



Parameters Unit Value
Type - HPIS HPPMIS
Center Wavelength nm 1064
Operating Wavelength Range nm ±20
Typ. Peak Isolation at 23℃ dB 32~40
Isolation at 23℃ dB 25
Typ. Insertion Loss at 23℃ dB 0.6
Max. Insertion Loss at 23℃ dB 1
Max.PDL at 23℃ dB 0.15 /
Extinction Ratio at 23℃ Fast axis blocked dB / 23
Both of axis working dB / 20
Min. Return Loss(Input/Output) dB 50
Max. Optical Power CW W 1, 2, 3, 5, 10, 20 or specify
Pulse Peak kW 10
Max. Tensile Load N 5
Fiber Type - HI 1060 fiber or specify PM980 fiber or specify



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
