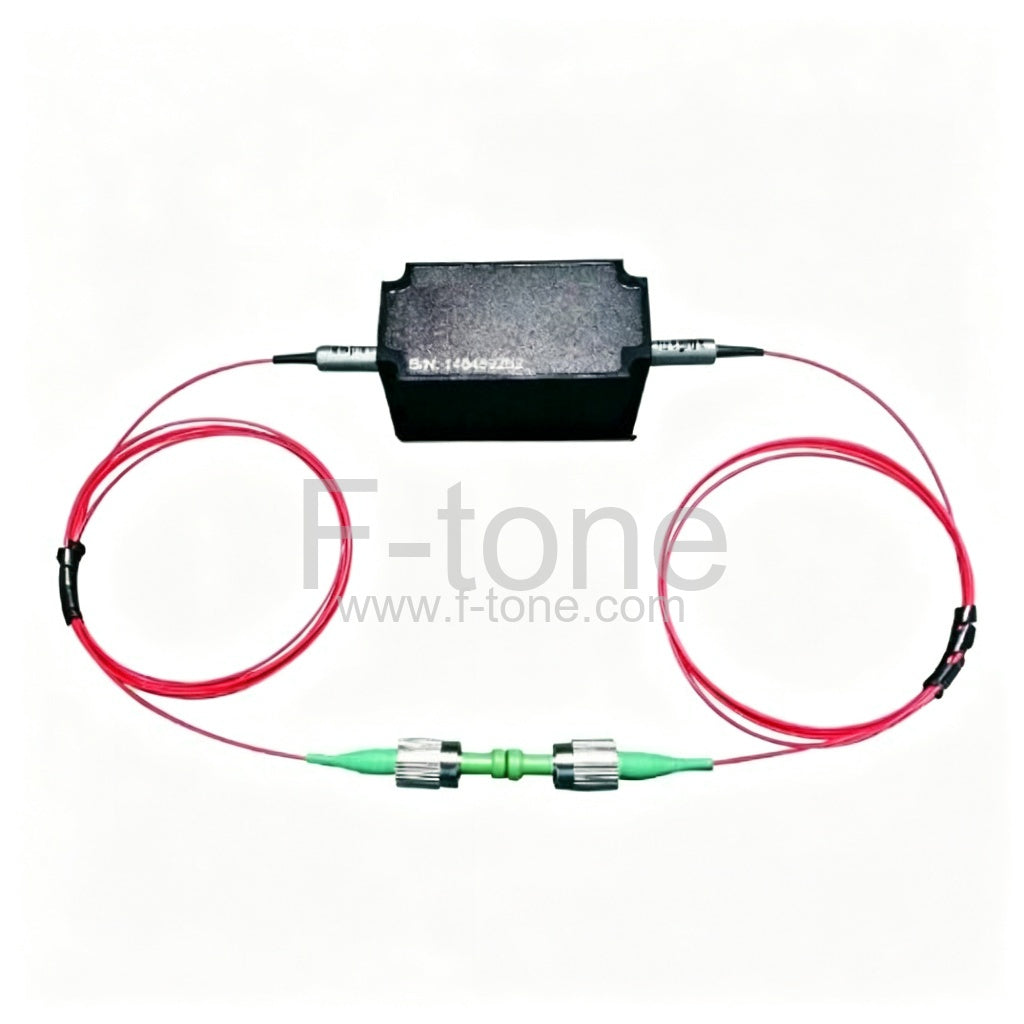

10W 1064nm High Power Polarization Insensitive Isolator HPPII

10W 1064nm High Power Polarization Insensitive Isolator HPPII

Просмотреть всю информацию

Part Number: HPPII-1064-10

Insensitive High Power Polarization Isolator 10W 1064nm HPPII

The F-tone's 1064nm High Power Polarization Insensitive Circulator is characterized with low insertion loss, high isolation, high power handling, high return loss. It is ideal for fiber laser and instrumentation applications.

Characteristics

  • Low insertion loss
  • High Return Loss
  • High Power Handling
  • High Isolation

Applications

  • Fiber Amplifier
  • Fiber sensor
  • Instrumentation
  • Lab Research


Specifications

Parameters Unit Values
Center Wavelength nm 1064 or Specify
Operating Wavelength Range nm ±10
Typ. Peak Isolation dB 32~40
Min. Isolation at 23℃ dB 26
Typ. Insertion Loss at 23℃ dB 0.6
Max. Insertion Loss at 23℃ dB 1
Min. Return Loss (input/output) dB 50/50
Max. Polarization Dependent Loss dB 0.15
Max. Optical Power(CW) W 1, 3, 5, 10, 20
Max. Tensile Load N 5
Fiber Type HI 1060 Fiber or LMA Fiber
Operating Temperature ℃ -5 ～+50
Storage Temperature ℃ -20～+75

Dimension


Order Information

HPPII Wavelength Handing Power Pigtail Type Fiber Type Connector Type on in&out Fiber Length
HPPII-1064-10 1=1064nm
S=Specify		 1=1W
2=5W
3=10W
4=20W
100=100W
S=Specify		 1=900um Loose Tube
2=3mm Loose Tube
S=Specify		 1=HI1060 fiber
2= LMA fiber
S=Specify		 N=None
S=Specify		 1=0.8m
S=Specify





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
