Part Number: HPPII-1064-100

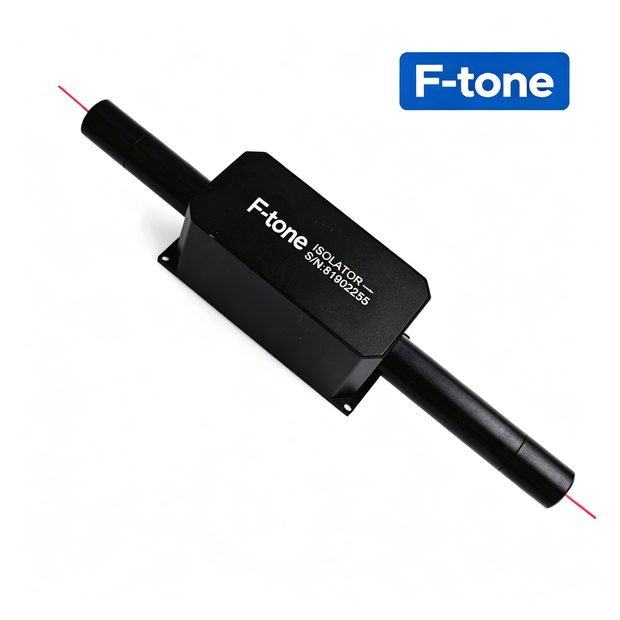

Insensitive High Power Polarization Isolator 100W 1064nm HPPII

The F-tone's 1064nm High Power Polarization Insensitive Circulator is characterized with low insertion loss, high isolation, high power handling, high return loss. It is ideal for fiber laser and instrumentation applications.

Characteristics

  • Low insertion loss
  • High Return Loss
  • High Power Handling
  • High Isolation

Applications

  • Fiber Amplifier
  • Fiber sensor
  • Instrumentation
  • Lab Research

Specifications

Parameters Unit Values
Center Wavelength nm 1064 & 1080
Operating Wavelength Range nm ±10
Typ. Peak Isolation dB 35
Min. Isolation in Band (at 25℃) dB 25
Typ.Insertion Loss dB 0.8
Max. Insertion Loss (at 25℃) dB 1.2
Max. Polarization Dependent Loss dB 0.2
Max. Peak Plwer kW 100 200
Max. Optical Power(CW) W 50 100 150
Min. Return Loss dB 50
Fiber Type - 20/400 DC Fiber or Specify
Tensile Load N 5
Operating Temperature ℃ 0 ~ +50
Storage Temperature ℃ -20～+75

Dimension

Order Information

Item Wavelength Optical Power Fiber Type Package Dimensions Output Beam Diameter Fiber Jacket on Input & Length (A) Fiber Length Connector Type on in&out
HPPII-1064-100 1=1064
08=1080nm
S=Specify		 100=100W
S=Specify		 1=HI1060 fiberr
2= LMA fiber
S=Specify		 C–Circle Type
Q–Quadrate Type		 08=8mm
S=Specify		 L–900um Loose Tube Fiber
C–3mm Loose Cable
S–Specify		 1=1m
S=Specify		 N=None
S=Specify




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
