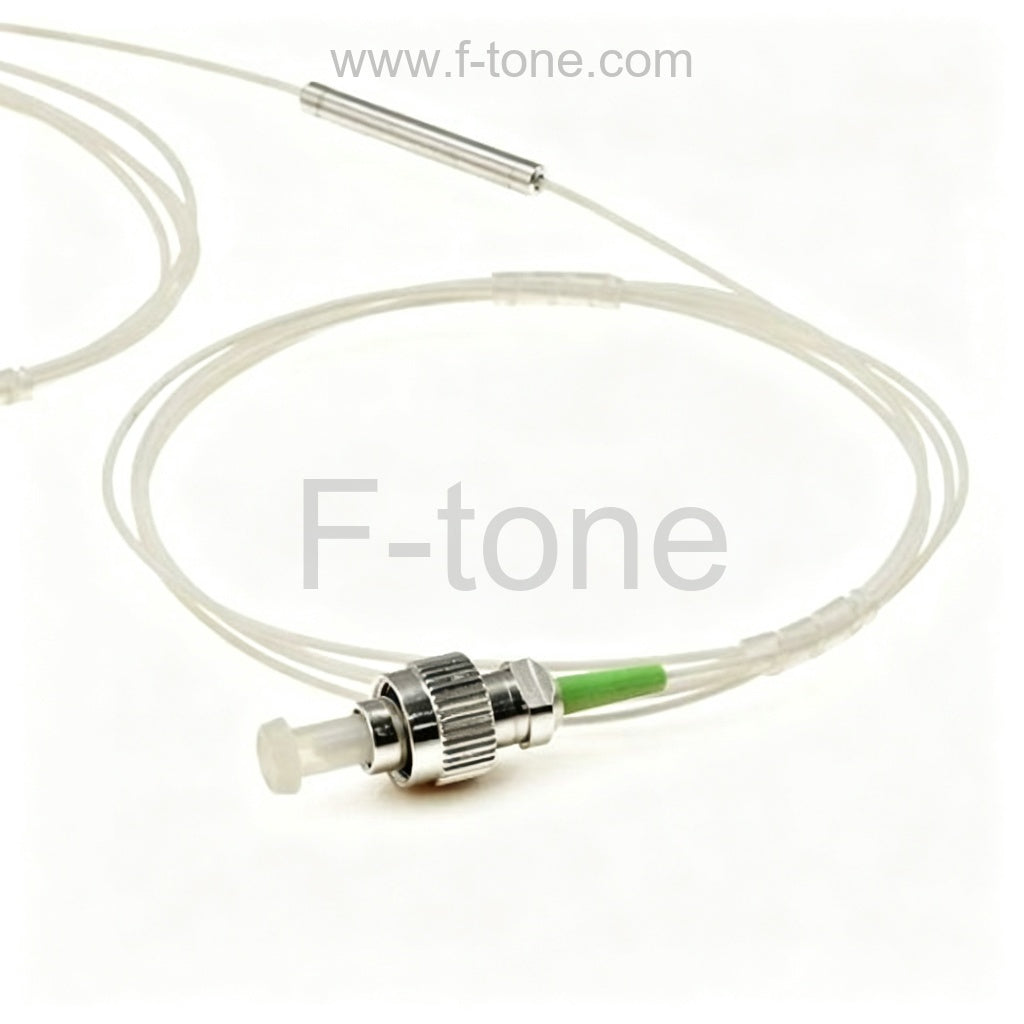

FC/APC 1064nm 900um Single Grade Polarization Maintaining Isolator

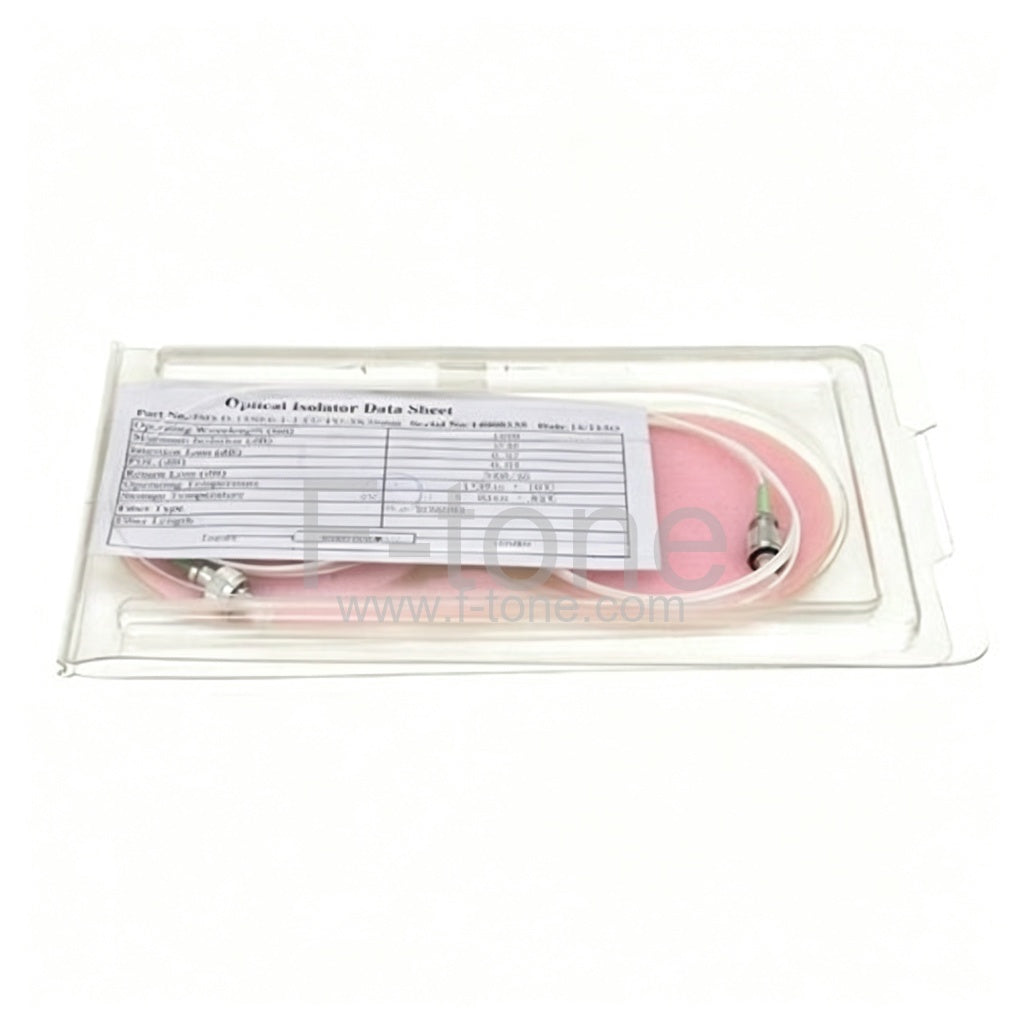

FC/APC 1064nm 900um Single Grade Polarization Maintaining Isolator

Просмотреть всю информацию

Part Number: HPPMIS-FCA-64-S-1

Polarization Maintaining Isolator Single Grade 1M FC/APC 1064nm 900um

The High Power Isolator series products include high power isolator and high power collimator.The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc.1310/1550nm/1064nm High Power Polarization Maintaining Isolator is one of in-line type isolator.They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.

Characteristics

  • Low insertion loss
  • Low Extinction Ratio & High Isolation
  • High stability and reliability

Applications

  • EDFA
  • Fiber sensor
  • Fiber Optical Instrument
  • Fiber Laser

Specifications

Type Single Grade Dual Grade
Parameter
Type P P
Parameter
Operating Wavelength (nm) 1064
Bandwidth (nm) ±20
Peak isolation (dB) 42 58
Isolation (at 23℃) (dB) ≥28 ≥48
Typ. Insertion Loss (at 23℃) 0.4 0.5
Insertion Loss (at-5 ~ +70 ℃) ≤0.55 ≤0.65
Extinction
Ratio (dB)		 Type B ≥20 ≥20
(Both of axis working)
Extinction
Ratio (dB)		 Type F ≥22 ≥22
(Fast axis blocked)
Return loss (Input/Output) (dB) ≥55
Power handling (mW) ≤300
Fiber Type Panda Fiber
Operating temperature (℃) -5~+70
Storage temperature (℃) -40 ~ +80
Dimensions (mm) φ5.5×L35
Above specifications are for devices without the connectors.
For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
The PM fiber and the connector key are aligned to the slow axis

Dimension

Order Information

PMIS Wavelength Isolator
Grade		 Parameter
Grade		 Axis
Alignment		 Pigtail
Type		 Length Connector
PMIS 1064=1064nm S= Single stage
D = Dual Stage






 P

F=Fast Axis Blocked
B=Both Axis Working
S=Slow axis working





 250=250um bare fiber
900=900um loose tube
3.0=3.0mm loose tube
2.0=2.0mm loose tube

 0.25meter=Q
0.5meter= H
1.0meter=1
1.5meter= 5
2.0meter=2
0.8meter=8
0.75meter=A
XX=Other
 0=None
1=FC/UPC
2=FC/APC
3=SC/APC
4=SC/UPC
5=MU
6=LC/PC
7=LC/APC
8=E2000
APC
9=E2000 PC




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
