Part Number: HWD1315-L-91X

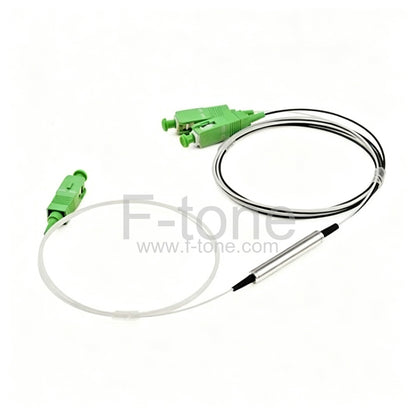

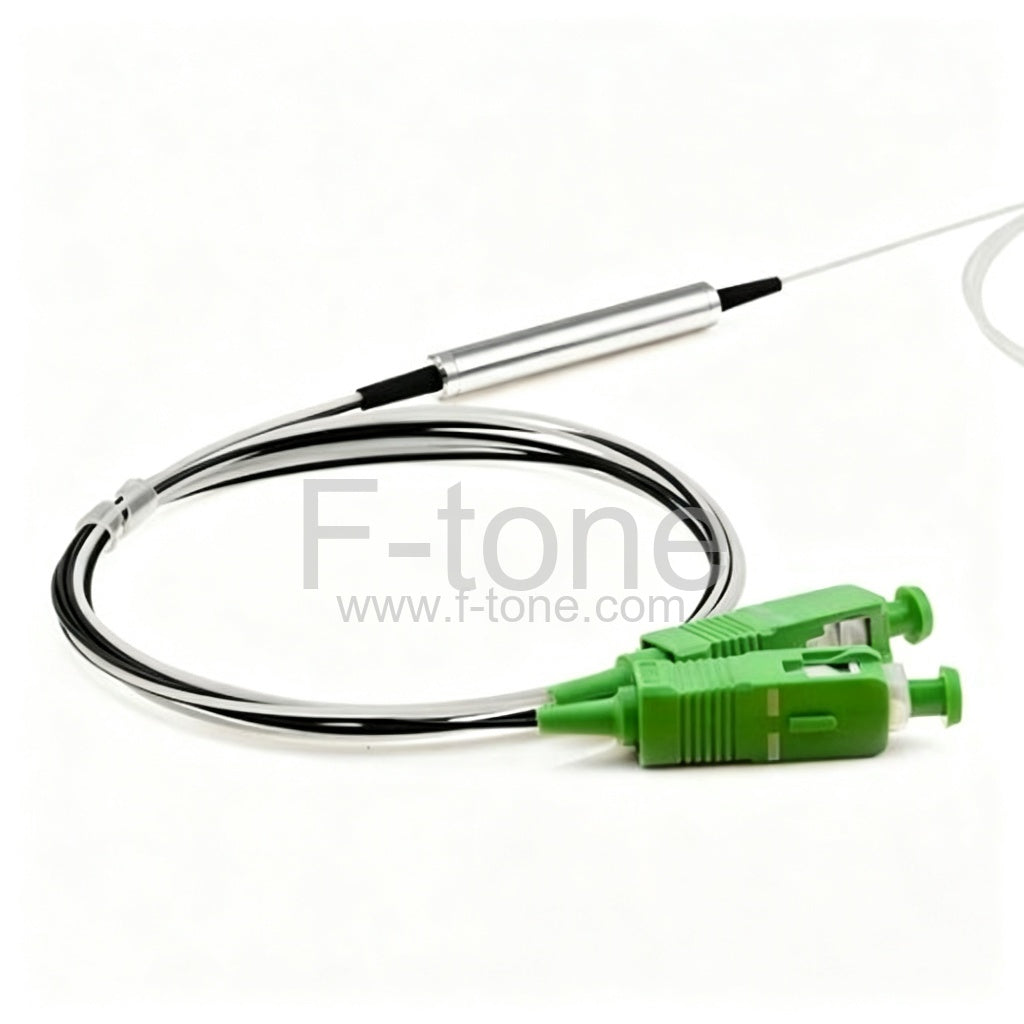

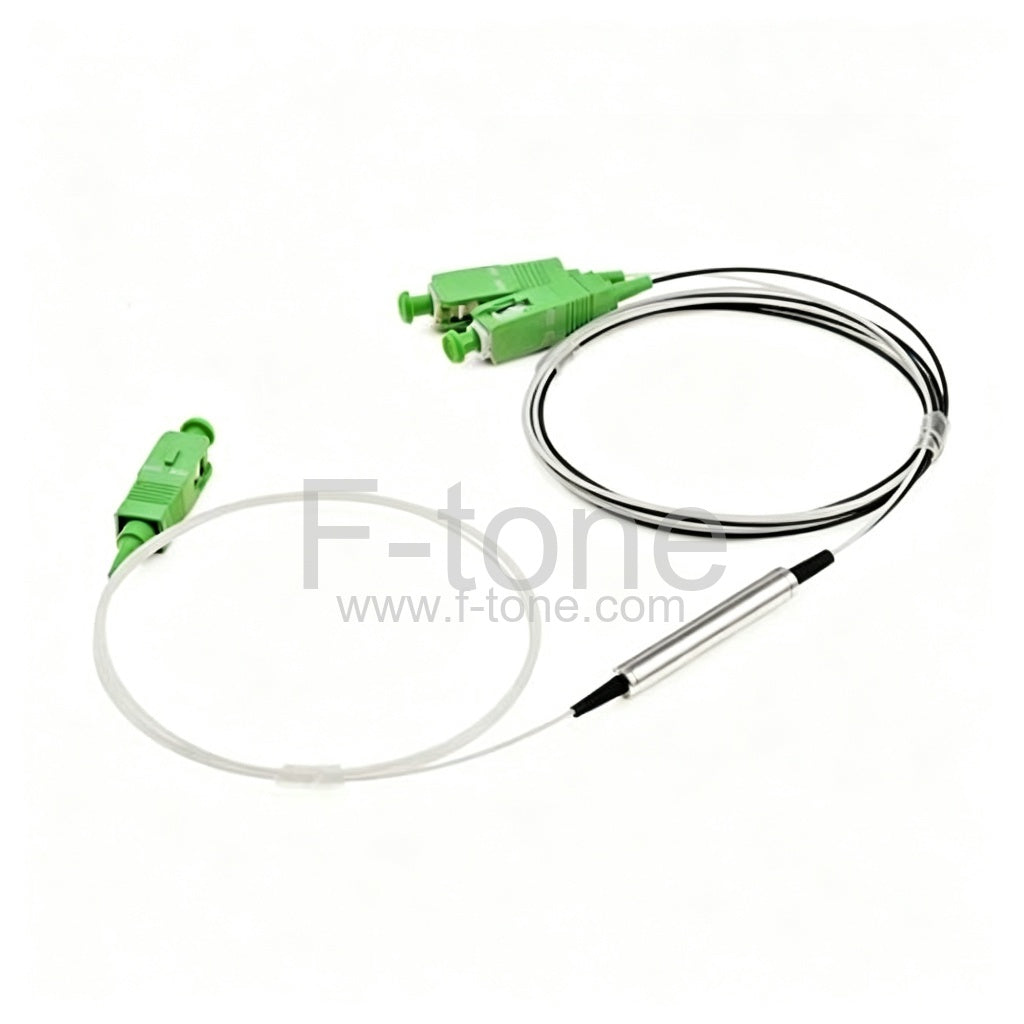

WDM Coupler Singlemode 1310/1550nm HWDM & 1310/1550nm SWDM

WDM - Wavelength Division Multiplexing, a technology that simultaneously transmits multiple channels (wavelength) through a single optical fiber. Three different kinds of wavelength coupling combination are available for CATV systems, EDFA as well as Hi speed optical transmission systems.

F-tone provides WDM for EDFA, WDM for Communication System, Custom-made WDM, 1480/1550nm WDM & 1480/1590nm WDM, 980/1550nm WDM & 980/1590nm WDM, 1310/1550nm WDM, 1310/1550nm HWDM & 1310/1550nm SWDM.

Specifications:

Types



Items

1310/1550nm WDM

1310/1550nm HWDM

1310/1550nm SWDM
Operating Wavelength (nm) 1310 & 1550nm
Bandwidth (nm) ±10 ±15
Insertion Loss (dB) ≤0.15 (0.10 typical) ≤0.6 ≤0.8
Isolation (dB) ≥20 ≥38 ≥45
Polarization



Dependent Loss (dB)

≤0.1
Operating Temperature (°C) -40 to +85 -20 to +70
Thermal Stability (dB/°C) ≤0.002
Directivity (dB) ≥60
Configuration 1x2 or 2x2

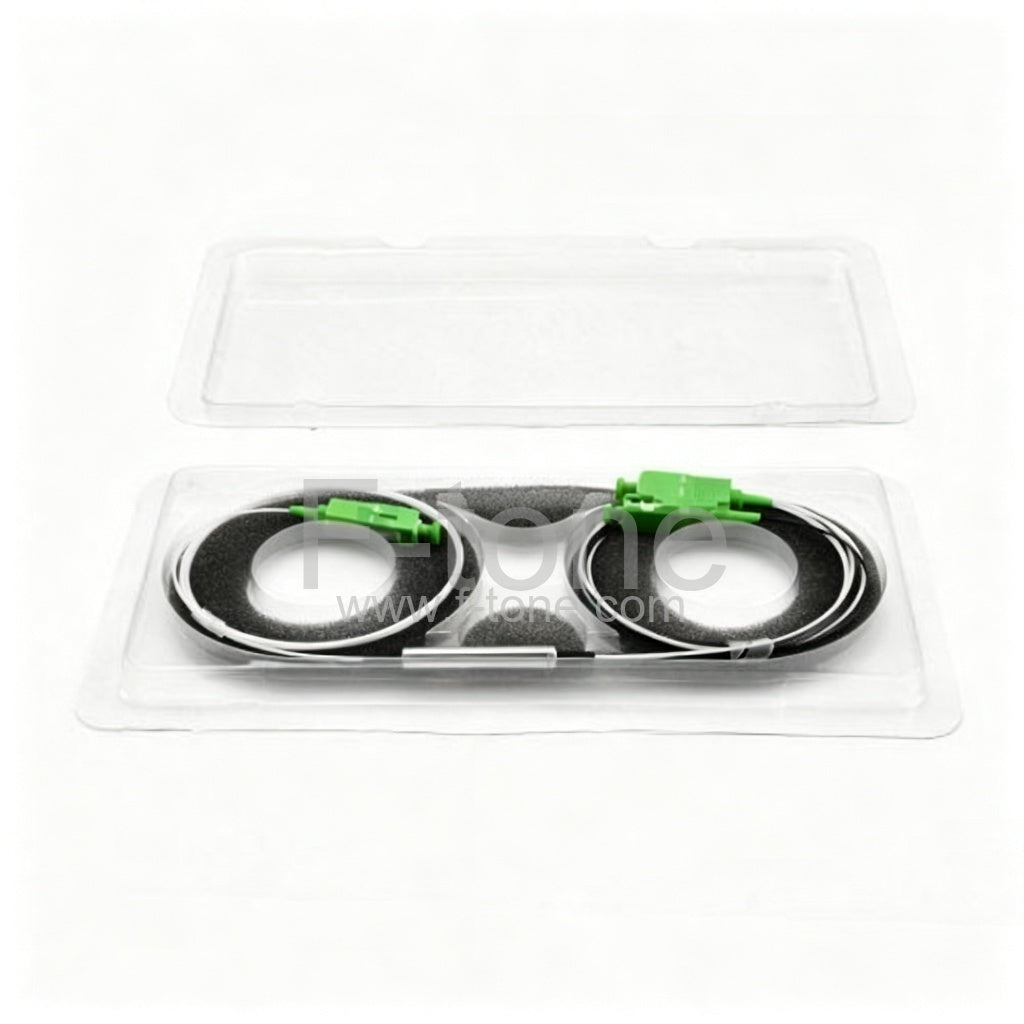

Packaging Information:

For 1310/1550nm WDM:

Lead Length 1 meter, others on request
Lead Type 250µm bare fiber 900µm fiber 3mm cable




Package Dimensions (mm)



Tube 3.0 x 40		 Tube 3.0 x 54



Box 90 x 16 x 9



Module 190.5 x 114.3 x 25.4

Box 90 x 16 x 9



Box 106 x 79 x 10
Operating Temperature (°C) -40 to +85 -20 to +70

For 1310/1550nm HWDM & 1310/1550nm SWDM:

Lead Length 1 meter, others on request
Lead Type 900µm fiber 3mm cable


Package Dimensions (mm)		 Box 106 x 79 x 10



Module 190.5 x 114.3 x 25.4

Box 106 x 79 x 10
Operating Temperature (°C) -20 to +70

Order Infos:


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
