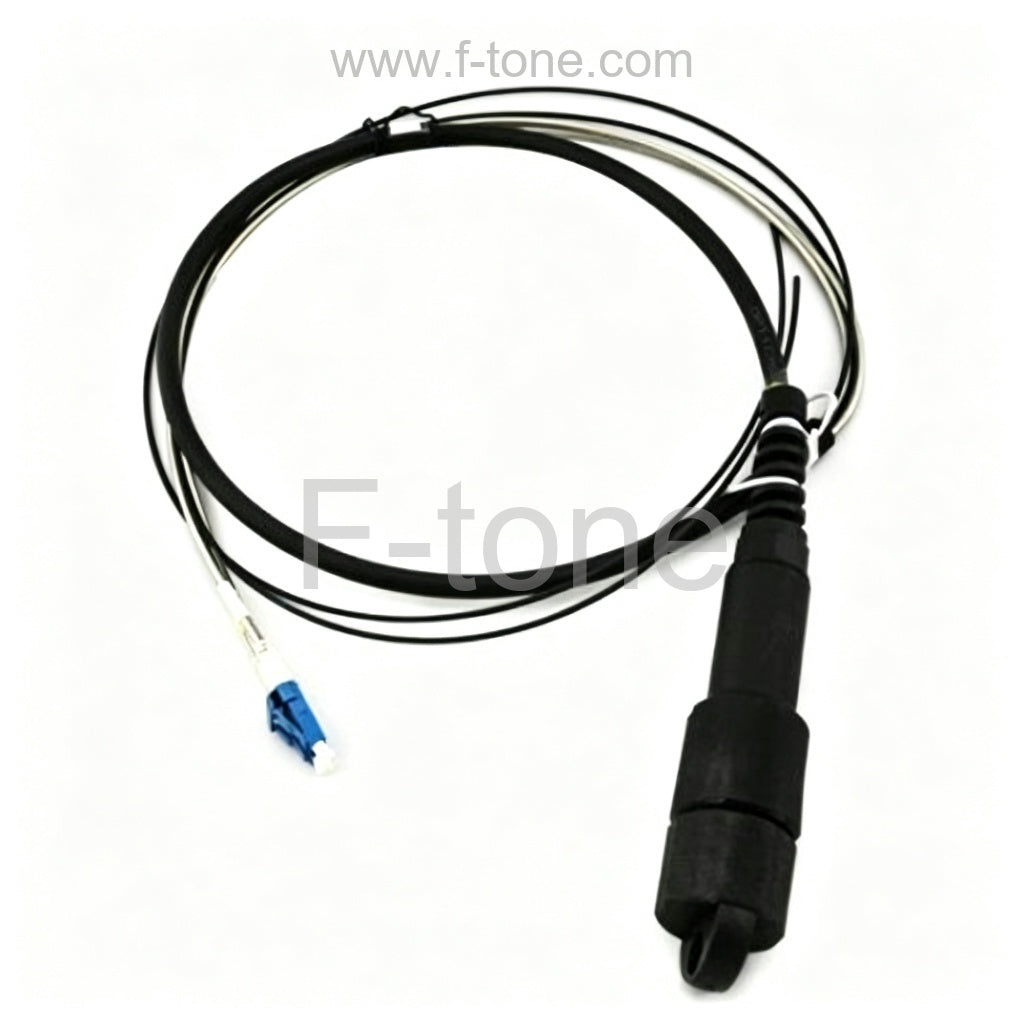

IP67 Military Grade ODC (Plug) to LC/SC/ST/FC Rubber Duplex Singlemode Fiber Optic Patch Cable

IP67 Military Grade ODC (Plug) to LC/SC/ST/FC Rubber Duplex Singlemode Fiber Optic Patch Cable

Просмотреть всю информацию

Part Number: IPODC-LC-P2-FM

Military Grade Fiber Optic Patch Cable, ODC Plug to LC/SC/ST/FC, 2 Fibers

ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Product Type Outdoor Cable Fiber Count 2
Connector1 ODC Plug Connector2 LC/SC/ST/FC
Connector Polish UPC Protection Rating IP67
Return Loss ≥50dB Operating Temperature -45°C-85°C

Dimension Drawing

Features

Easy and safe intallation Screwed locking mechanism 2 fibers singlemode or multimode Extension connector for cable chaining Built-in socket with square or hexagonal flange
Water proof protection capsEMI protected, ROHS compliantConnector - ODC Plug to LC/SC/ST/FCCompact design with 2x1.25mm ferrulesWater proof, dust proof and corrosion resistant

ODC for Harsh Environment Connectivity

In F-tone.COM, ODC fiber optic patch cables are used in outdoors, which suitable for different environment and large temperature range, typically used in FTTA. And ODC connector is next generation connectors for wireless base station application inclouding WCDMA, TD-SCDMA, CDMA200, Wi-MAX, GSM. ODC provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.

Outdoor Fiber Cable Assemblies Solution

ODC cables usually consist of LC fiber connector and ODC socket/plug connector, and the ODC socket can be directly connected to ODC plug for a complete set. The ODC connector is a kind of harsh environment fiber optical interfaces for remote radio heads. It is installed in many different types of environments such as costal areas, urban bulidings, rural tower sites and extreme temperatures, vibration, salt mist, corrosive gases and humidity are all typical challenges.

Kind Note: As socket should work with plug, this product should be ordered together with 2 Fibers ODC Socket to LC/SC/ST/FC Outdoor Fiber Optic Patch Cable(ID:22761), thus not to order individually.

ODC Optic Patch Cable Performance

Fibers 2 fibers 4 fibers 6 fibers
Insertion Loss(SM) Typ. ≤0.30dB 97%≤0.45dB Typ. ≤0.30dB 97%≤0.45dB Typ. ≤0.30dB 97%≤0.45dB
Insertion Loss(MM) Typ. ≤0.30dB 97%≤0.50dB Typ. ≤0.30dB 97%≤0.50dB Typ. ≤0.30dB 97%≤0.50dB
Housing Material Nickel plated brass Nickel plated brass Nickel plated brass
Tensile Strength(ODC Plug) ≤1000 N ≤1000 N ≤1000 N
Tensile Strength(ODC Socket) ≤30 N ≤30 N ≤30 N
Installation Torque Min.1Nm Max.2Nm Min.1Nm Max.2Nm Min.1Nm Max.2Nm
Durability 1000 cycle 1000 cycle 1000 cycle
Salt Mist 30 days passed 30 days passed 30 days passed
Shock Pass 100g Pass 100g Pass 100g


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
