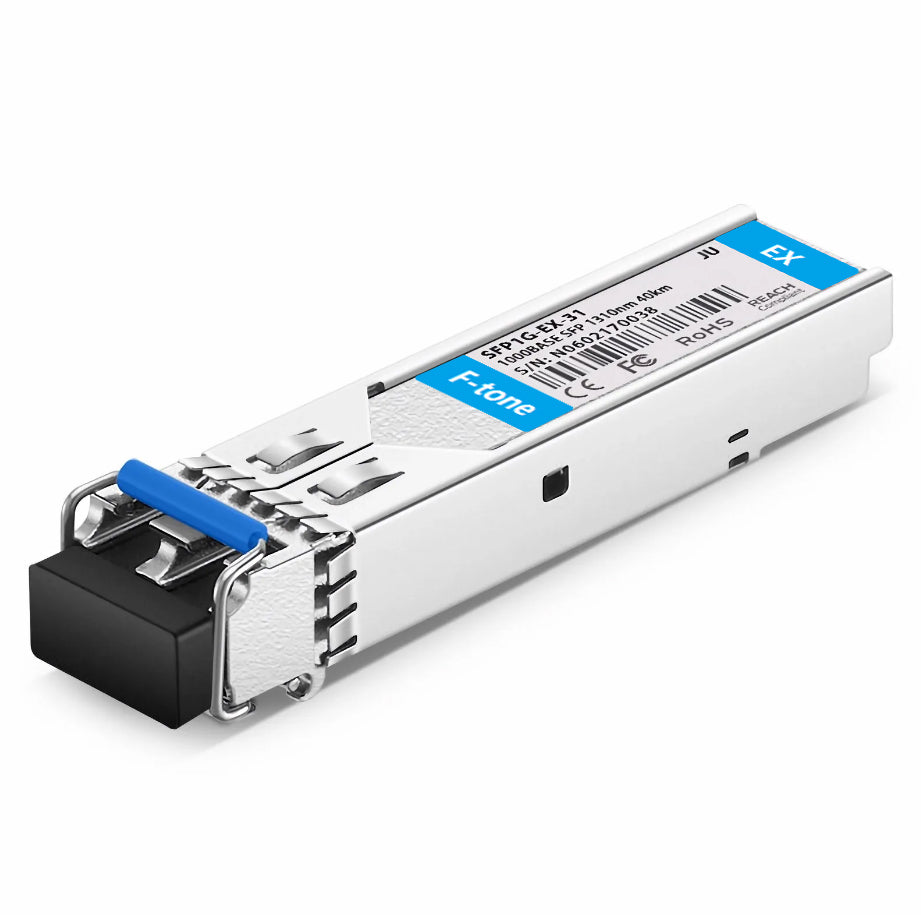

Juniper Networks EX-SFP-1GE-LX40K Compatible 1000BASE-EX SFP 1310nm 40km Duplex LC/UPC SMF Transceiver Module

Juniper Networks EX-SFP-1GE-LX40K Compatible 1000BASE-EX SFP 1310nm 40km Duplex LC/UPC SMF Transceiver Module

Просмотреть всю информацию

Juniper Networks EX-SFP-1GE-LX40K Compatible 1000BASE-LH SFP Transceiver Module (SMF, 1310nm, 40km, LC, DOM)

Juniper Networks EX-SFP-1GE-LX40K compatible SFP transceiver supports up to 40km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of Juniper switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specifications

Juniper Networks Compatible EX-SFP-1GE-LX40K Vendor Name F-tone Networks
Form Factor SFP Max. Data Rate 1.25Gbps
Wavelength 1310nm Max. Cable Distance 40km
Connector Duplex LC Optical Components DFB 1310nm
Media SMF DOM Support Yes
TX Power -5~0dBm Receiver Sensitivity < -24dBm
Commercial Temperature Range 0 to 70℃ (32 to 158°F) Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
