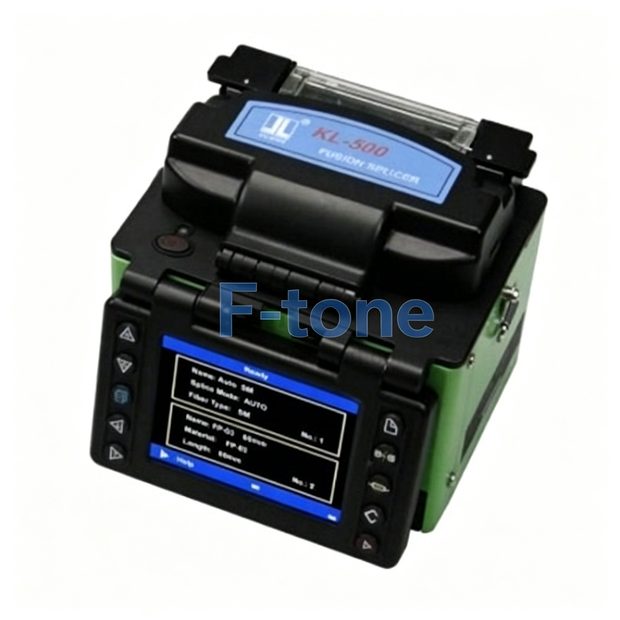

KL-500 Fusion Splicer

KL-500 Fusion Splicer

Просмотреть всю информацию

Part Number: KL-500

KL-500 Fusion Splicer

Key Features

  • The world's smallest dual observation, tune core type welding machine
  • 3.5-inch color display, while observing the X-axis, Y-axis direction of the optical fiber
  • Optical magnification large, clearly visible core
  • Multiple core alignment method: core alignment cladding alignment manually aligned
  • Welding time 9 seconds 30 seconds heating time
  • Rich user interface, internal resistance, intelligent menu design
  • Furrow type wind cover, 15m /s under strong wind can carry splice
  • 5000 meters of altitude dial, weld quality assurance pla teau
  • Typically, the cycle of operation 300.

Specification

Applicable fibers SM MM DS NZDS
Fiber diameter Cladding diameter:80-150μm
Fiber count Single
Fiber cleaved length 8-16mm (Coating diameter:250μm)
Actual average splice loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB (NZDS)
Typical splicing time Typical 9 sec (standard SM fiber)
Return loss >60dB
Splicing mode Auto Calibrate Normal Special
Fiber aligning method Meticulous,Core,Clad,Manual
Splicing program 53 (templet), 40(user)
Tube heating program 9 (templet),24(user)
Tube typical heating time Typical 30 sec
Protection sleeve length 60mm, 40mm
Storage of splice result 4000 results, 20 parameter per result
Fiber image magnification 200X (X or Y view),50X (X and Y view)
Battery capacity Typical 300 cycles (splice/tube heaty)
Monitor 3.5 inch TFT color LCD monitor
Tension test 2N
Electrode life 2500
Terminal USB
Power supply AC 100-240V with AC adapter
Inner Li-battery (5200mAh)
Operating condition 0-5000m above sea level, -10-50°
Max wind velocity of 15m/s
Dimension 125mm(L)×105mm(W)×113mm(H)
Weight 1.55Kg including battery

Function Comparision of Jilong Fusion Splicer

Function KL-280G KL-280 KL-300T KL-500
Display fiber cleaved angle - - ● ●
Display fiber offset angle - - ● ●
Display core offset - - ● ●
Display clad offset - - ● ●
Splicing mode (Auto, Calibrate ,Normal ,Special) ● - ● ●
Fiber aligning method (Core 、 Clad 、 Manual) ● - ● ●
Arc strength automatic adjustment ● - ● ●
Image turn over - ● ● ●
Fiber angle limit - - ● ●
Display inside temperature - - ● ●
Display ambient temperature - - ● ●
Display heater temperature - - ● ●
Display air pressure - - ● ●
Display battery voltage - - ● ●
Taper splice - - ● ●
Sleep - - ● ●
Auto shut down - - ● ●
Software upgrade via USB interface ● - ● ●

( ● means YES , - means NO )


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
