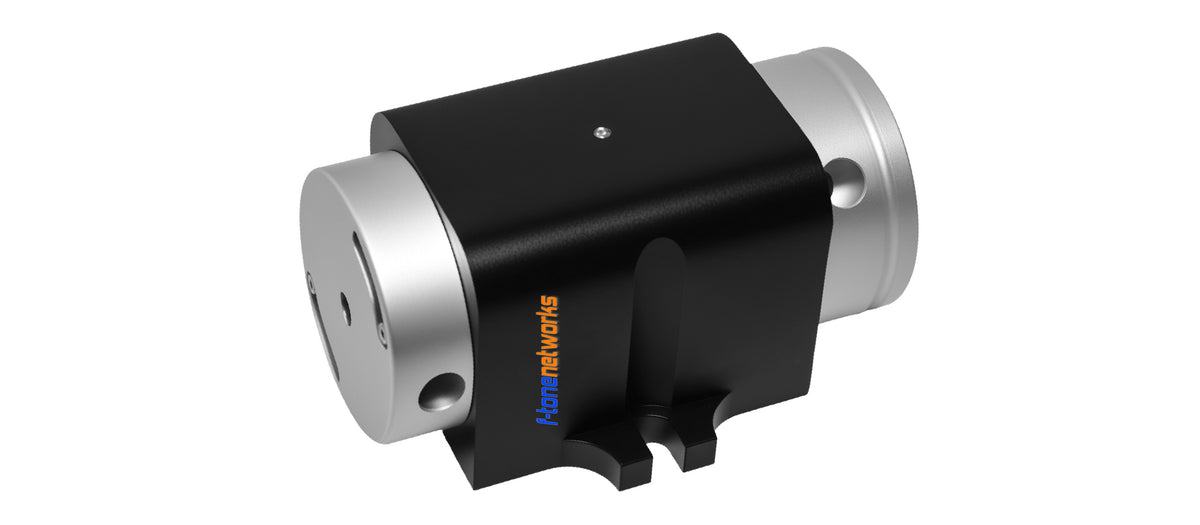

LaseGuard 1060 nm 5 mm Clear Apeture Free Space Isolator Series

LaseGuard 1060 nm 5 mm Clear Apeture Free Space Isolator Series

Просмотреть всю информацию

F-tone's LaseGuard Isolator Series is designed for guarding the laser from back reflected light. The isolator normally rotates the polarized plane 45° clockwise in the forward direcition, an λ/2 waveplate is an option if other output polarization is preferred. The high transmission efficiency, high isolation, high power handling ability and large aperture features make it flexible to fit different applications in laser protection.

Product Detail

Key Features

Applications

High Power Handling

Laser Protection

High Transmission Efficiency

Fiber Optic Instruments

High Isolation


Specifications

 Parameter

Unit

Value

 Center Wavelength, (λc)

nm

1060 or specify

 Peak Transmission, λc, 23 ℃

%

> 95

 Peak Isolation, λc, 23 ℃

dB

> 35

 Input Polarization

-

Specify

 Output Polarization

-

Specify

 Aperture

mm

5 or specify

 Optical Average Power

W

100 or specify

 Damage Threshold

-

10 J/cm2 @ 10 ns



-

1 J/cm2 @ 8 ps

 Operating Temperature

℃

+ 10 to + 30

 Storage Temperature

℃

0 to + 60

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
