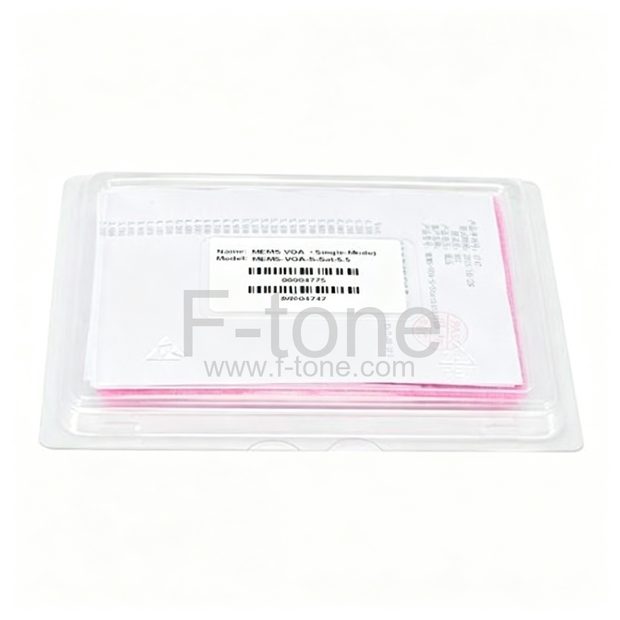

0-30dB Single-Channel Standard MEMS Variable Optical Attenuator with WDL PDL

0-30dB Single-Channel Standard MEMS Variable Optical Attenuator with WDL PDL

Просмотреть всю информацию

Part Number: MEMS-VOA-S-Sta-5-W

Variable Optical Attenuator 0-30dB Single-Channel Standard MEMS with WDL PDL

Description

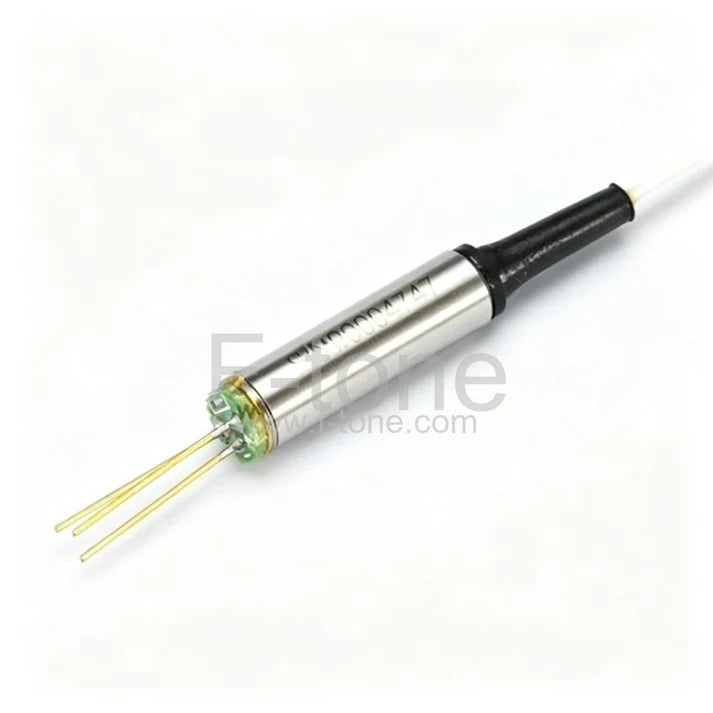

The MM Series VOA is based on a proprietary micro-electro-mechanical mechanism featuring compact design, simple construction, easy direct drive, and excellent optical performance. The MM series VOA is compliant with the Telcordia 1209 and 1221 reliability standards. The MM series VOA is available in either normally-open or normally-closed configurations and with an integrated tap option. The VOA is driven by applying an electrical voltage.

Features

• Compact
• Low Cost
• High Reliability
• Low IL, PDL, WDL & TDL
• Low Power Consumption

Applications

•Power Control
•Power Regulate
•Channel Balance
•Instrumentation

Dimensions



Electrical Driving Instruction

Pin1 and Pin2 are for control voltage without polarity.
•GND connect to the case. It can be cut.
•Do not apply more than 6.5V.


Typical Performance Charts



Ordering Information

A B C D E F G
Type Wavelength Off State Package Fiber Diameter Fiber Length Connector
Drive Voltage 13: 1310nm 1:Transparent 6:Φ6mm 25:250um 05:0.5m OO:None
5:5V 14: 1490nm 2:Opaque 3:Φ3.5mm 90:900um 10:1.0m FP: FC/PC
3:3.5V 15: 1550nm 15:1.5m FA: FC/APC
162: 1625nm SP: SC/PC
165: 1650nm SA: SC/APC
13/15:1310/1550nm LP: LC/PC
LA: LC/APC
MMVOA Unit Typical
Wavelength nm 1310±50/1480±50/1550±50
InsertionLoss1 dB 0.8
AttenuationRange 30
PolarizationDependentLoss @10dB 0.15
@20dB 0.25
WavelengthDependentLoss @10dB 0.2
@20dB 0.4
TemperatureDependentLoss @10dB 0.4
@20dB 0.8
PolarizationModeDispersion ps 0.05
ReturnLoss 45
ResponseTime ms 5
DeviceResistance ohm 100
PowerConsumption3 mw 130
OpticalPowerHandling mw 500
OperatingTemperature ℃ -5~75
StorageTemperature ℃ -40~85



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
