Mini 4K HDMI Fiber to Video/Audio Optical Transmitter and Receiver

Mini 4K HDMI Fiber to Video/Audio Optical Transmitter and Receiver

Просмотреть всю информацию

Part Number: MN-4KMI-1V-TL

Mini 4K HDMI Fiber to Video/Audio Optical Transmitter and Receiver

Overview

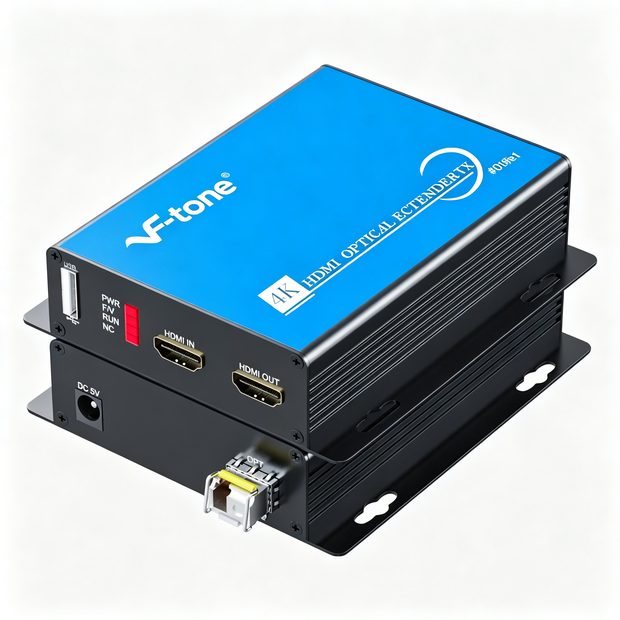

F-tone Mini 4K HDMI fiber to video/audio is composed of the transmitter and the receiver. The video/audio output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through optical fiber, and the image and sound of the computer host are broadcasted in real time at the remote end.

Features

1. Mini 4K 30Hz HDMI optical transmitter and receiver can transmit video images with maximum resolution of 4096*2160@30Hz, single fiber or dual fiber.

2. HDMI transmitter transmit one channel HDMI1.4 uncompressed video signal.

3.The transmitter encode the HDMI video signal into 10 Gb/s serial data and transmit it with the fiber, receiver convert serial data to HDMI signal.

4.Mini 4K 30HZ HDMI optical converter use the LC fiber connector. Through the standard micro-USB terminal +5 V power supply.

Specifications

1.Maximum support 4096*2160@30Hz

2.Support HDM11.4

3.Support DDC CEC HPD signal

4.No need to set, fully adaptive, automatic identification EDID and CEC

5.Multi mode transmission 300m, single mode transmission 10Km

6.Standard HDMI terminal

7.Built-in USB terminal for power supply

8.Support for hot plug

9.Good EMI/RMI resistance

10.Fiber module 1310nm or 1310nm/1550nm wavelength

11.Use LC optical connector

Technical Indexes

Parameter Specifications
Rate per channel 10Gbps
Power consumption 1420 mW TX Side

1220 mW RX Side
Power supply 5V/+-5%
Maximum resolution 4096*2160@30Hz
Refresh frequency Up to 30 Hz
Color depth Up to 48-bit
Wavelength Multi mode 1310nm 300m , single mode 1310nm/1550nm 10km
Bit Error Rate Performance 1.00E-12
Laser output power TX power >-5 db

RX Sensitivity >-14 db
Dimensions 79.2*20*10.3mm
Packing size 210*150*60mm
Weight 0.25kg/pair
Electrical Interface 19 Pins HDMI Type Port

5 Pins USB Standard B
Operating temperature Working Temperature: -20°C ~70°C

Storage Temperature: -40°C ~85°C

Packing list

MN-4KMI-1V-TL Transmitter 1 pcs

MN-4KMI-1V-RL Receiver 1 pcs

Micro-USB interface +5V adapter 2 pcs

User’s Manual

Please check carefully whether the above items are included , If any item(s) missing, please contact the manufacturer [email protected]


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
