Part Number: MSFP-3G85TR-3MA

MFG PART#:

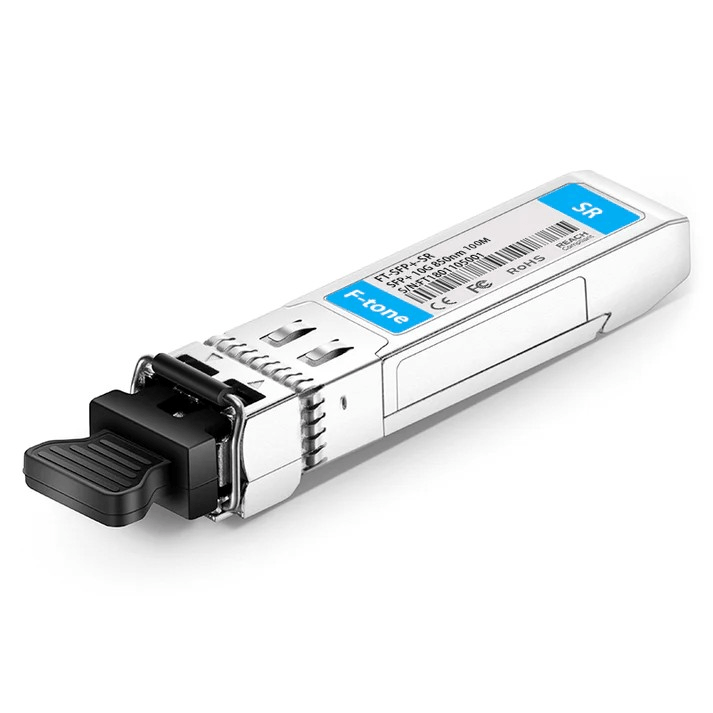

3 Gb/s 850nm 300m Dual Optical Video Transceiver SFP

The MSFP-3G85TR-3MA is a dual channel optical multi-mode transmitter module designed to transmit/receive optical serial digital signals as defined in SMPTE 297-2006. It supports from 50 Mbps to 3 Gbps and is specifically designed for transmitted the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns. It is with the SFP 20-pin connector to allow hot plug capability. It is with two independent 850 nm VCSEL transmitters. Each transmitter can transmit signal from 50 Mbps to 3 Gbps with up to 1000 m of multi-mode fiber when using the MSFP-3G85TR-3MA-xx as the receiver. A maximum distance of 300 m is achievable with 3Gbps pathological signals.

Fetures

  • SMPTE 297-2006 Compatible
  • Speed from 50 Mbps to 3Gbps with up to 1000m Multi-mode Fiber
  • Distance up to 300 m for 3G-SDI
  • Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
  • Hot-Pluggable SFP Footprint LC Optical Transceiver
  • Based on Industry Standard SFP
  • Single +3.3 V Power Supply
  • RoHS-6 Compliant
  • 0 to 70℃ Operation
  • Hot Pluggable
  • Class 1 Laser International Safety Standard IEC-60825 Compliant

Applications

  • SMPTE 297-2006 Compliant Electrical-to-Optical Interfaces
  • High-density Video Routers

Ordering Information

P /N Type Bit Rate (Mb/s) TX1 TX2 Transmission Distance Fiber Type Connector Type Temp. (oC) Digital
Diagnostics
λ(nm) Sen. (dBm) λ(nm) Sen. (dBm)
MSFP-3G85DR-3M 2-RX 50 to 3000 850 0 to -15 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85SR-3M 1-RX 50 to 3000 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85DT-3M 2-TX 50 to 3000 850 -2 to -7 850 -2 to -7 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85ST-3M 1-TX 50 to 3000 850 -2 to -7 850 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85TR-3M 1-TX + 1-RX 50 to 3000 850 -2 to -7 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85TR-3MA TRX 50 to 3000 850 -2 to -7 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No

Notes

  • xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc.)

Packaging

  • Antistatic bag
  • Packed on pallets in a box(Default Customer Options)
  • Specific Labels as Request
  • Seperate white Box for each transceiver

OEM and ODM

Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, F-tone provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.

  • OEM/ODM order is available
  • We can supply MSFP-3G85TR-3MA according to your requirements, and design MSFP-3G85TR-3MA label and packaging for your company. We welcome any inquiry for customized 3G SFP optical transceiver.

Order Procedure

Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.

Shipment

International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Save Cost By Buying 3G SFP From Original Manufacturer F-tone Directly.

F-tone is an professional manufacturer & supplier of 3G SFP transceivers. All of our 3G SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 3G SFP transceivers to work in your system and all of our 3G SFP transceivers come with a lifetime advance replacement warranty. If you have questions about 3G SFP optics, please feel free to contact us at [email protected].

Ordering Information

P /N Type Bit Rate (Mb/s) TX1 TX2 Transmission Distance Fiber Type Connector Type Temp. (oC) Digital
Diagnostics
λ(nm) Sen. (dBm) λ(nm) Sen. (dBm)
MSFP-3G85DR-3M 2-RX 50 to 3000 850 0 to -15 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85SR-3M 1-RX 50 to 3000 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85DT-3M 2-TX 50 to 3000 850 -2 to -7 850 -2 to -7 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85ST-3M 1-TX 50 to 3000 850 -2 to -7 850 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85TR-3M 1-TX + 1-RX 50 to 3000 850 -2 to -7 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No
MSFP-3G85TR-3MA TRX 50 to 3000 850 -2 to -7 850 0 to -15 300m SMF LC SFP 0 to 70 Yes/No

Notes

  • xx means compatible brand. (For example: CO= Cisco, JU=Juniper, FD=Foundry, EX=Extreme, NE=Netgear,etc.)




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
