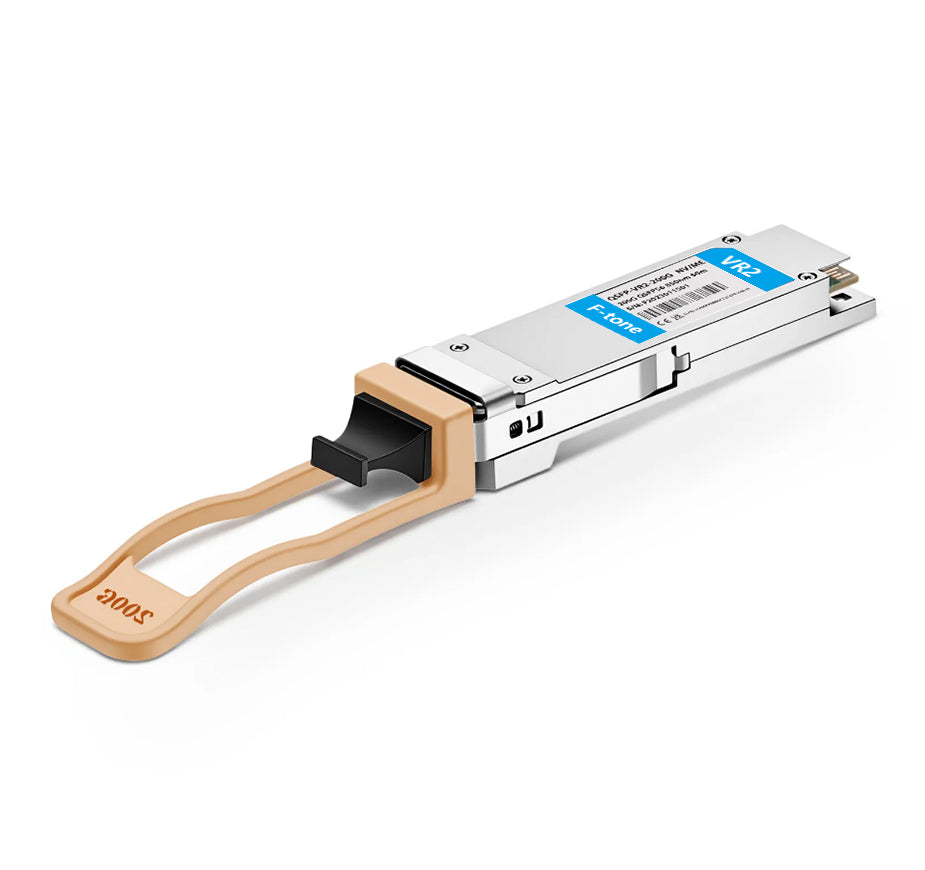

NVIDIA/Mellanox Compatible 200GBASE-VR2 QSFP56 2 x 100G PAM4 850nm 50m MPO-12/APC MMF Transceiver Module

NVIDIA/Mellanox Compatible 200GBASE-VR2 QSFP56 2 x 100G PAM4 850nm 50m MPO-12/APC MMF Transceiver Module

Просмотреть всю информацию

NVIDIA/Mellanox Compatible 200GBASE-VR2 QSFP56 Optical Transceiver Module (MMF, 850nm, 50m, MPO-12/APC, DOM)

The NVIDIA/Mellanox Compatible QSFP56 transceiver supports up to 50m link lengths over multimode fiber (MMF) via MPO-12/APC connectors. This transceiver is compliant with IEEE 802.3db and IEEE 802.3-2022 Annex 120E standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. Featured with low power, and reliability, it can link upward in spine-leaf architectures for switch-to-switch applications, downward for top-of-rack switch links to Ethernet network adapters. It is the ideal solution for 200G Ethernet, Data Centers and Breakout 2x 200G VR2 Connections.

Specifications
Part Number QSFP-VR2-200G Vendor Name F-tone
Form Factor QSFP56 Max. Data Rate 212.5Gbps (2x 106.25Gbps)
Wavelength 850nm Max. Cable Distance 50m
Connector MPO-12/APC Media MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power -4.6~4dBm Minimum Receiver Power -6.3dBm
Power Budget 1.7dB Receiver Overload 4dBm
Max. Power Consumption 6.5W Extinction Ratio >2.5dB
DDM/DOM Supported Commercial Temperature Range 25 to 70°C (77 to 158°F)
Modulation (Electrical) 4x 50G PAM4 Modulation (Optical) 2x 100G PAM4
CDR (Clock and Data Recovery) TX & RX Built-in CDR Inbuilt FEC No
Protocols IEEE 802.3db, IEEE 802.3-2022 Annex 120E, QSFP-DD MSA 6.01, CMIS Rev 4.0 Warranty 5 Years





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
