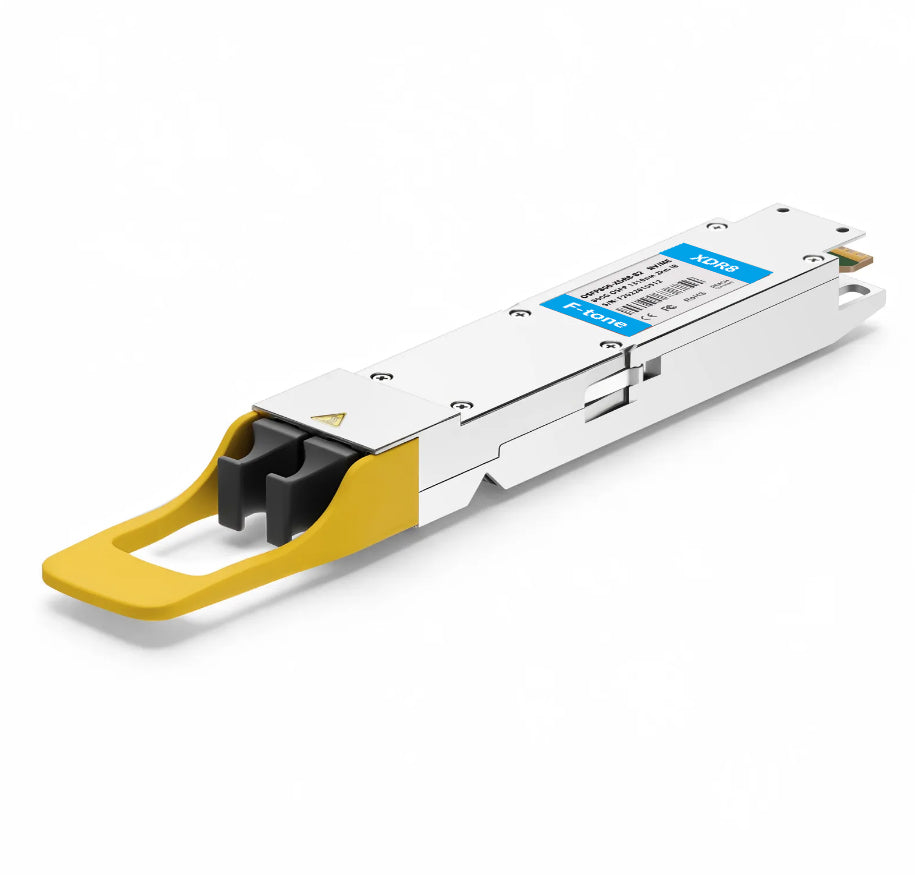

NVIDIA/Mellanox Compatible 800G OSFP XDR8 PAM4 InfiniBand NDR Optical Transceiver Module (2x XDR4, SMF, 1310nm, 2km, Dual MTP/MPO-12/APC, DOM, IHS/Closed Finned Top)

The NVIDIA/Mellanox InfiniBand Compatible OSFP IHS/Closed Finned Top Optical Transceiver is an InfiniBand 800Gb/s 2x 400Gb/s Twin-port OSFP, XDR8 single-mode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The modules uses 100G-PAM4 modulation and has a maximum fiber reach of 2000-meters using 8 single-mode fibers. It is qualified for use in InfiniBand NDR end-to-end systems.
Designed for NVIDIA Quantum-2 InfiniBand networks, this OSFP transceiver delivers 800G high-speed connectivity for leaf-spine architectures and interconnects with NVIDIA ConnectX and BlueField-3 platforms. Its scalable, low-latency optical connectivity makes it well suited for large-scale GPU clusters, AI fabrics.


Note: "Finned-top" transceivers are now called "Integrated Heat Sink" (IHS), designed for air-cooled switches. "Flat-top" transceivers are now called "Riding Heat Sink" (RHS), supporting both air- and liquid-cooled applications with heat sinks mounted on system cages or network cards.

Specifications

Parameter Value Parameter Value
Part Number OSFP800-XDR8-B2 Vendor Name F-tone
Form Factor Twin-port OSFP IHS/Closed Finned Top Max Data Rate 850Gbps (8×106.25Gbps)
Wavelength 1310nm Max Cable Distance 2km
Connector Dual MPO-12/APC Media SMF
Transmitter Type EML Receiver Type Siphotonics PIN
TX Power -3.1~4dBm Minimum Receiver Power -7.1dBm
Power Budget 4dB Receiver Overload 4dBm
Max Power Consumption 16.5W Extinction Ratio >3.5dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Modulation (Electrical) 8×100G-PAM4 Modulation (Optical) Dual 4×100G-PAM4
CDR (Clock and Data Recovery) TX and RX Built-in DSP Packaging Technology COB (Chip on Board) Packaging
Bit Error Ratio (BER) 2.4E-4 MTBF 3,222,983 Hours (@40°C, 60% CL)

1,632,641 Hours (@40°C, 90% CL)
Protocols IEEE 802.3ck, IEEE 802.3cu-2021, OSFP MSA, CMIS Rev 5.0 Warranty 5 Years






This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
