OCS/WSS MxN FAU

OCS/WSS MxN FAU

Просмотреть всю информацию

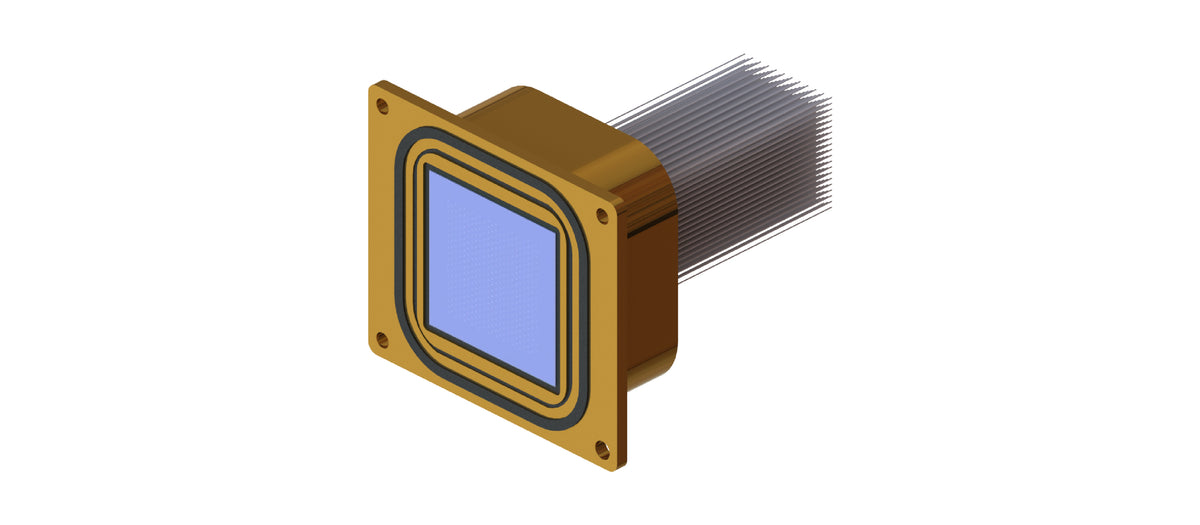

F-tone’s OCS/WSS Fiber Array Units (FAUs) are manufactured using high-precision, high-density V-Groove substrates, resulting in optimal fiber core positioning accuracy and superior polished surfaces. Our FAUs offer a comprehensive range of features, including low insertion loss, high return loss, compact size, and hermetic sealing, making them adaptable to diverse customer requirements.

Key Features

  • Non-Linear and Low Insertion Loss
  • High Density
  • Hermetic Sealing

Applications

  • OCS (Optical Circuit Switch)
  • WSS (Wavelength Selective Switch)
Specifications
Parameter Unit Value
Wavelength nm 1310 or 1550
Channel Count
2004/8/16
Typ. Insertion Loss dB 0.25
Max. Insertion Loss dB 0.5
Max. Pitch Error μm 0.75
Fiber Length Tolerance % ± 0.2
Operating Temperature ℃ - 5 to + 70
Storage Temperature ℃ - 40 to + 85




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
