Part Number: OFL280-102



OFL 280 Handheld FTTx OTDR

Installation (Live Fiber) and Construction Models

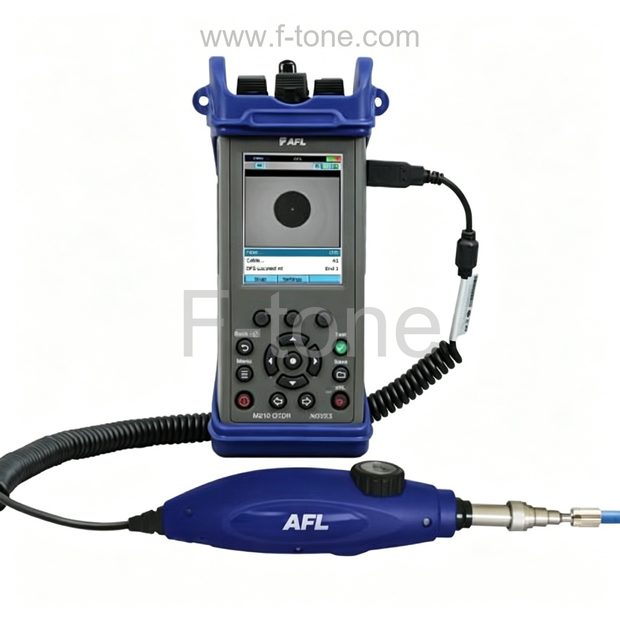

The Noyes OFL280 from AFL Telecommunications is a single-mode OTDR offered in two FTTx-optimized models. The 慽nstallation and repair?model can operate at three wavelengths (1310/1550/1625 nm) on dark fibers but automatically switches to a filtered, 1625 nm only mode if a live fiber is detected. In addition, the test port is equipped with a PON power meter, which allows the OFL280 to detect live FTTx fibers, measure FTTx network power levels, and fault-locate live FTTx fibers with a single OTDR to network connection and a single automated test. A conventional three-wavelength (1310/1490/1550 nm) 慶onstruction?model is also available to certify or fault-locate dark fibers in FTTx or other networks.

Both OFL280 models can operate in Full Auto, Real-Time, or Expert (manual) modes, and offer precision event analysis, an optical power meter, laser source, 12-hour battery life, internal data storage, and USB connectivity. OTDR and OPM test ports are equipped with tool-free adapters, which can be changed in seconds.

Results are saved as industry standard .SOR files, which can be transferred to a PC for viewing, printing, and analyzing with supplied Windows?compatible software.
Handheld, 0.8 kg (1.7 lb)
1.3 m dead zone (typical)
30 dB (28 dB @ 1625 nm) dynamic range
FTTx construction model (OFL280-102) includes:
?1310/1490/1550 nm
FTTx installation model (OFL280-103) includes:
?1310/1550/1625 nm
?PON power meter
?Live fiber filter at 1625 nm
OPM, OLS, and VFL (650 nm)
Internal memory (> 1,000 trace files)
3.5-inch, indoor/outdoor LCD display
12-hour, rechargeable Li-Ion battery
USB port for PC connection
Test dark fibers at up to three wavelengths
Test live FTTx fibers at 1625 nm
Measure splice, connection, and end-to-end loss
Measure connection reflectance
Measure FTTx downstream power levels at 1490 and 1550 nm
Troubleshoot splice trays, terminals, and patch panels using the VFL
Locate fiber 憁acro?bends
Trace fibers up to 5 km using the VFL
Measure end-to-end loss using the OLS and OPM
