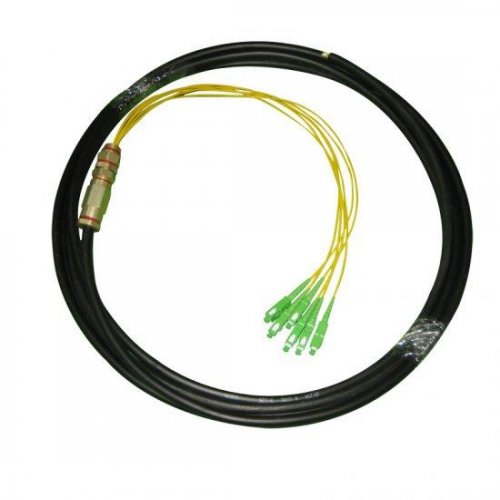

Duplex Multimode FC/SC/ST/LC Waterproof Fiber Optic Pigtail

Duplex Multimode FC/SC/ST/LC Waterproof Fiber Optic Pigtail

Просмотреть всю информацию

Part Number: OM1-DX-WP-FT-D

Waterproof 62.5/125 FC/SC/ST/LC Duplex Multimode Fiber Pigtail

Fiber optic waterproof pigtails can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.

Key Features

Good reliability and stabilityExcellent water-resistance performanceWaterproof, rigid and anti-corrosive copper connectorSimple installation

Applications

Optic fiber communications systemsOptical CATV & LANTelecommunication networksOptical communication networksConnecting with backbone optical cable and RX

Specification

Parameters Specification
Fiber Type(um) 62.5/125
Fiber Cores 2, 4, 6, 8 and 12 cores optional
Applicable connector FC, SC, ST, LC
Insertion Loss(dB) 0. 2 0
Return Loss(dB) 35
Repeatability(dB) 0. 2 0
Exchangeability(dB) 0. 2 0
Durability >1000 Times
Operating Temperature -40 ~ +80 C
Storage Temperature -40 ~ +85 C

Custom Information

F-tone offers custom-made pigtails with a wide variety of options:
a. "Unjacketed" fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.


Pigtail with jacket

Pigtail without jacket

Fan-out pigtail

Customized color pigtail

Customized 100 meters pigtail



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
