1M VF45 to VF45 Duplex OM2 Multimode Fiber Optic Patch Cable

1M VF45 to VF45 Duplex OM2 Multimode Fiber Optic Patch Cable

Просмотреть всю информацию

Part Number: OM2-VF-45-VF-45-1M-FT-O

1M VF45-VF45 50/125um OM2 MM Duplex Patch Cables

Volition VF-45 patch cables are manufactured using GGP(Glass/Glass/Polymer) fiber optic cables and industry standard ST, SC, FC, LC, MTRJ and VF-45 fiber optic connectors. GGP fiber cable assemblies are ideal for panel-to-panel cross-connects, equipment back planes, under desk and other applications that require reliability and mechanical strength. Volition VF-45 patch cables are ideal for applications requiring tight bends, durability and depend ability. They're great for exposed fiber optic cable situations, such as under-desk applications where their mechanical strength and tight bend radius makes them more resistant to kicks, pulls and bends.

This price on the website is for 1M length,please feel free to enquiry us for the other length standard


Characteristics

GGP FiberProven 3MTM TechnologyAllows Tighter Bend Radius (3/8 inch)Easier to Route and ManageExceptional Strength and DurabilityWithstands Abuse

Specifications

Item Specifications
Attenuation: < 0.75 dB max
Reflection: > 20 dB max
Mating durability: 500 cycles, <0.75 dB max
Strength of coupling: > 33 N, < 0.75 dB max
Plug cable retention: Tensile load > 66 N, Side Pull > 6.6 N, < 0.75 dB max
Plug flex: 100 Cycles, ± 90 degrees, 0.5 kg, < 0.75 dB max
Plug twist: 10 Cycles, ± 2.5 revolutions, 15 N, < 0.75 dB max
Cold: -10°C for 96 hours, < 0.3 dB increase
Heat: +60°C for 14 days, < 0.3 dB increase
Thermal cycling: -10°C to 60°C, 5 Cycles, < 0.3 dB increase
Vibration: 10 to 55 Hz, 30 min. each axis, < 0.3 dB increase
Connector Style: Crimp, Polish
Connector Type: VF45-SC

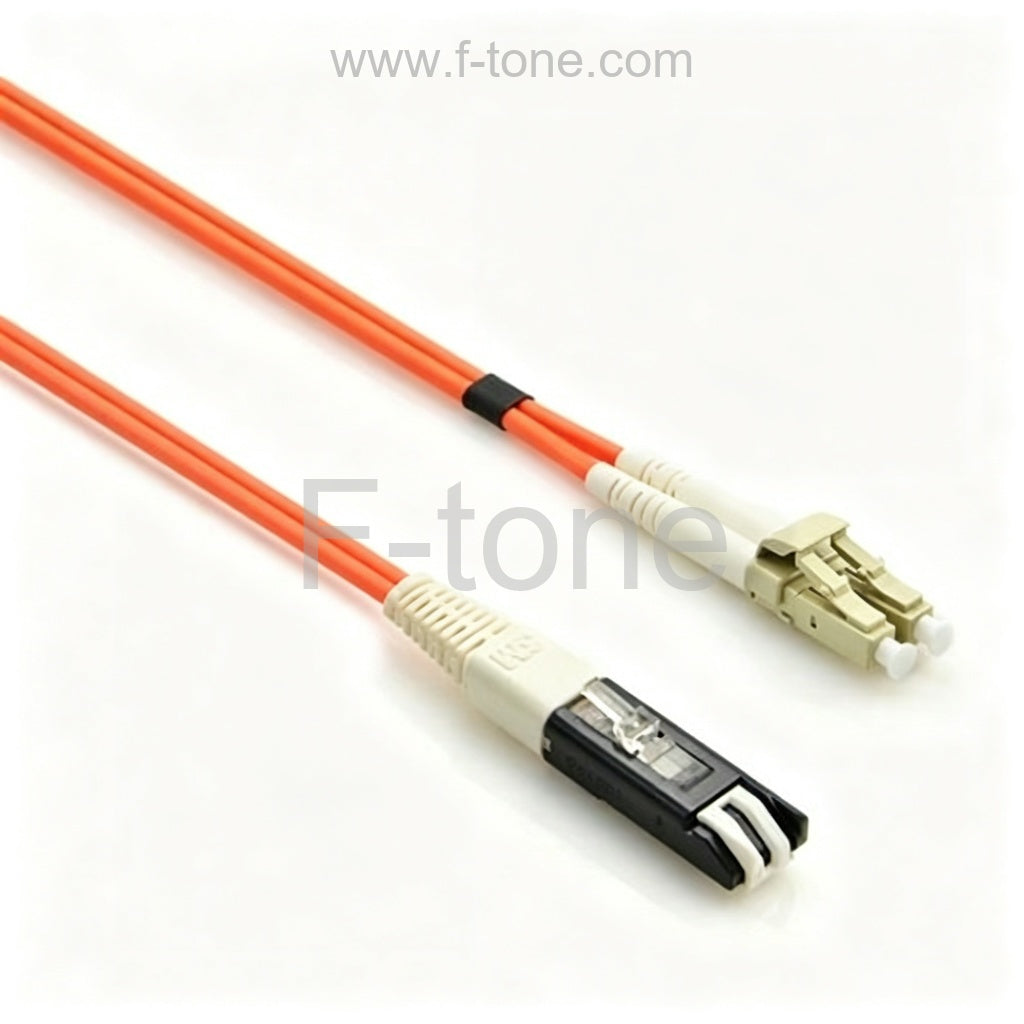

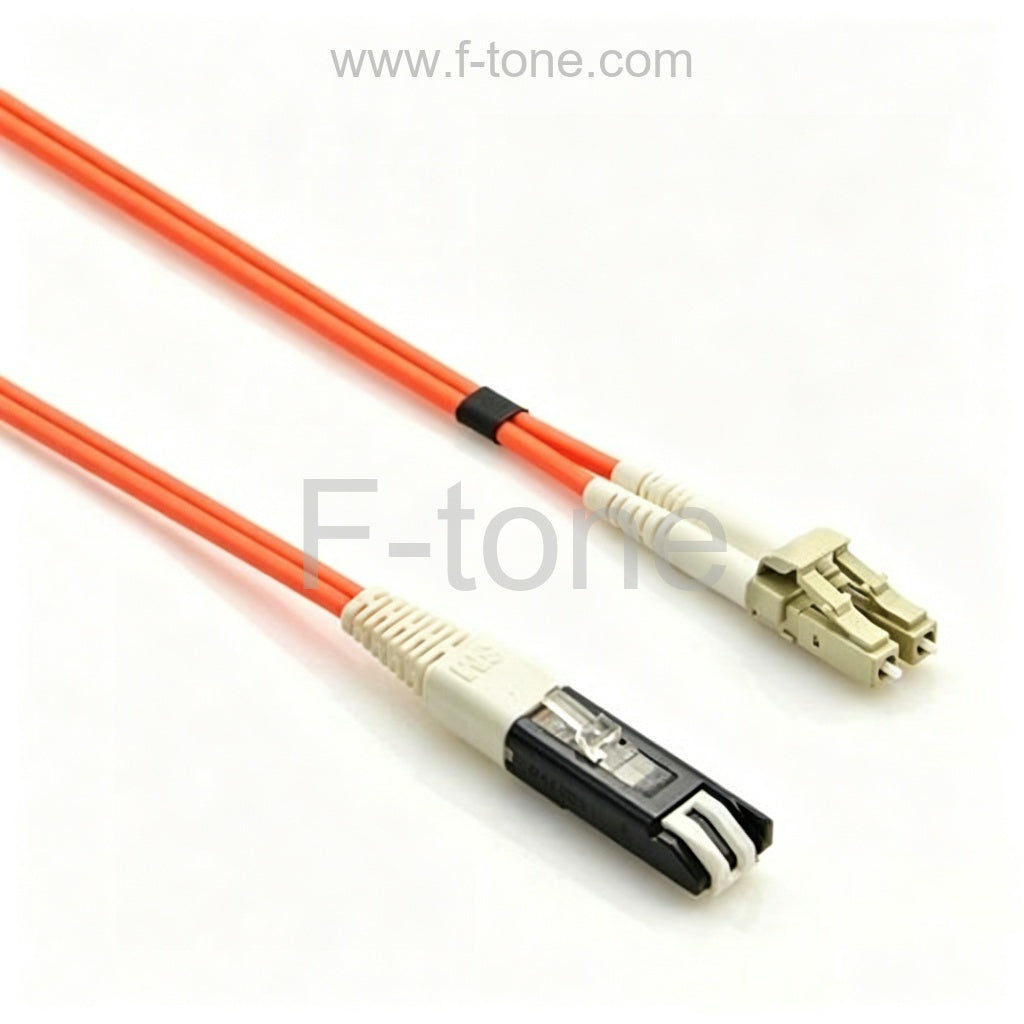

Sample Picture



Details





Order Information

Length in Meters: 1; 1.5; 2; 3; 5; 6; 8; 15; 30;Custom Cable Jacket Type: R-Riser; L-LSZH;CustomFiber Type by Core Size: 50/125(MM); 62.5/125(MM); 9/125(SM);CustomSecond Connector End: V-VF-45 Plug;ST;SC;LC;CustomFirst Connector End is Always Volition VF-45 Plug



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
