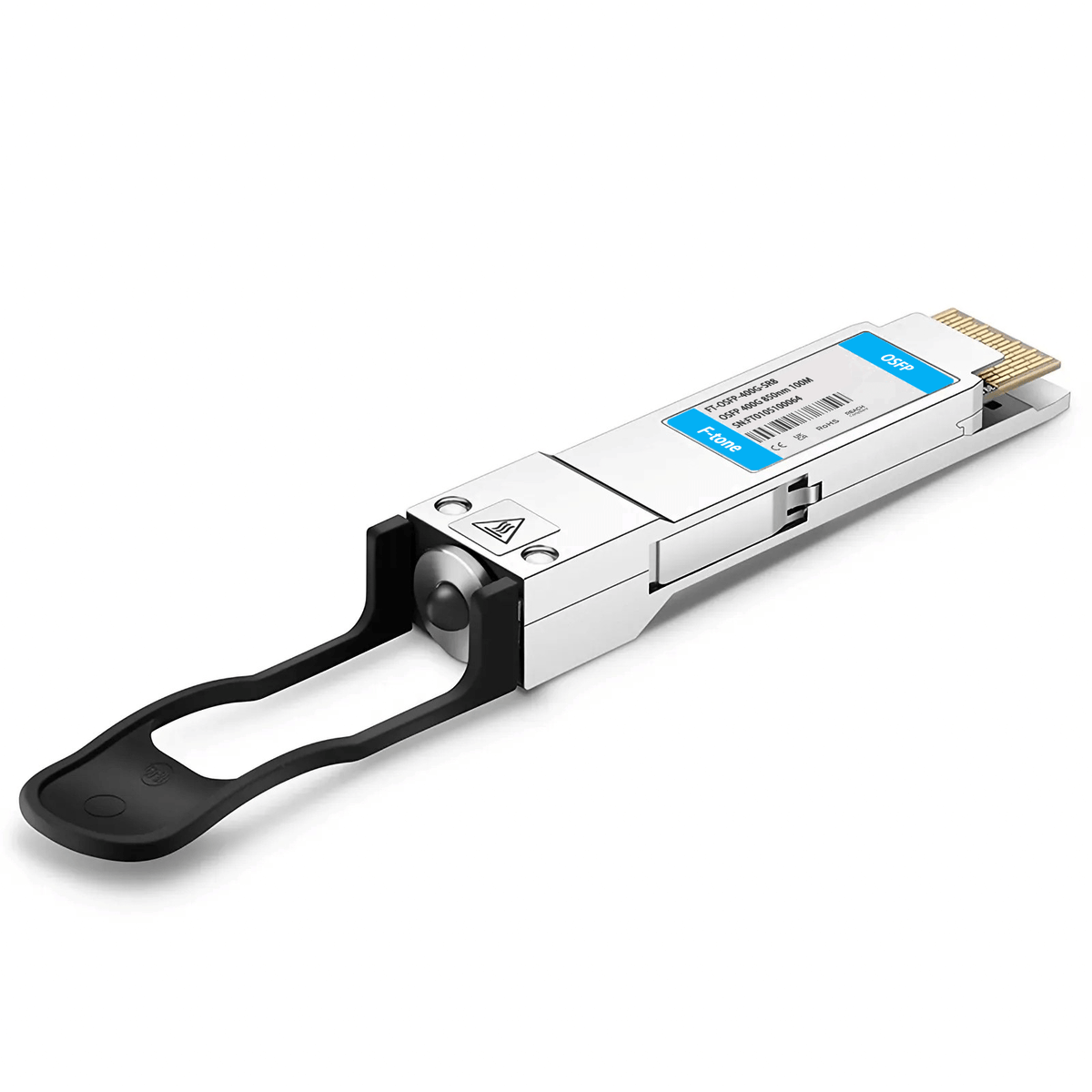

400G SR8 OSFP PAM4 850nm MTP/MPO-16 100m OM3 MMF FEC Optical Transceiver

400G SR8 OSFP PAM4 850nm MTP/MPO-16 100m OM3 MMF FEC Optical Transceiver

Просмотреть всю информацию

Part Number: OSFP-400G-SR8-FM

400G OSFP SR8 PAM4 Optical Transceiver Module (850nm MTP/MPO-16 MMF 100m OM3 with FEC DDM)

Product Details

F-tone P/N OSFP-400G-SR8 Vendor Name F-tone
Form Factor OSFP Max Data Rate 425Gbps
Max Distance 100m on OM3 Modulation Format PAM4
Host Required FEC Connector MTP/MPO-16
Voltage Supply 3.3V Cable Type MMF
DDM Support Yes Transmitter Type 850nm VCSEL
Receiver Type PIN TX Power -6.0~+4.0dBm
Receiver Sensitivity <> Operation Temperature 0 to 70～C (32 to 158～F)
Maximum Power <> Protocols OSFP MSA, IEEE 802.3bs
Application 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.
