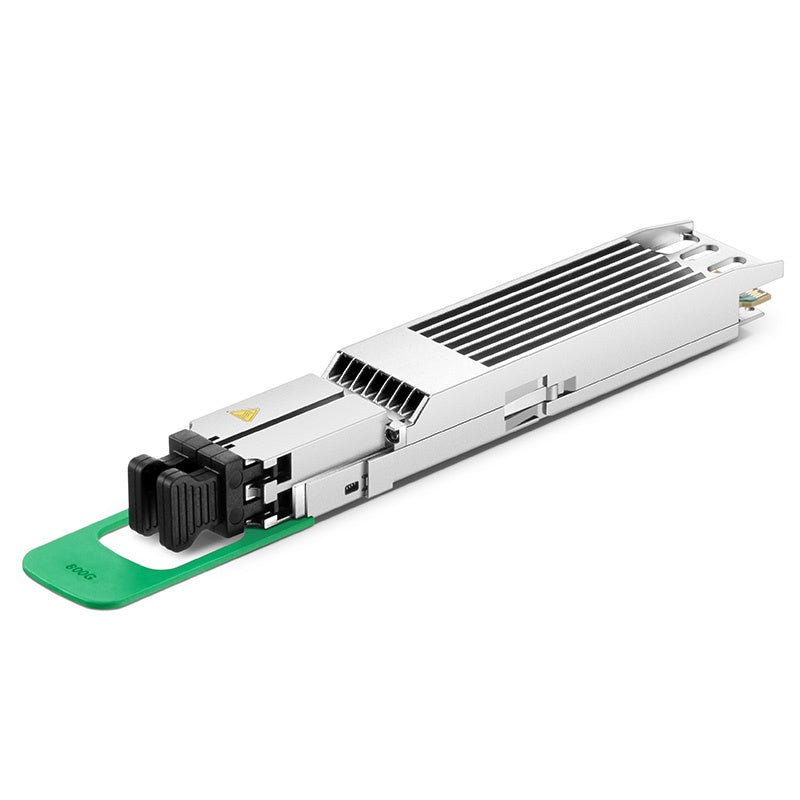

Part Number: OSFP-800G-FR8-FM

OSFP-800G-FR8 OSFP 8x100G FR Optical Transceiver Module (1310nm MPO-16 SMF 2km DDM)

F-tone OSFP 8x100G FR transceiver modules are designed for 800 Gigabit Ethernet links over 2km of single-mode fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. This transceiver consists of two transmitter/receiver units, with each operating on a set of wavelengths on the ITU G.694.2 CWDM grid at 1310nm. The module's transmitter path contains a bidirectional PAM4 re-timer ASIC integrating a silicon photonic laser and two 4-channel modulator drivers. On the receiver path, 8 photodiodes and two 4-channel TIA arrays, and PAM4 re-timers are used.

Product Details

F-tone P/N OSFP-800G-FR8 Vendor Name F-tone
Form Factor OSFP Max Data Rate 850Gbps(8x 106.25Gbps)
Wavelength 1310nm Max Distance 2km
Modulation Format PAM4 Host Required FEC
Connector MTP/MPO-16 Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type EML Receiver Type PIN
TX Power -3.1~4.0dBm Receiver Sensitivity ˉ-7.1dBm
Operation Temperature 0 to 70～C (32 to 158～F) Maximum Power <>
Protocols CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu Application 800G Ethernet, Data Center Interconnect, Infiniband Interconnects


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
