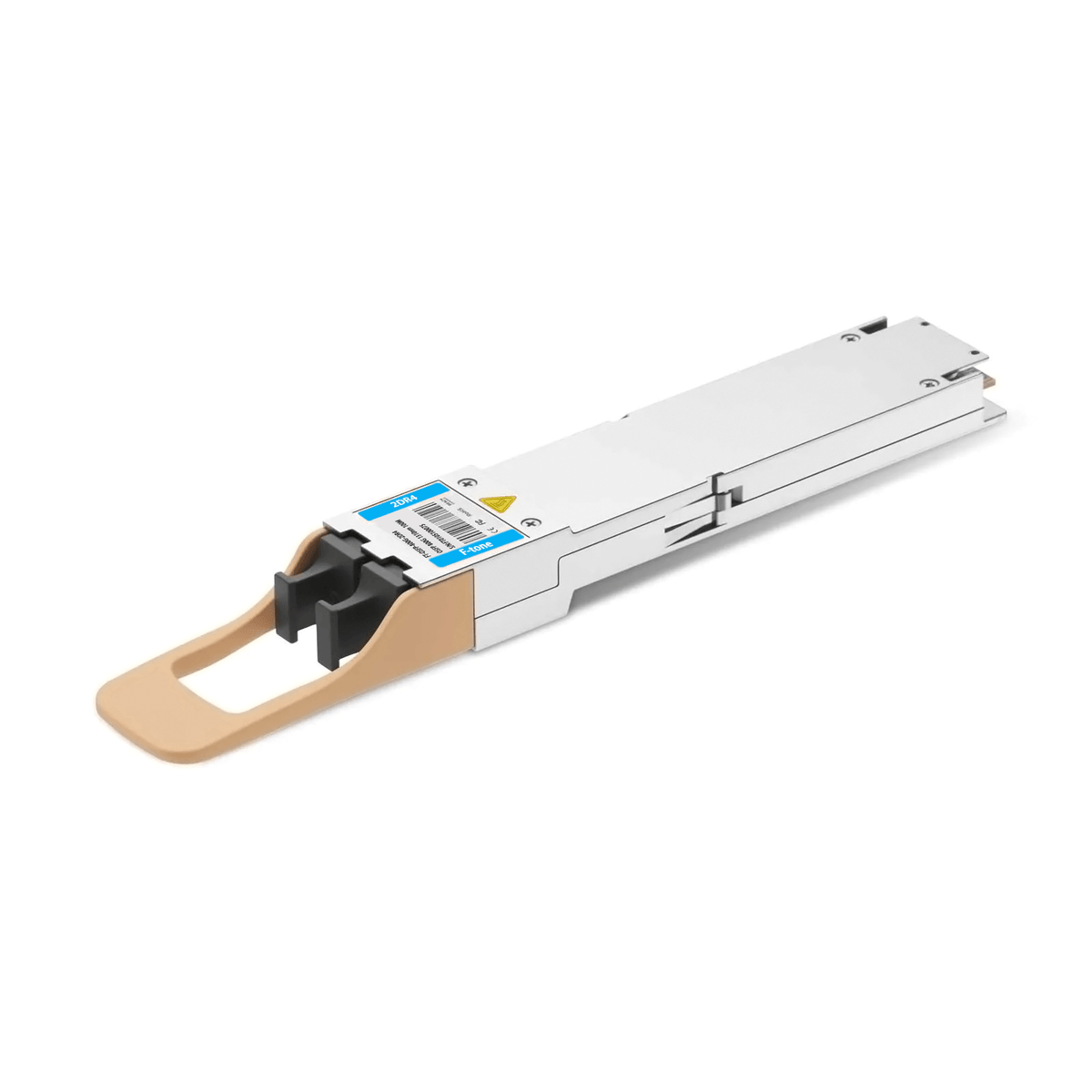

NVIDIA MMA4Z00-NS-FLT Compatible 800Gb/s Twin-port OSFP 2x400G SR8 PAM4 850nm 100m DOM Dual MPO-12 MMF Fiber Transceiver

Part Number: OSFP-800G-SR8NDR-FLT

NVIDIA MMA4Z00-NS-FLT Compatible OSFP 2x400G SR8 Optical Transceiver Module (MMF, 850nm, 100m, Dual MPO-12, Flat Top, DOM)

NVIDIA InfiniBand MMA4Z00-NS Compatible OSFP 800G SR8 PAM4 Optical Transceiver (2x SR4, MMF, 850nm, 50m, Dual MPO-12/APC, DOM, Finned Top)

F-tone OSFP 800G transceiver modules are designed for 800 Gigabit Ethernet links over 60m OM3 or 100m OM4 fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. The transceiver comprises two transmitter/receiver units, each operating at 850nm wavelength. The transmitter path of the module contains a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. The receiver path consists of 8 photodiodes and two 4-channel TIAs with a PAM4 re-timer. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with OSFP MSA.

Quality Certifications

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
