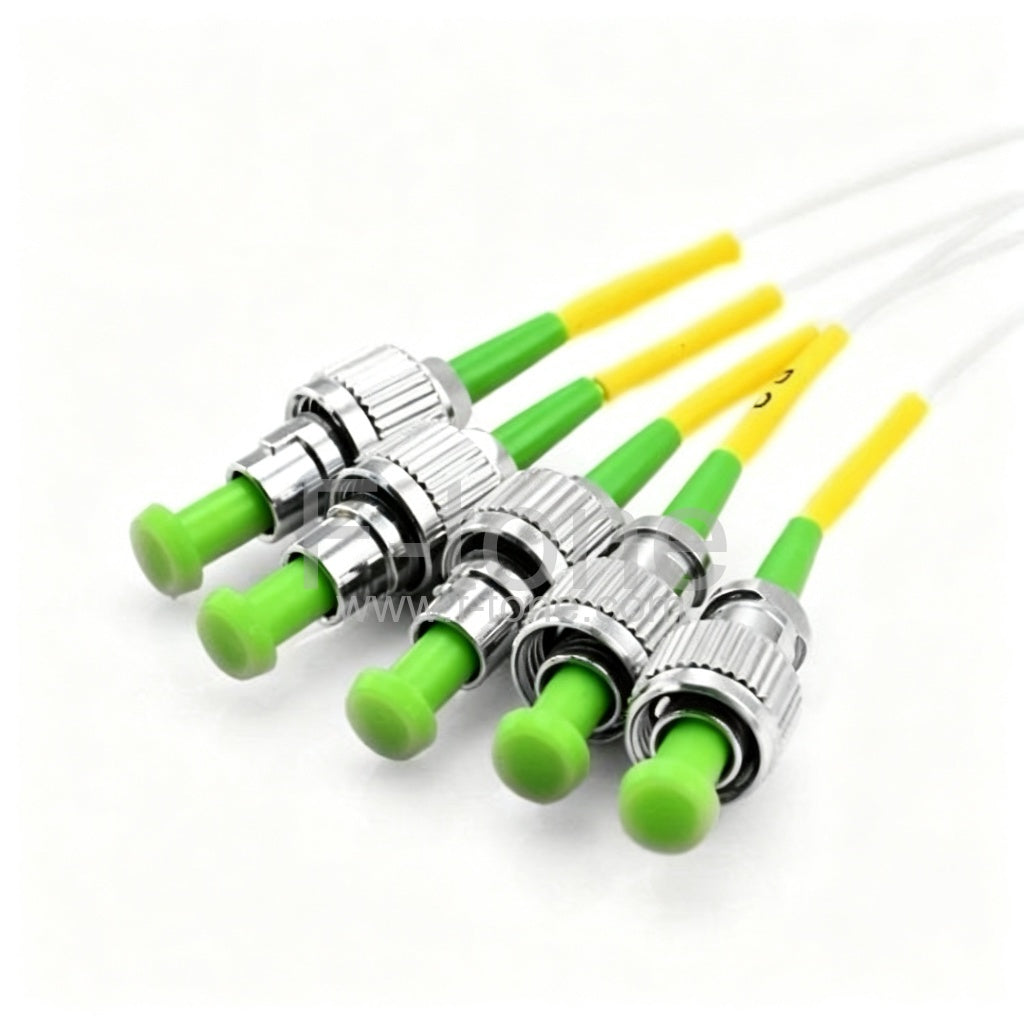

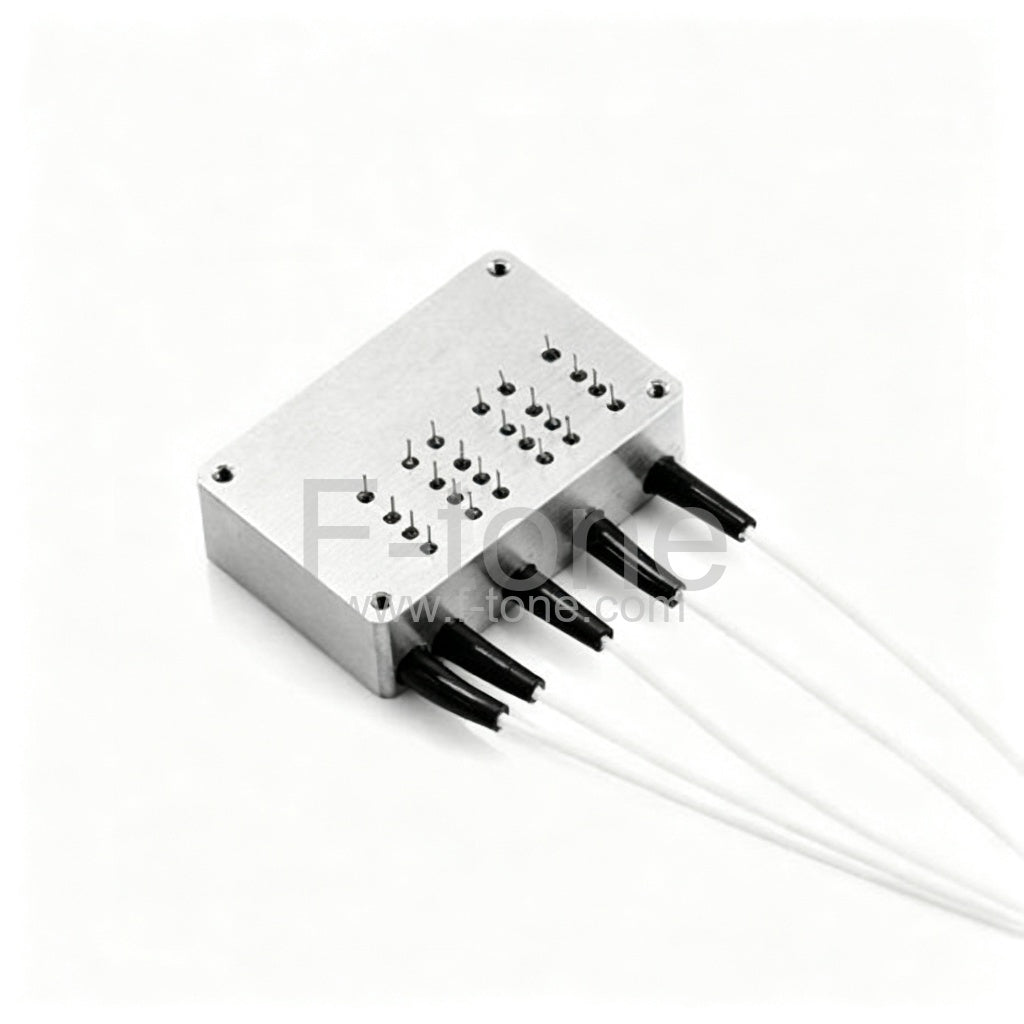

Mini 1x4 Opto-Mechanical Optical Switches

Part Number: OSW-1X4MINI

Optical Switches Mini 1x4 Opto-Mechanical, Non-latching 5V (Latching, 3V optional)

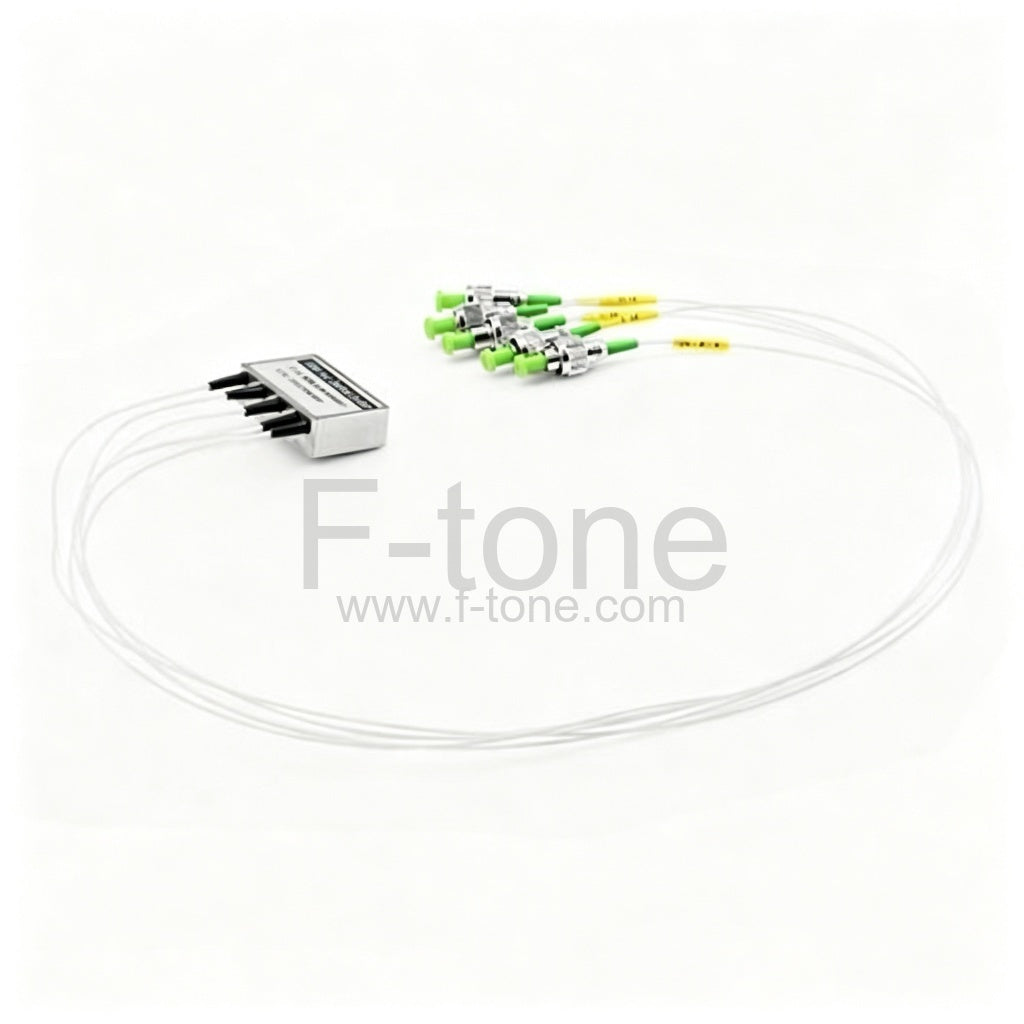

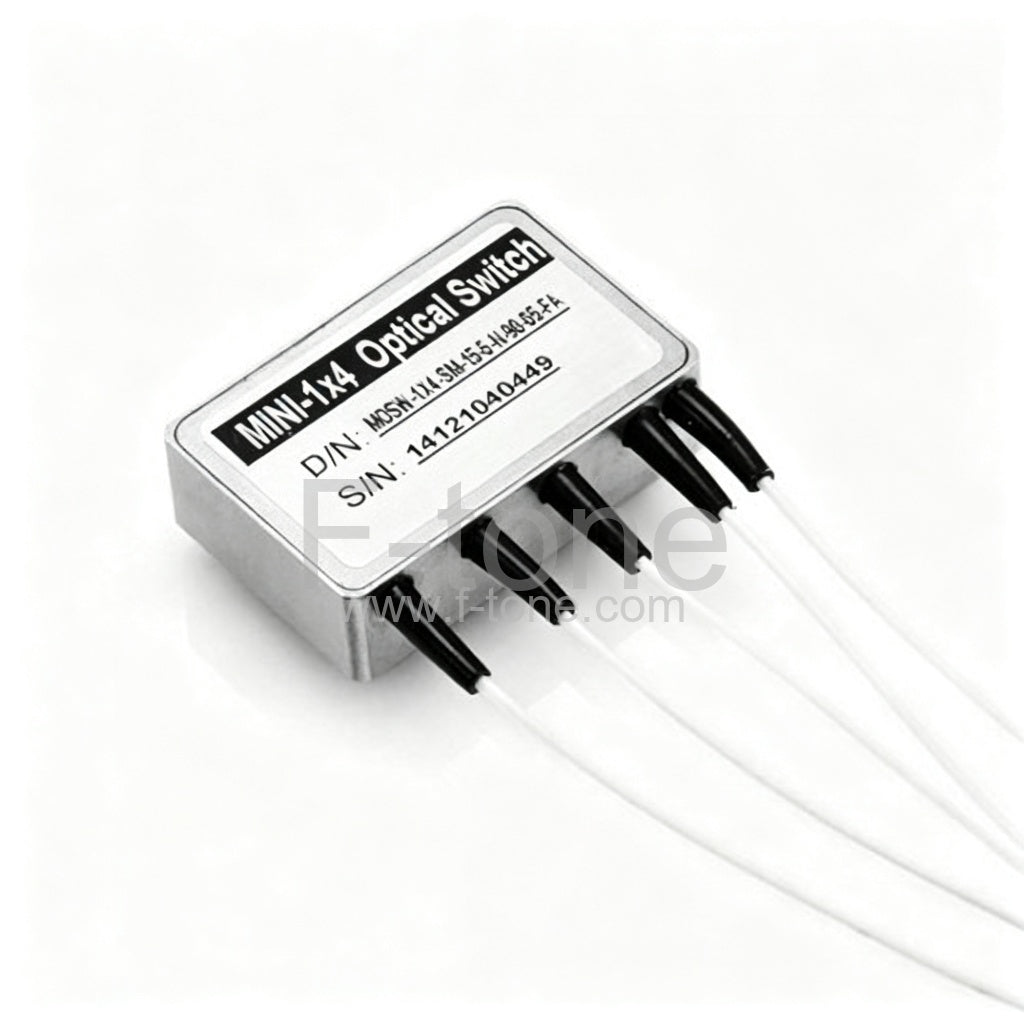

The Mini 1x4 Opto-Mechanical Optical Switches Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 4 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

F-tone offers most affordable high performance Opto-Mechanical Fiber Optic Switches. Our Mechanical Fiber Optic Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Currently configurations includes 1x1, 1x2, 1x4, 1x8, 2x2, 2x2A, 2x2B, and 2x2BA as well as Dual 2x2 and Dual 2x2 Bypass configurations for single mode or multimode fibers. For more information about Opto-mechanical fiber optic switches, please e-email [email protected].

Specifications

Note:
1. All parameters are for device without connectors.
2.Special specifications can be customized according to customer requirements.

Optical Route

Timing Diagram

Mechanical Dimensions (Unit: mm)

Electrical Driving Requirements

The load is a resistive coil which is activated by applying 5V (draw ~ 40mA). Applying too long pulse for the latching version will heat up the device. F-tone also offers TTL, USB, and RS232 interfaces as an option-please contact F-tone sales at [email protected].

Order information: OSW-1x4－A－B－C－D－E－F－G

F-tone provides customized design optical switches to meet special control and applications. Also, F-tone offers modular assemblies that integrate other components to form a full function modules or subsystem. For details, please contact F-tone at [email protected].

Question:

1. Number of switching ports: 1, 2, 3, 4, 8, or 12.
2. What wavelengths are you using?
3. Which core/cladding size are you using?
4. What type of connectors do you need?
5. How long should the fibers be? What size jacketing?
6. Are there any other special requirements?

For example: OSW-1x4－M6－13－5－L－S－15－FP

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
