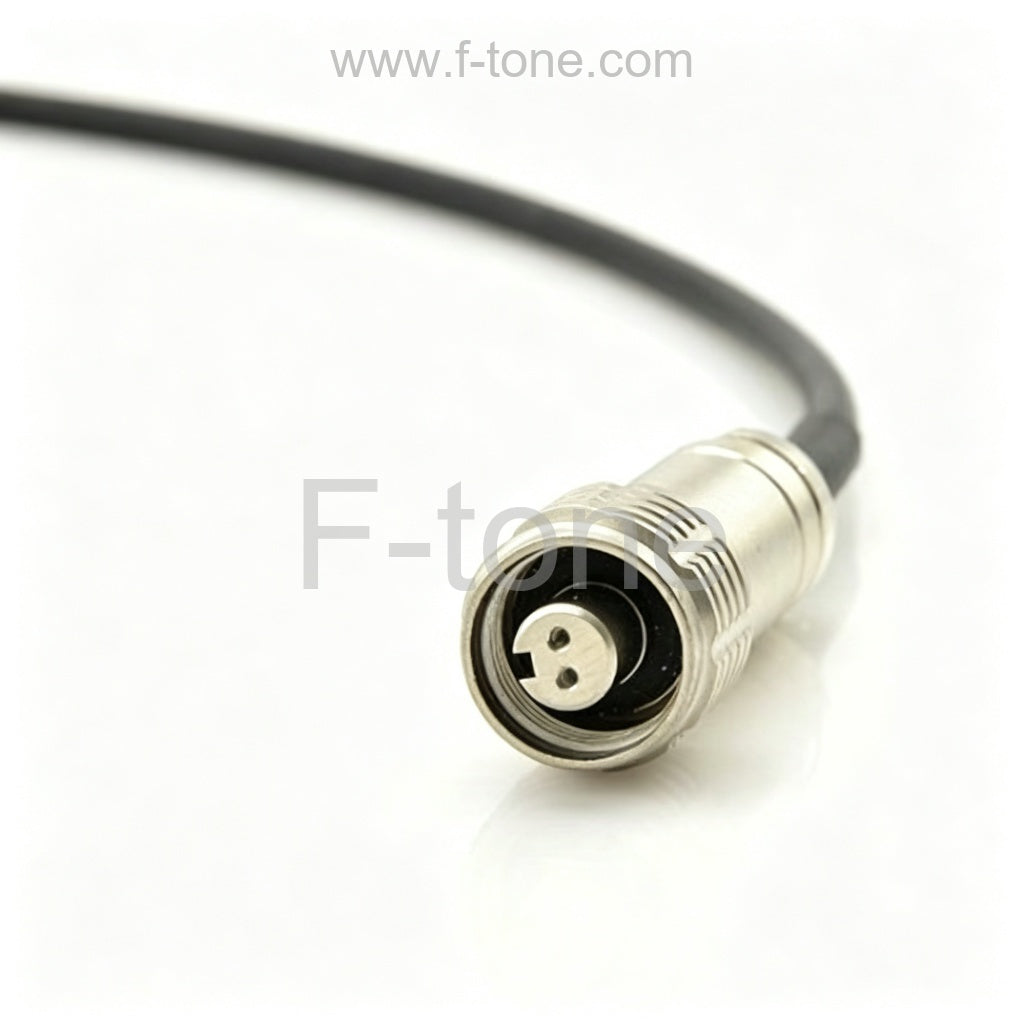

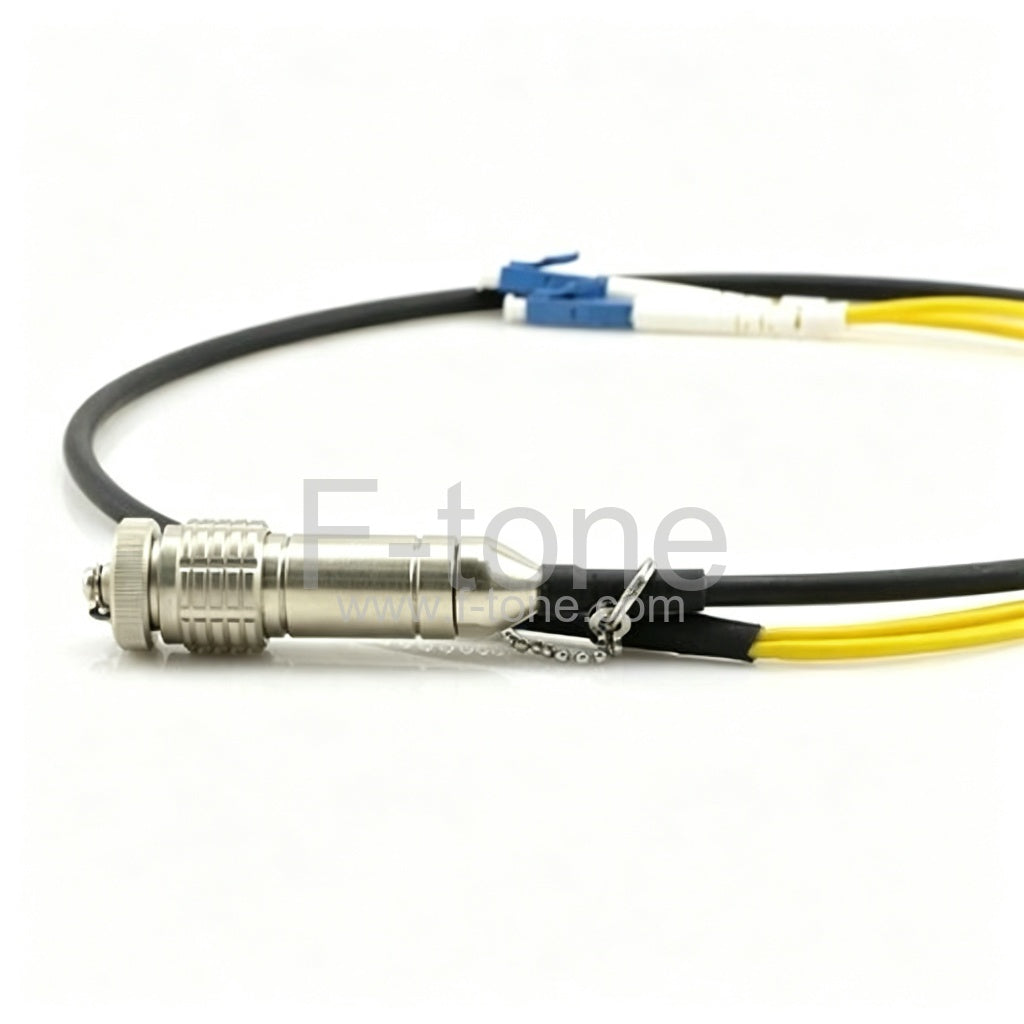

Metal PDLC to LC/SC/ST/FC Fiber Cable Connector

Metal PDLC to LC/SC/ST/FC Fiber Cable Connector

Просмотреть всю информацию

Part Number: PDLC-LC-MC-FM

Metal PDLC Fiber Connector to LC/SC/ST/FC Cable Connector

PDLC Waterproof Assembly

PDLC Assemblies are designed waterproof device for standard duplex LC connector, which are widely used in FTTA and other harsh outdoor application.

Features

  • Standard DLC connector, well connected with standard LC adaptor
  • Available Single mode and Multimode
  • IP67 protection, salt-mist proof, humidity proof, dust proof
  • Aluminum housing ,compact design
  • Broad temperature range and wide range of indoor and outdoor cables
  • Easy operation, reliable and cost-effective installation
  • Cable Length: 1M
  • Connector: Plastic metal to LC/SC/ST/FC

Applications

  • Widely used in FTTA/FTTH
  • Harsh outdoor environments application

Specifications

Insertion Loss ≤0.3dB
Repeatability ≤0.2dB
Cores 2F
Plug/Play ≥ 500 Cycles
Operating Tempreture -40 ～85℃




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
