Part Number: PLC-P-1x8

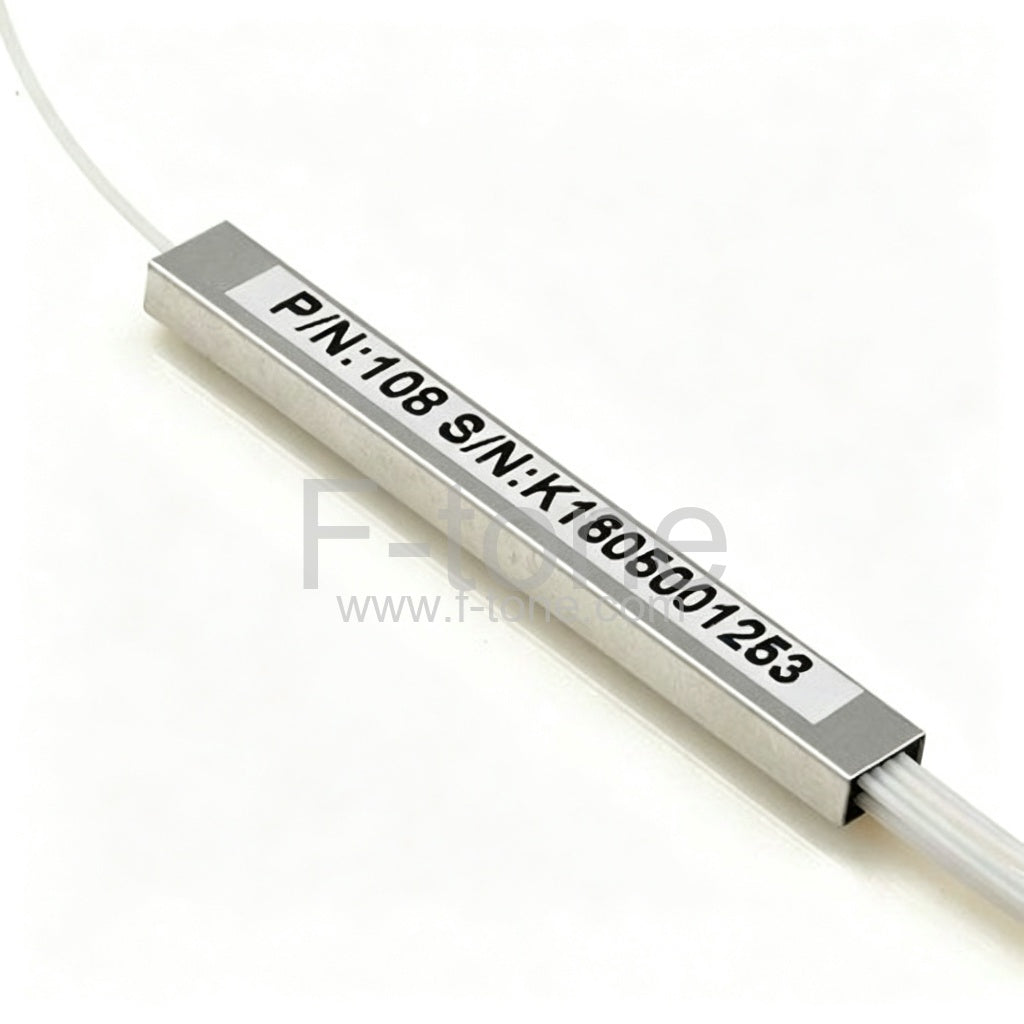

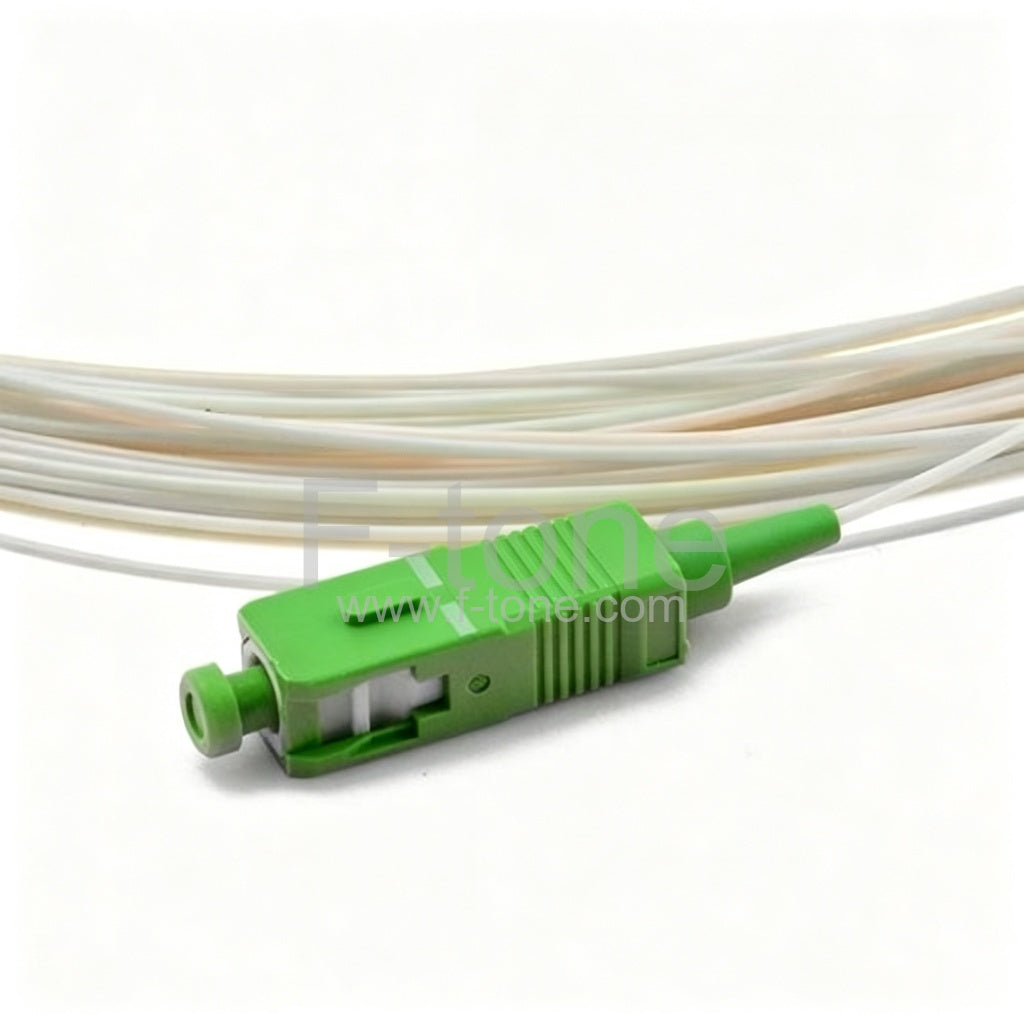

Fiber PLC Splitter 1x8 Mini plug-in Type

PLC Splitter is based on planar lightwave circuit technology. F-tone 1x8 Fiber PLC Splitter can distribute or combine 1 optical signal into 8 outputs fibers.

1x8 Fiber PLC Splitter in Mini plug-in Type, G.657A Fiber, FC, SC, ST & LC connectors for choice, is specialized for plug and play splitter application, features high reliability, reduce installation time,small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting.

Features

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Compact design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1260~1650nm
  • High Reliability and Stability
  • Telcordia GR-1209-CORE-2001 Compliant
  • Telcordia GR-1221-CORE-1999 Compliant
  • Dimension: 130mm*100mm*25mm

Application

  • Installed in Outdoor Cabinet and Floor Terminal Box
  • FTTH Fiber to the home
  • PON network
  • CATV
  • Fiber LAN

Dimension Picture

V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels

Order Information

F-tone provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like.
c. The length of pigtail can be also customized; welcome to contact us for more details.

F-tone provides a various of 1xN and 2xN PLC splitters in Mini plug-in type. The PLC splitters in Mini plug-in Type with its compact structure and small volume, are very convenient for use and can be installed in many places, such as: 19 inch racks, cross connect cabinet and some other devices. For more information about 1x8 Fiber PLC Splitter in Mini plug-in Type, please contact us at [email protected].

  • Our Factory


































Parameter Port Configuration
1X2 1X4 1X8 1X16 1X32 1X64
Fiber Type G.657A
Operating Wavelength(nm) 1260～1650
Insertion Loss(dB) Typical 3.9 7 10.2 13.2 16.2 19.7
Max 4.2 7.4 10.7 13.7 17.1 21.2
Loss Uniformity (dB) Max 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.3 0.3 0.3 0.5 0.5 0.8
Temperature Dependent Loss (-40~+85°C) Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
