Part Number: PLC-T-2x32

Fiber PLC Splitter Tray 2x32

PLC (Planar Lightwave Circuit) Splitters are splitters with an even split ratio from one or two input fibers to multiple output fibers. F-tone 2x32 Fiber PLC Splitter can distribute or combine 2 optical signals into 32 outputs fibers.

2x32 Fiber PLC Splitter Tray, G.657A Fiber, FC, SC, ST & LC connectors for choice, is a packaged system that PLC splitter input fibers and output fibers are preinstalled on a tray which easily fit within ODF (Optical Distribution Frame), the Cross Connection Cabinet and other optical fiber distribution equipment. The splitters are secured within the trays and the trays are tamper-proof to prevent unwanted entry.

F-tone provides a series of 1xN and 2xN(N=2,4,8,16,32,64) Fiber PLC Splitter Trays which feature low insertion loss, good channel-to-channel uniformity, wide operating wavelength range, excellent environmental stability, and now they’re widely used in PON networks to realize optical signal power splitting as a low-cost solution.

Key Features

  • Tamper-Proof Packaging
  • Low insertion loss
  • Low Polarization Dependent Loss
  • Compact design
  • Excellent Mechanical
  • Good channel-to-channel uniformity
  • High Reliability and Stability
  • Wide Operating Wavelength: 1260~1650nm
  • Stability Telecordia GR-1221 and GR-1209
  • Dimension: 345mm*195mm*50mm

Applications

  • Installed in Cross Connection Cabinet and ODF
  • FTTH Fiber to the home
  • PON network
  • CATV
  • Fiber LAN

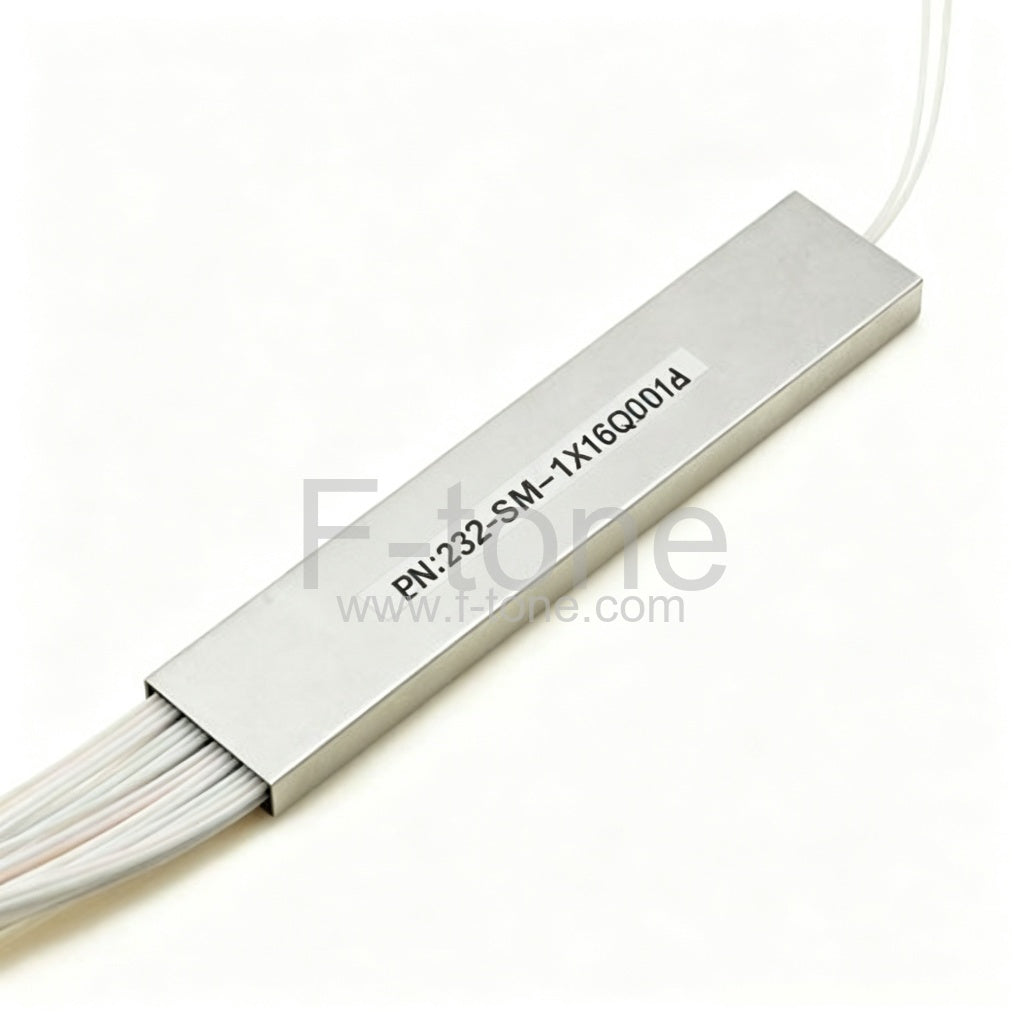

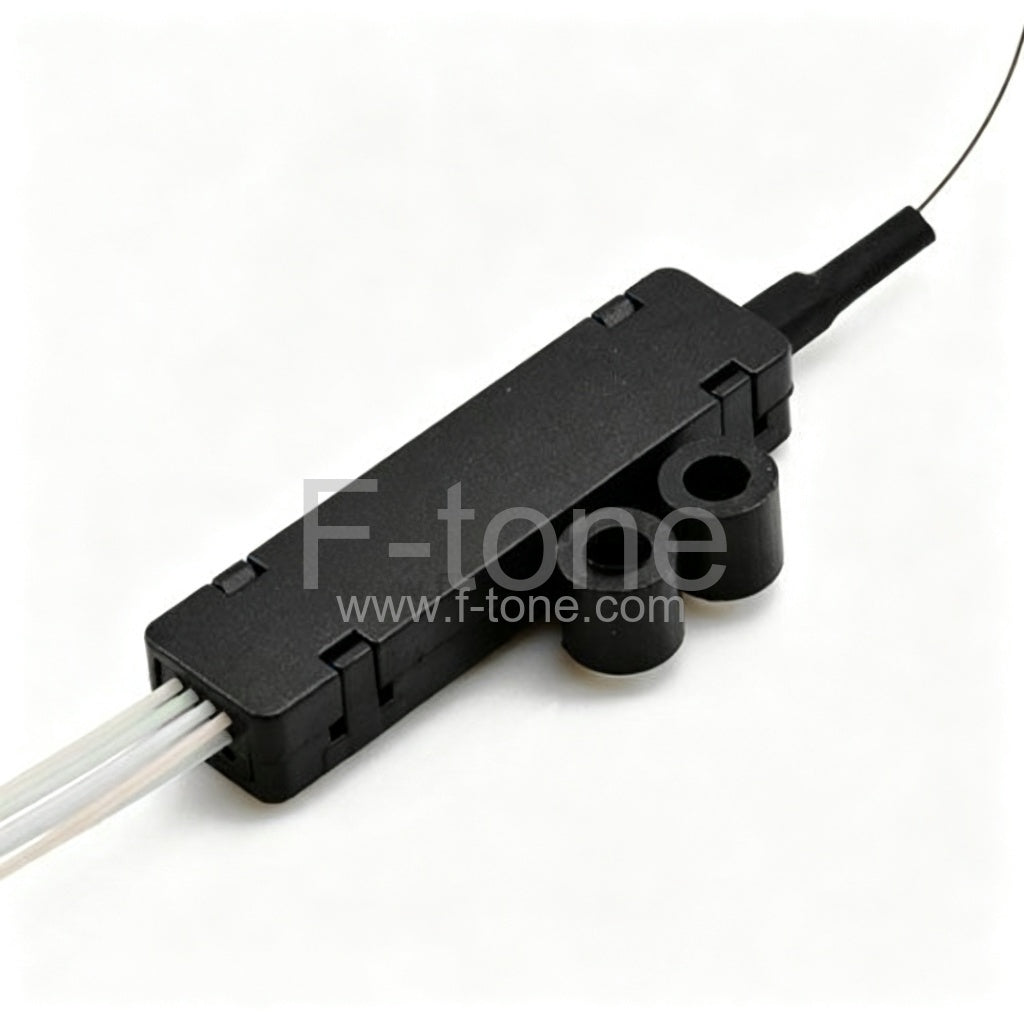

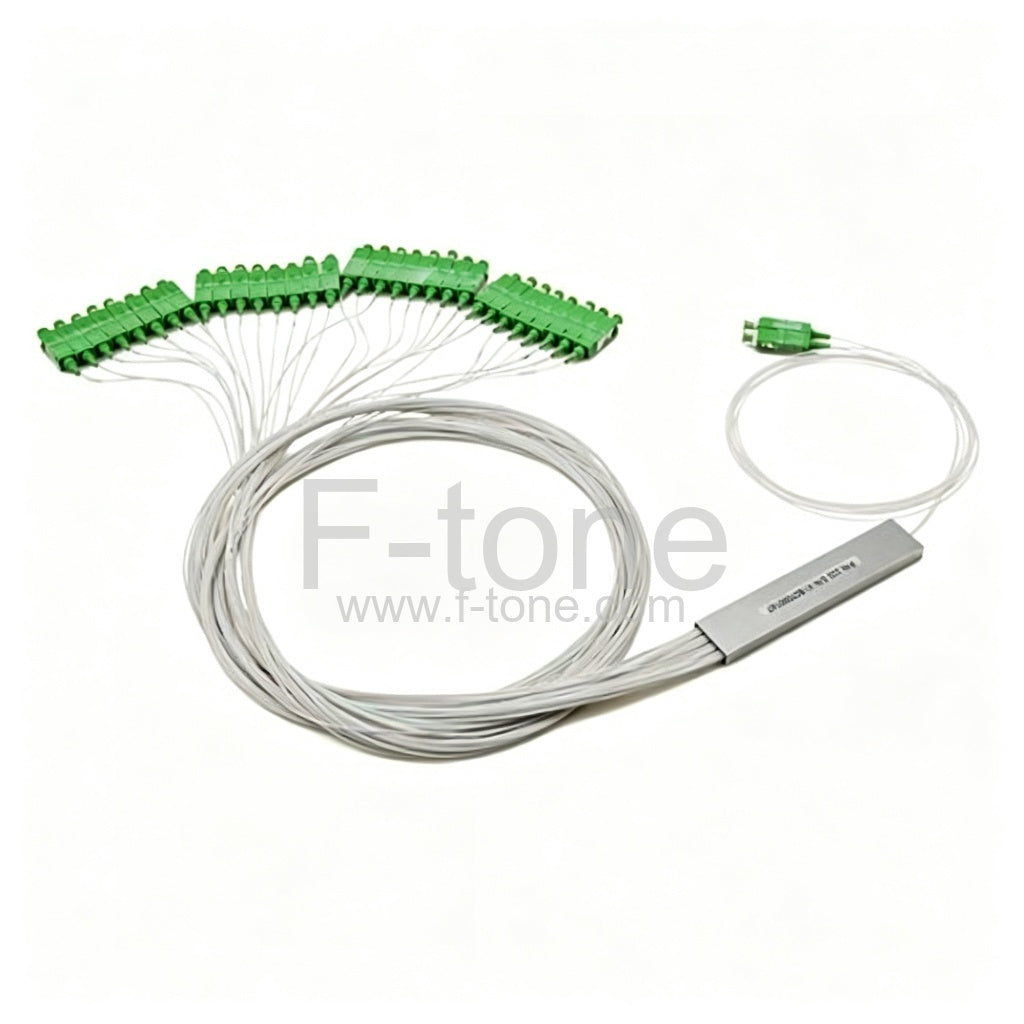

Sample Picture

V.S FBT Coupler, the advantages of PLC are as follows

  • The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
  • High spectral uniformity, can splitter the signals on average
  • Compact structure, small volume
  • The cost advantage is very obvious on many splitter channels

Order Information

F-tone provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:
a.1x2, 1x4, 1x8, 1x16,1x32,1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x64 Versions of splitters are available.
b. SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be selected as you like.
c. The length of pigtail can be also customized; welcome to contact us for more details.

F-tone provides a various of 1xN and 2xN Fiber PLC Splitter Trays. The Fiber PLC Splitter Tray with its compact structure and small volume, is very convenient for use and can be installed in many places, such as: ODF, cross connection cabinet and some other devices. For more information about 2x32 Fiber PLC Splitter Tray, please contact us at [email protected].

  • Our Factory


































Parameter Port Configuration
2X2 2X4 2X8 2X16 2X32 2X64
Fiber Type G.657A
Operating Wavelength(nm) 1260～1650
Insertion Loss(dB) Typical 4.2 7.8 11.2 14.6 17.4 21.4
Max 4.6 8.2 11.6 15 17.9 21.9
Loss Uniformity (dB) Max 1 1.4 1.5 2 2.5 2.5
Return Loss (dB) Min 50 50 50 50 50 50
PDL (dB) Max 0.2 0.2 0.4 0.4 0.4 0.5
Directivity (dB) Min 55 55 55 55 55 55
Wavelength Dependent Loss(dB) Max 0.8 0.8 0.8 0.8 0.8 1
Temperature Dependent Loss(-40~+85°C) Max 0.5 0.5 0.5 0.8 0.8 1
Operating Temperature (°C) -40~+85
Storage Temperature (°C) -40~+85





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
