Part Number: PM-EDFA-23C

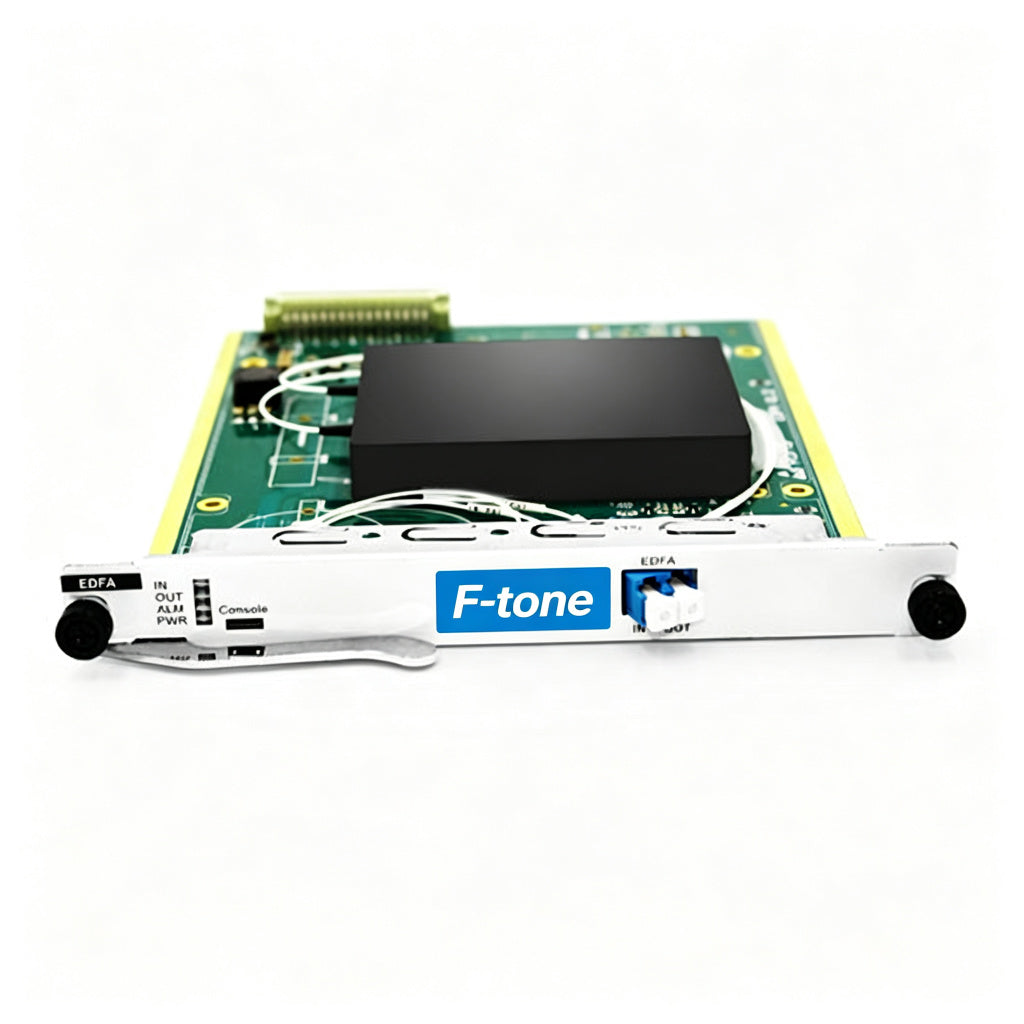

PM EDFA Fiber Optic Amplifier 23dBm Output C-Band 1550nm Benchtop Polarization Maintaining (PM) Fiber Amplifier
Description
This optical amplifier is high stability output Polarization Maintaining (PM) EDFA. The key components of the product are high reliability PUMP laser. A unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuit insures the high stability and reliability output power,the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and monitor are intelligent and easy.
Features
- Output stability <0.1dB
- Single mode PM output
- High stability and reliability: MTBF＞100000 hours
- Perfect status monitoring interface: RS-485 and RS-232
- High precision AGC/APC circuit: power control accuracy typ ±0.05dB
- Intelligent temperature control system: power consumption and hot radiation reduce 30％ than common products
- Compact size and circuit
- OEM is optional
- Compatible with Bellcore GR-1312-CORE
Applications
1. PM fiber sensor
2. Coherent detection
3. Free space optical communication
4. Research and Design area
Example
Mechanical Structure
Size:280×260×112mm
Order Information
| Product | Category | Application | Source | Output power | Wavelength | Voltage | Interface |
|---|---|---|---|---|---|---|---|
| Fiber Amplifier | B:Benchtop | Fiber amplifier | -3~10dBm | 10：10dBm | 1550:1550nm | 1.110VAC | 1: SC/UPC |
| other | 13:13dBm | 2.220VAC | 2: SC/APC | ||||
| 23：23dBm | 3: FC/UPC | ||||||
| 4: FC/APC | |||||||
| 5: LC/UPC | |||||||
| 6: LC/APC |
Specifications
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Wavelength* | λ c | 1530 | 1550 | 1560 | nm |
| λ 1060 | 1030 | 1060 | 1090 | nm | |
| Output power* | Po | ---- | ---- | 200 | mw |
| Input Power* | Pi | ---- | ---- | 10 | mw |
| Gain | G | ---- | 20 | 45 | dB |
| Noise Figure | NF | ---- | ---- | 5.5 | dB |
| Output power stability | Δ Tl | ---- | ±0.05 | ±0.1 | dB |
| Return Loss | RL | 45 | ---- | ---- | dB |
| Input/output Isolation | ISO | 30 | ---- | ---- | dB |
| Input Pump Leakage | PLKin | -30 | ---- | ---- | dB |
| Output Pump Leakage | PLKout | -40 | ---- | ---- | dB |
| PDG | PDG | ---- | ---- | 0.2 | dB |
| PMD | PMD | ---- | ---- | 0.5 | ps |
| Voltage | V | 174 | ---- | 260 | VAC |
| Comsunption | Pc | ---- | ---- | 15 | W |
| Operating Temperature | Tw | 0 | ---- | 40 | ℃ |
| Storage Temperature | Ts | -40 | 80 | ℃ |
*Optional
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
