Polarization Maintaining Fiber Array (PM FA)

Polarization Maintaining Fiber Array (PM FA)

Просмотреть всю информацию

Part Number: PM-FAU-X

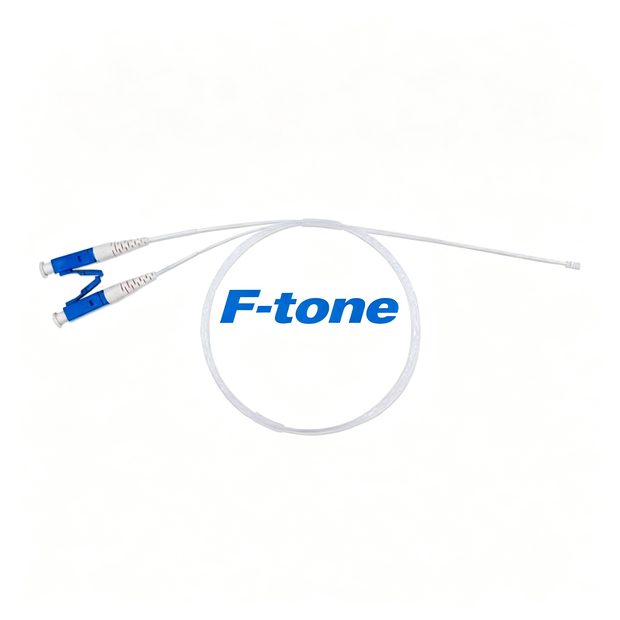

Polarization Maintaining Fiber Array (PM FA)

PM FA is a Polarization-Maintaining fiber placed in the V-Groove on the arraysubstrate to achieve high-density parallel transmission by maintaining the samepolarization direction.

Compared with ordinary fiber arrays, PM FA requires high-precision processing to ensure accurate alignment of the polarization states on bothends of the connector, and to ensure high-precision positions and angles of eachchannel of the FA. PM FA is widely used in Coherent transmission,PM opticalwaveguide devices, fiber sensing.

Feature


·High extinction ratio (≥18dB)
-High precision pitch core(pitch error≤0.5um)·Custonized available
·GR1221,GR1209 and RoHS compliant

Specification

ltems Specs
Fiber Spacing(um) 127 or 250 or customized
Fiber Core Position Tolerance (um) ≤0.5 or customized
Fiber Type PM 1310nm 1550nm or customized
Polishing Angle (°) 0°~45°
Fiber Customized
Extinction ratio ≥18dB
Standards Comply with GR1209/1221,ROHS
Operating temperature(RC) -5~70


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
