Part Number: PM-ILP-1310

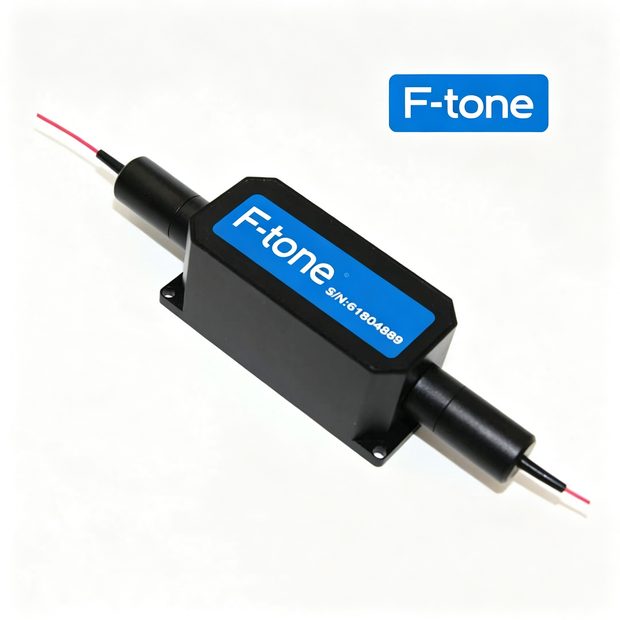

polarization-maintaining In-line Polarizer 1310nm

Features

  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Reliability
  • High Stability

Applications

  • Communication Systems
  • Test Instrumentations
  • Fiber Sensor
  • Research

Specifications

Parameters Unit Value
Center Wavelength nm 1310, 1550 1064 980 850
Operating Wavelength Range nm ±50 ±30 ±10 ±10
Typ.Insertion Loss at 23℃ dB 0.3 0.4 0.7 0.8
Max.Insertion Loss at 23℃ dB 0.5 0.6 0.9 1
Min.Return Loss dB 50 50 50 50
Typ.Extinction Ratio at 23℃ dB 30 30 28 28
Min.Extinction Ratio at 23℃ dB 28 28 25 25
Max.Optical Power(CW) mW 300
Max.Tensile Load N 5
Fiber Type - PM1550 PM980 PM980 PM850
SMF-28E Hi1060 Hi1060 SM800
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower;
The default connector key is aligned to slow axis;


Package Dimension



Ordering Information

ILP-1111-2345-666

1111 -Center Wavelength: 1550=1550nm,1310=1310nm,......,0850=850nm
2 -Fiber type for input: 0=Panda fiber, 1=smf-28e, 2=hi1060,
3 -Fiber type for output: 0=Panda fiber, 1=smf-28e, 2=hi1060,
4 -Pigtail type: 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube
5 -Fiber length: 0=0.8m,1=1m
666 -Connector type: 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC


Parameters Unit Value
CenterWavelength nm 1310,1550 1064 980 850
OperatingWavelengthRange nm ±50 ±30 ±10 ±10
Typ.InsertionLossat23℃ dB 0.3 0.4 0.7 0.8
Max.InsertionLossat23℃ dB 0.5 0.6 0.9 1
Min.ReturnLoss dB 50 50 50 50
Typ.ExtinctionRatioat23℃ dB 30 30 28 28
Min.ExtinctionRatioat23℃ dB 28 28 25 25
Max.OpticalPower(CW) mW 300
Max.TensileLoad N 5
FiberType - PM1550 PM980 PM980 PM850
SMF-28E Hi1060 Hi1060 SM800
OperatingTemperature ℃ -5~+70
StorageTemperature ℃ -40~+85
Fordevicewithconnector,ILis0.3dBhigher,RLis5dBlower,ERis2dBlower;
Thedefaultconnectorkeyisalignedtoslowaxis;



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
