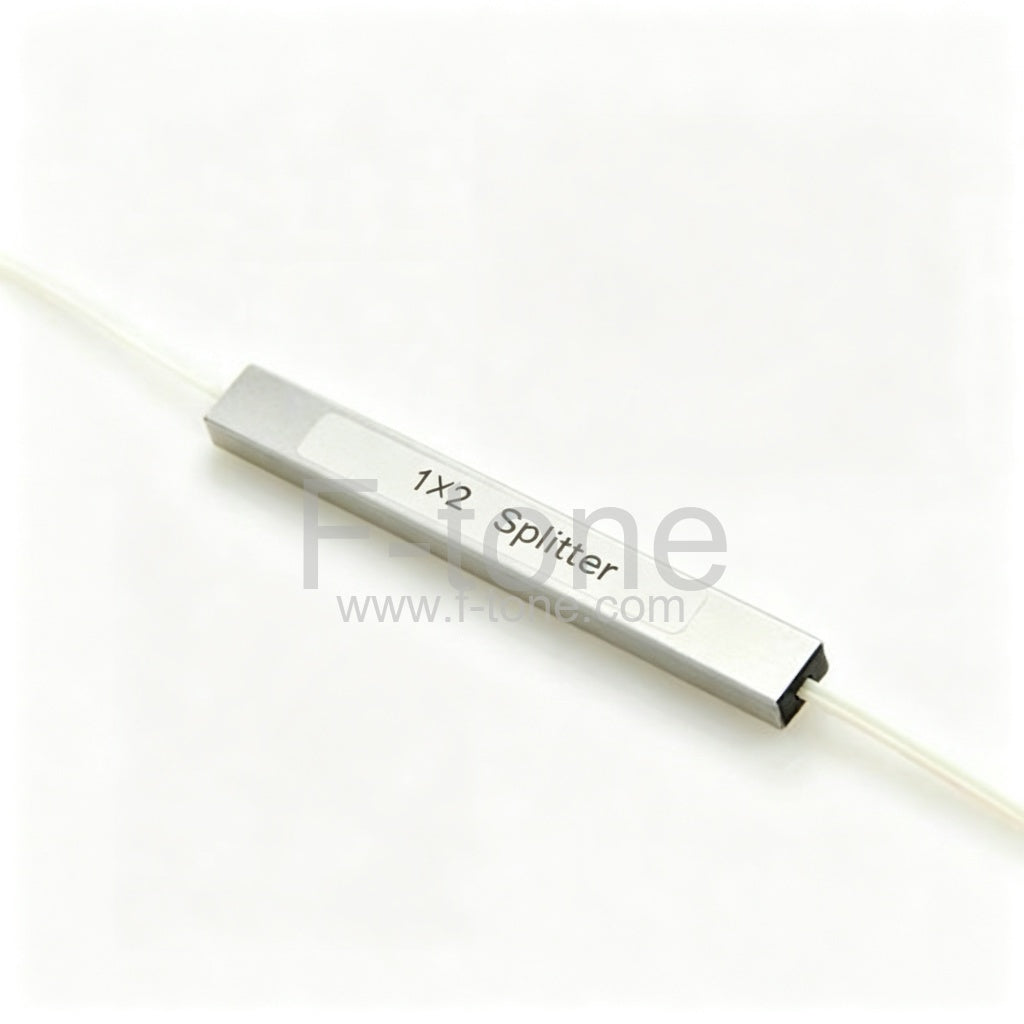

1x2 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

1x2 Polarization Maintaining Blockless Fiber PLC Splitter Slow Axis

Просмотреть всю информацию

Part Number: PM-PLC-BL-1x2

Polarization Maintaining Fiber PLC Splitter Blockless Package Slow Axis 1x2 PM PLC Fiber Splitter

Polarization Maintaining Planar Light wave Circuit (PLC) splitter is a type of polarization maintaining optical power management device that is fabricated using silica optical waveguide technology. PM PLC splitter maintains polarization of input optical signal. Polarization maintaining optical splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.

F-tone offers a large selection of polarization maintaining (PM) 1xN and 2xN optical splitter modules. PM splitters are supplied in configurations with 2, 4, 8 and 16 output channels. PM fibers are bonded to the PLC circuit chips using precision multi-fiber alignment techniques. Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range.

Features

  • Wide Band and Operating Temperature
  • High polarization extinction ratio
  • Good Splitting Uniformity
  • Low insertion loss
  • The length of pigtail: 1.0m as default(also customized)
  • The Axis: Slow Axis as default, Fast Axis is also available

Applications

  • Splitting or Combining Output Power of Transmitters Using Polarization Maintaining Fiber
  • Excellent for laboratory and industrial applications
  • Aerospace and Military Application
  • Fiber Sensor
  • Fiber Laser
  • Test Bed

Dimensions Diagram

Test Report

The test report will be provided when the products are delivered.


The test reprot is 1x4 for reference

Specifications

Parameters Specifications Unit Notes
ChannelNumber 1×2 Accord with

RoH Srequirement
OperationWavelength 1310 or 1550 nm
InsertionLoss ≤4.4 dB
Uniformity ≤0.4 dB
PER ≥18 dB
ReturnLoss ≥50 dB
Directivity ≥55 dB
FiberType Fujikura1310 or 1550nm PM fiber
PigtailType Input：PMfiberwith0.9mmloosetube
Output：PMfiberwith0.9mmloosetube
InputLength ≥1.0 m
OutputLength ≥1.0 m
Connector FC/UPC
FiberMark Input：white
Output：blue、orange
PackageDimension 60(L)×7.0(W)×4.0(H) mm
OperationTemperature -40~+85 ℃
StorageTemperature -40~+85 ℃


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
