Part Number: PM460-BL-1x8

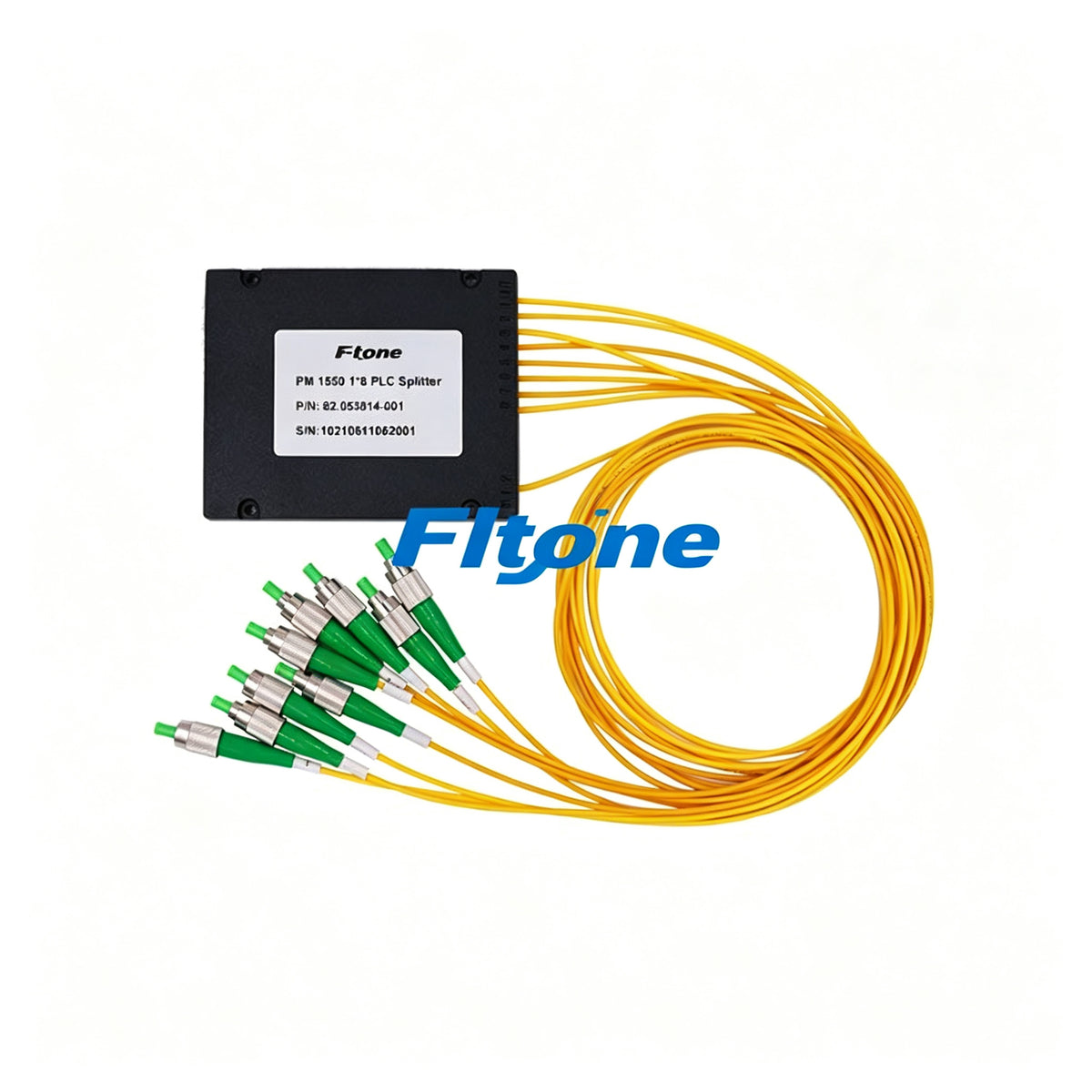

1x8 PM460 Polarization Maintaining(PM) Splitter Slow Axis 1x8 Fiber Splitter 460nm with Plastic ABS Box Package, 1x8 PM460 Fiber Splitter

Polarization Maintaining Planar Light wave Circuit (PLC) splitter is a type of polarization maintaining optical power management device that is fabricated using silica optical waveguide technology. PM PLC splitter maintains polarization of input optical signal. Polarization maintaining optical splitter Pm splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.

F-tone offers a large selection of polarization maintaining (PM) 1xN and 2xN optical splitter modules. PM splitters are supplied in configurations with 2, 4, 8 and 16 output channels. PM fibers are bonded to the PLC circuit chips using precision multi-fiber alignment techniques. Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range.

Features

  • Wide Band and Operating Temperature
  • High polarization extinction ratio
  • Good Splitting Uniformity
  • Low insertion loss
  • The length of pigtail: 1.0m as default(also customized)
  • The Axis: Slow Axis as default, Fast Axis is also available

Applications

  • Splitting or Combining Output Power of Transmitters Using Polarization Maintaining Fiber
  • Excellent for laboratory and industrial applications
  • Aerospace and Military Application
  • Fiber Sensor
  • Fiber Laser
  • Test Bed

Mechanical Drawing

1x8: 100*80*10 mm

Test Report

The test report will be provided when the products are delivered.


The test report is 1X16 just for reference

Specifications

Parameters Specifications Unit Notes
ChannelNumber 1×8 AccordwithRoHSrequirement
OperationWavelength 460 nm
InsertionLoss ≤11.1 dB
Uniformity ≤0.8 dB
PER ≥16 dB
ReturnLoss ≥50 dB
Directivity ≥55 dB
FiberType PM460-HP fiber
PigtailType Input: PM fiber with 0.9mm or 2.0mm or 3.0mm loose tube
Output: PM fiber with 0.9mm or 2.0mm or 3.0mm loose tube
InputLength ≥1.0 m
OutputLength ≥1.0 m
Connector FC/APC
FiberMark Input: white
Output: blue/orange/green/brown/gray/white/red/black
PackageDimension 100(L)×80(W)×10(H) mm
OperationTemperature -40~+85 ℃
StorageTemperature -40~+85 ℃


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
