Part Number: PMBPF-1064-2nm-5

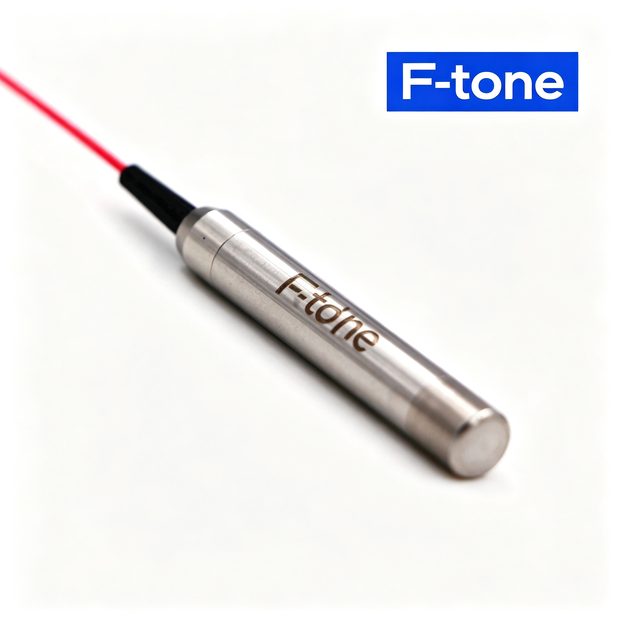

Polarization Maintaining fiber Band pass Filter 1064nm 2nm Pass Band Width

Features

  • Low Insertion Loss
  • Fiber Laser
  • High Stability and Reliability
  • Fiber Amplifier
  • High Extinction Ratio
  • Testing Equipment

Specifications

2nm Pass Band Width
Parameters Unit Values
Operating Wavelength mm 1064
Insertion Loss over CWL+/-1nm dB ≤1.2
Pass Band Width @ 3dB nm ≥4
Stop Band Width @ 25dB nm ≤10
Extinction Ratio dB ≥20
Return Loss dB ≥50
Power Handling CW mW ≤300
Fiber Type PM 980
Operating Temperature ℃ 0 ~ +65
Storage Temperature ℃ -40 ~ +85
Dimensions mm φ5.5×L35

Package Dimension



Ordering Information

①①①①-②②-③③③-④-⑤-⑥⑥

① Wavelength 1064
② Pass Band Width 02=2nm; 05=5nm; 08=8nm;
③ Pigtail Type 250=250um Bare Fiber; 900=900um Loose Tube;
④ Fiber Type 5=PM 980;
⑤ Length 1=1m;
⑥ Connector NE=None; FA=FC/APC; FC=FC/UPC; SA=SC/APC; SC=SC/UPC; XX=Other;




2nmPassBandWidth
Parameters Unit Values
OperatingWavelength mm 1064
InsertionLossoverCWL+/-1nm dB ≤1.2
PassBandWidth@3dB nm ≥4
StopBandWidth@25dB nm ≤10
ExtinctionRatio dB ≥20
ReturnLoss dB ≥50
PowerHandlingCW mW ≤300
FiberType PM980
OperatingTemperature ℃ 0~+65
StorageTemperature ℃ -40~+85
Dimensions mm φ5.5×L35



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
