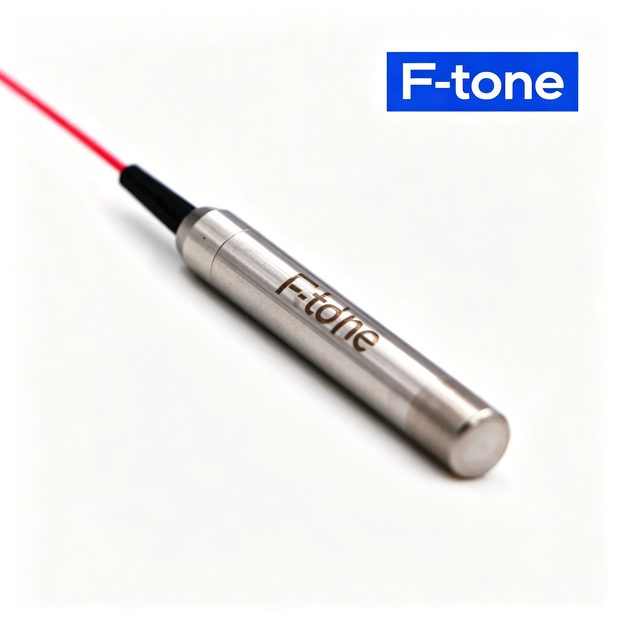

1060nm Polarization Maintaining Faraday Rotator Mirror

1060nm Polarization Maintaining Faraday Rotator Mirror

Просмотреть всю информацию

Part Number: PMFRM-1060

1060nm Polarization Maintaining Faraday Rotator Mirror

Features

  • Low Insertion Loss
  • High Return Loss
  • High Reliability
  • High Stability

Applications

  • Communication Systems
  • Test Instrumentations
  • Fiber Sensor
  • Research

Specifications

Parameters Unit Value
Center Wavelength nm 1310 or 1550
Operating Wavelength Width nm ±15
Max.Insertion Loss dB 0.6
Faraday Rotation Angle for CWL deg 45
Max.Rotation Angle Tolerance at 23 ℃ for CWL deg ±3
Min.Extinction Ratio dB 20
Max.PMD ps 0.05
Power Handling mW 500
Fiber Type - PM Panda fiber
Max.Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85
For device with connector, IL is 0.3dB higher, RL is 5dB lower;

Package Dimension

Ordering Information

1 Center wavelength: 1550=1550nm,1310=1310nm,......,0850=850nm
2 Fiber type for output: 1=PM Panda fiber
3 Pigtail type: 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0 loose tube
4 Fiber length: 0=0.8m,1=1m
5 Connector type: 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC

Parameters Unit Value
CenterWavelength nm 1310or1550
OperatingWavelengthWidth nm ±15
Max.InsertionLoss dB 0.6
FaradayRotationAngleforCWL deg 45
Max.RotationAngleToleranceat23℃forCWL deg ±3
Min.ExtinctionRatio dB 20
Max.PMD ps 0.05
PowerHandling mW 500
FiberType - PMPandafiber
Max.TensileLoad N 5
OperatingTemperature ℃ -5~+70
StorageTemperature ℃ -40~+85
Fordevicewithconnector,ILis0.3dBhigher,RLis5dBlower;



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
