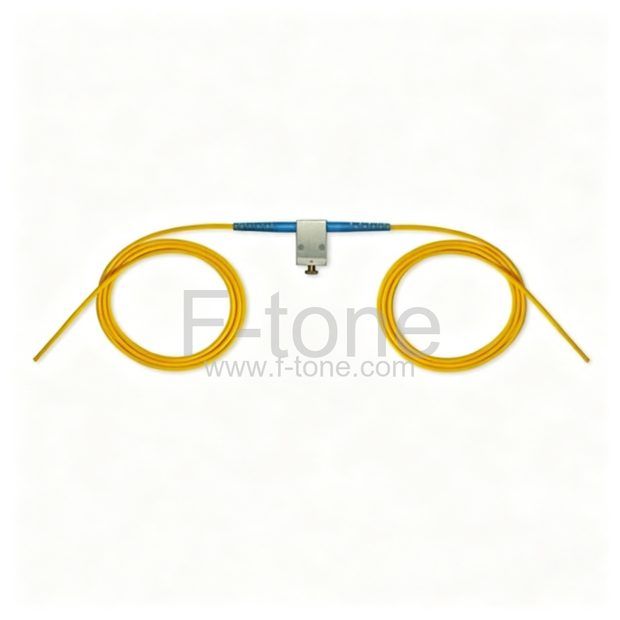

Part Number: PMIS-FCA-780X-1

Polarization Maintaining Isolator 1M FC/APC 780nm 900um Single/Dual Stage High Isolation PM780 Fiber

The High Power Isolator series products include high power isolator and high power collimator.The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc.1310/1480/1550nm High Power Polarization Maintaining Isolator is one of in-line type isolator.They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.

Features

  • Low insertion loss
  • High isolation and Extinction Ratio
  • High stability and reliability

Applications

  • Fiber Amplifier
  • Fiber sensor
  • Fiber Laser

Specifications

Parameter Value
Center wavelength λc (nm) 780
Bandwidth(nm) ±10
Peak isolation (dB) 32
Isolation at λc 23℃(dB) ≥25
Type Insertion Loss at 23℃(dB) 0.8
Insertion Loss at 23℃(dB) ≤1.0
Extinction Ratio (dB) ≥20
Return loss (Input/output) (dB) ≥50/50
Power handling (mW) ≤300
Fiber Type Panda fiber
Operating temperature (℃) -5~+50
Storage temperature (℃) -20 ~ +75
Package(mm) 118*32*32

Above specifications are for devices without the connectors.

Dimension


Order Information

PMIS Wavelength Axis Alignment Pigtail Type Fiber Type Length Connector Package size
PMIS 780nm F=Fast Axis blocked
B=Both of axis working
S=Slow axis working		 250=250um bare fiber
900=900um loose tube
3.0=3.0mm loose tube
2.0=2.0mm loose tube		 5=Panda fiber 0.8=0.8
1= 1m
XX=Other		 NE=None
FA=FC/APC
FC=FC/UPC
SA=SC/APC
SC=SC/UPC
LC=LC/UPC
LA=LC/APC
XX=Other		 55x5.5mm


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
