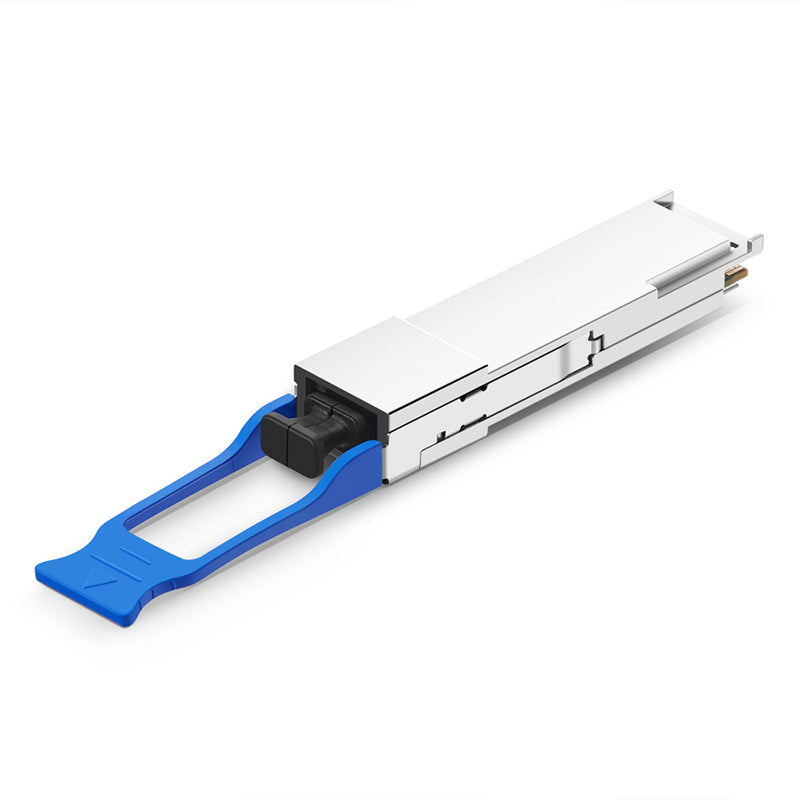

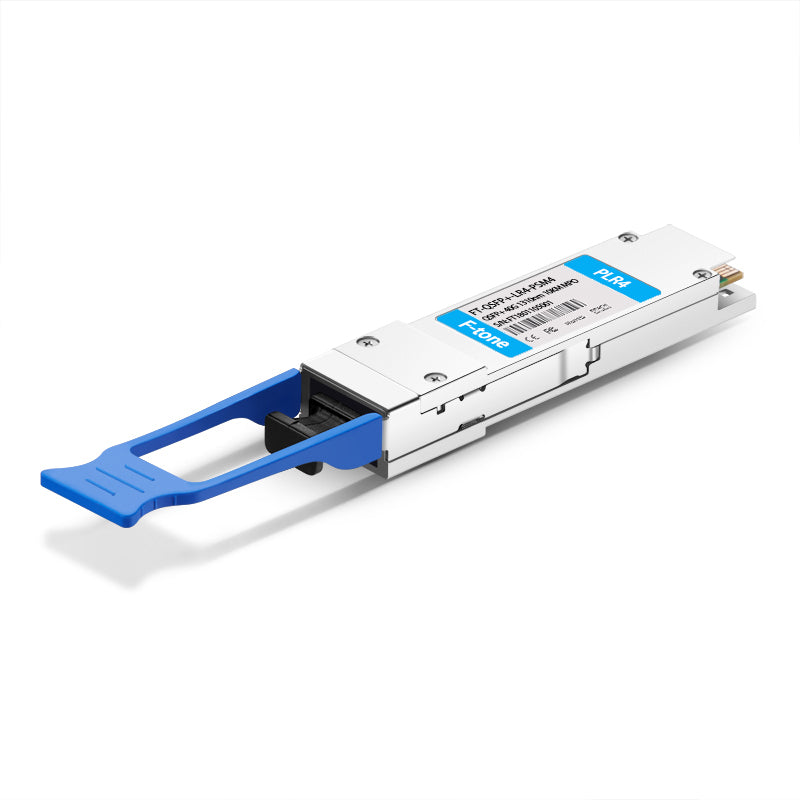

Finisar FTL4P1QE1C Compatible 4x10GBASE-LR QSFP+ Transceiver

Finisar FTL4P1QE1C Compatible 4x10GBASE-LR QSFP+ Transceiver

Просмотреть всю информацию

Part Number: QSFP-40G-PLR4-10

FTL4P1QE1C 4x10GBASE-LR QSFP+ Transceiver


Equivalent Finisar Part Number(s): FTL4P1QE1C (SMF, 1310nm, 10km, MPO/MTP, DOM)


Finisar FTL4P1QE1C Compatible QSFP+ transceiver support link lengths of 10km at a wavelength of 1310nm.
It primarily enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP connectors and can also be used in a 4x10G module for interoperability with 40GBASE-LR4 interfaces.
Digital optical monitoring (DOM) support is present to allow access to real-time operating parameters, which means, we are now by using DOM capable of performing transceiver monitoring and troubleshooting operations.
It is guaranteed to be 100% compatible with the equivalent Finisar optics module. F-tone.COM stands behind the quality of our products and proudly offer a limited lifetime warranty.

Details

Form Type: QSFP+ Data Rate: 40 Gbps
Wavelength : 4 x10G 1310nm Max Cable Distance: 10km
Interface : MPO/MTP Optical Components: DFB CWDM
Cable Type: SMF DOM Support: YES
Commercial Temperature Range: 0 to 70°C (32 to 158°F) HTS-Harmonized Code: 8517706000



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
