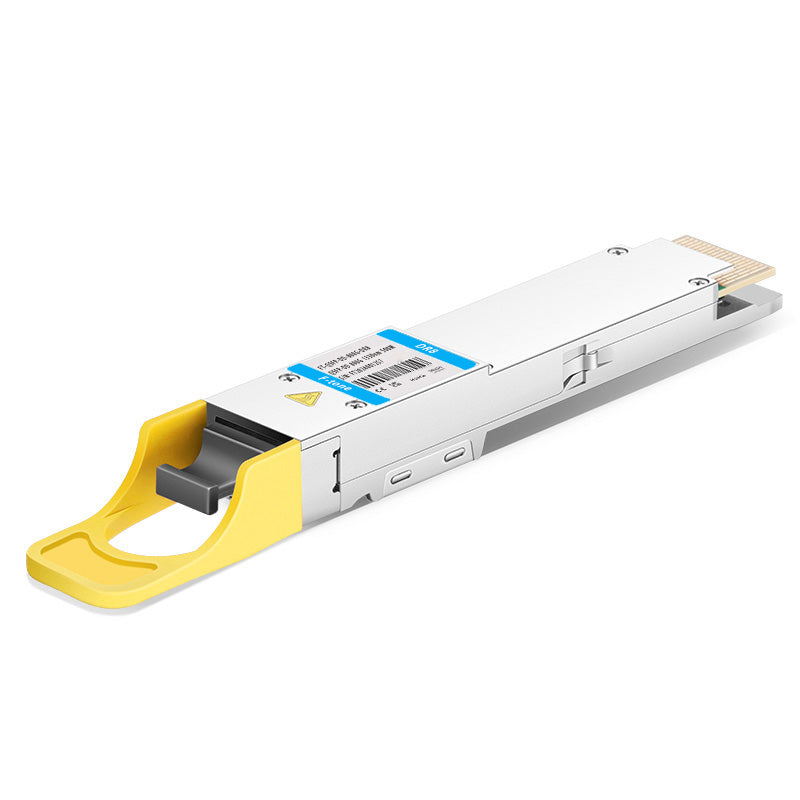

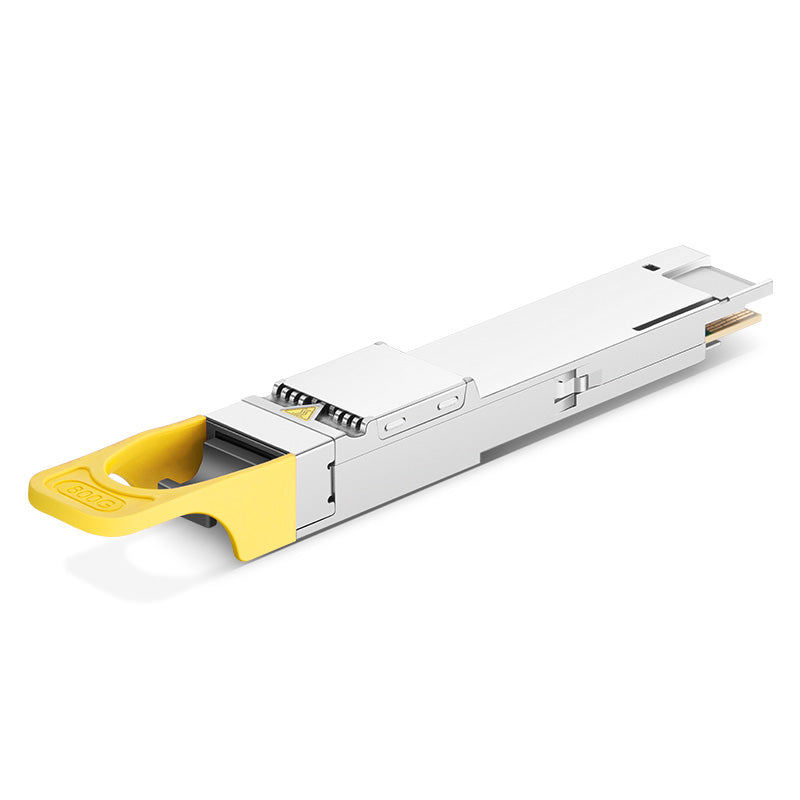

QSFP-DD 8x100G FR/DR8+ PAM4 1310nm 2km DOM Dual MPO-12 SMF Optical Transceiver

QSFP-DD 8x100G FR/DR8+ PAM4 1310nm 2km DOM Dual MPO-12 SMF Optical Transceiver

Просмотреть всю информацию

Part Number: QSFP-DD-800G-FR8D-FM

QSFP-DD-800G-FR8D QSFP-DD 8x100G FR/DR8+ Optical Transceiver Module (SMF, 1310nm, 2km, Dual MPO-12, DDM)

F-tone QSFP-DD 8x100G FR/DR8+ transceiver module is designed for 800 Gigabit Ethernet links over 2km of single-mode fiber. The module contains 8 parallel channels at a center wavelength of 1310nm, each operating at 106.25G. The electrical interface of the module complies with the 800GAUI-8 interface defined by IEEE 802.3ck and complies with QSFP-DD MSA.

Product Details

F-tone P/N QSFP-DD-800G-FR8D Vendor Name F-tone
Form Factor QSFP-DD Max Data Rate 850Gbps(8x 106.25Gbps)
Wavelength 1310nm Max Distance 2km
Modulation Format PAM4 Host Required KP4-FEC

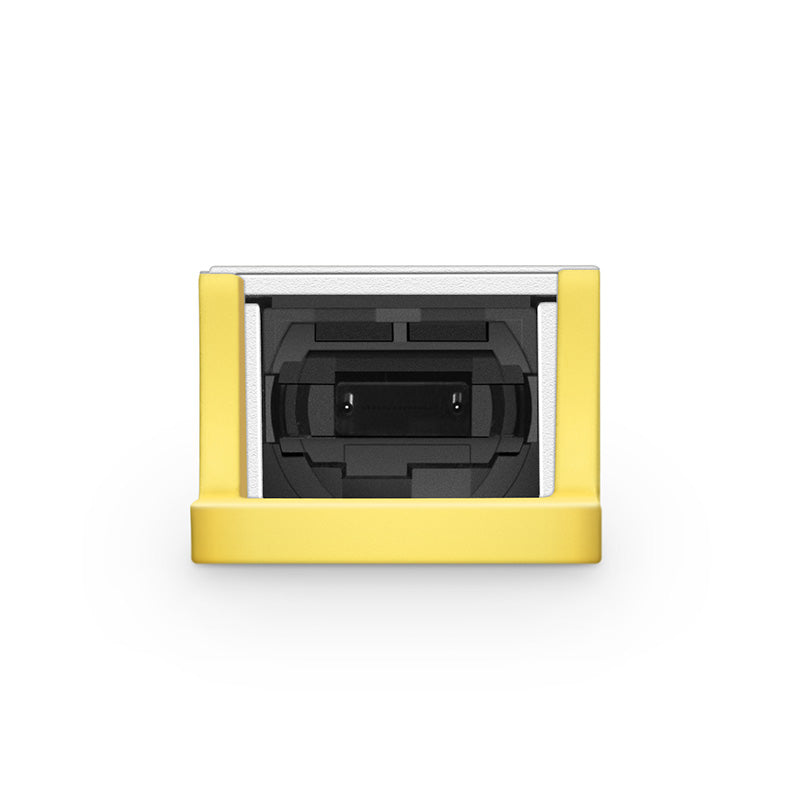

Connector Dual MTP/MPO-12 Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type VCSEL Receiver Type PIN
TX Power -3.1~+4.0dBm Receiver Sensitivity <>
Operation Temperature 0 to 70～C (32 to 158～F) Maximum Power <>
Protocols CMIS Rev 5.0, lEEE802.3ck, IEEE 802.3cu, QSFP-DD MSA Application 800G Ethernet, Data Center Interconnect, Infiniband Interconnects


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
