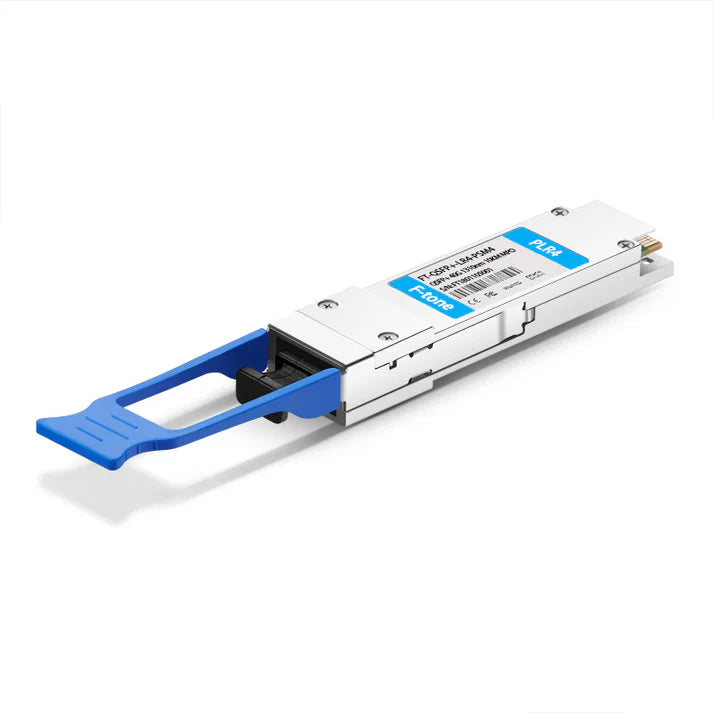

40GBASE-PLR4 QSFP+ 1310nm 10km MTP/MPO Transceiver for SMF

40GBASE-PLR4 QSFP+ 1310nm 10km MTP/MPO Transceiver for SMF

Просмотреть всю информацию

Part Number: QSFP-PLR4-40GFM

40GBASEPLR4 Transceiver QSFP+ 1310nm 10km MTP/MPO for SMF Generic Compatible

The Cisco QSFP-4X10G-LR-S Compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ae 10GBASE-LR/LW and OTN data rates OTU2, OTU1e, and OTU2e per the ITU standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Note: If this transceiver needs to be used to break out one 40G signal into 4x 10G signals, the interface of the device is required to support the breakout feature.

Description

Part Number QSFP-LR4-40G Vendor Name F-tone
Form Factor QSFP+ Max Data Rate 44.6Gbps (4×11.2Gbps)
Wavelength 1310nm Max Cable Distance 10km
Connector LC Duplex Cable Type SMF
Transmitter Type DFB CWDM Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -7~2.3dBm Receiver Sensitivity <-11.5dBm
Powerbudget 4.5dB Receiver Overload 2.3dBm
Power Consumption <3.5W Extinction Ratio ＞4.5dB
Transmit and Dispersion Penalty 2.6dB Modulation Format NRZ
Packaging Technology BOX Packaging Host FEC Supported
Bit Error Ratio (BER) 1E-12 Protocols OTN OTU3, 40G Ethernet, Infiniband, FiberChannel, SATA/SAS3, MSA Compliant
Application 40GBASE Ethernet, OTN OTU3 C4S1-2D1, OTU3e1 and OTU3e2, Data Center Warranty 5 Years

Datasheet

Part Number Distance Fibers Port
QSFP-SR4-40GFM 150m MMF MTP/MPO
QSFP-40G85-1MFM 150m/2km SMF/MMF LC
QSFP-40G-LR4-2FM 2km SMF LC
QSFP-40G-PLR4-2FM 2km SMF MTP/MPO
QSFP-LR4-40GFM 10km SMF LC
QSFP-PLR4-40GFM 10km SMF MTP/MPO
QSFP-ER4-40GFM 40km SMF LC
