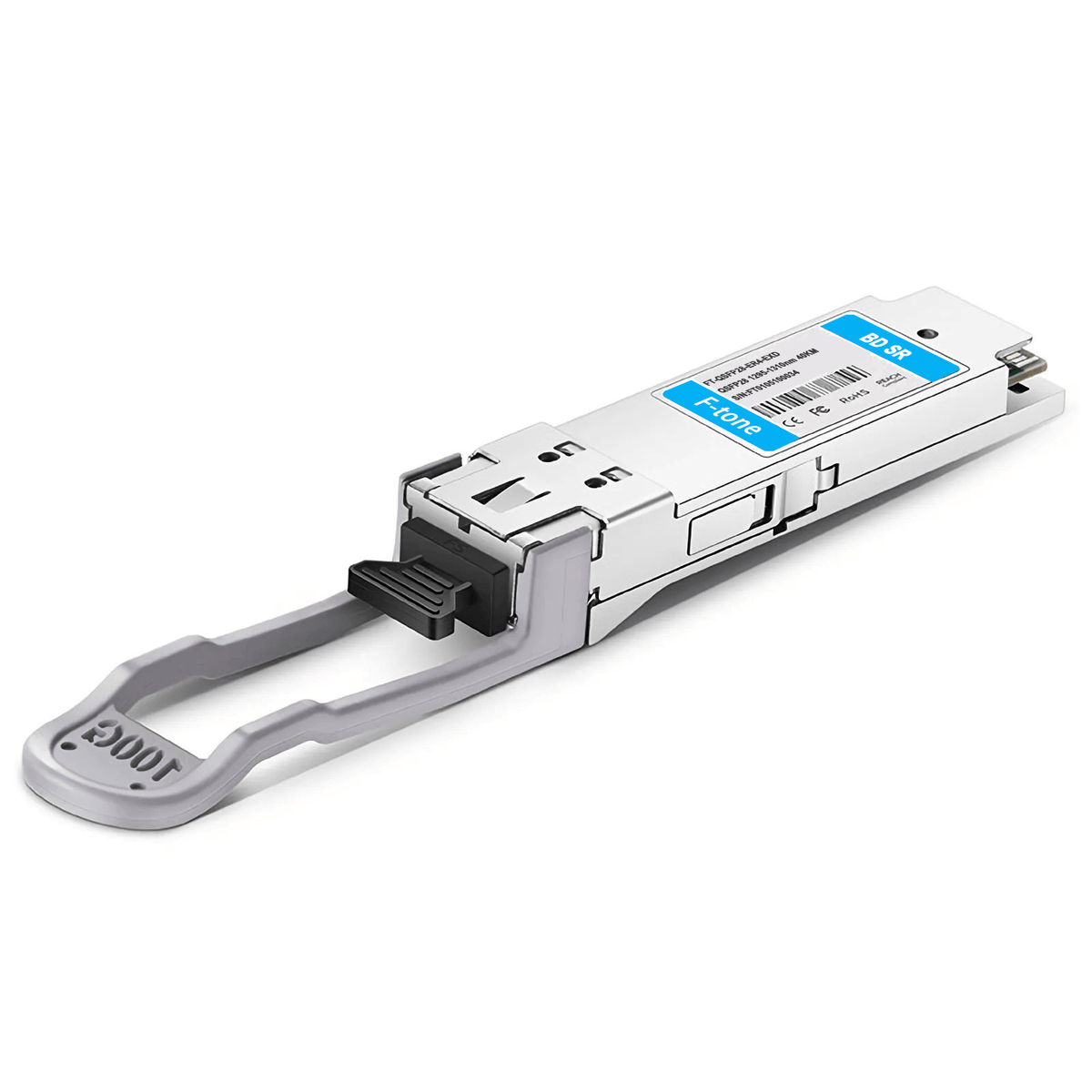

100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module Cisco QSFP-100G-ER4L-S

100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module Cisco QSFP-100G-ER4L-S

Просмотреть всю информацию

Part Number: QSFP28-100G-ER4L-S

Cisco QSFP-100G-ER4L-S Compatible 100GBASE-ER4 QSFP28 Transceiver Module (SMF, 1310nm, 40km, LC, DOM)

Product Details

Cisco Compatible QSFP-100G-ER4L-S Vendor Name F-tone
Form Type QSFP28 Max Data Rate 103.1Gbps
Wavelength 1310nm Max Cable Distance 25km-40km*
Connector LC Duplex Transmitter Type 4x EML
Cable Type SMF DDM/DOM Supported
TX Power -2.9~4.5dBm Receiver Sensitivity <-20.9dBm
Protocols 100G Ethernet, MSA Compliant Commercial Temperature Range 0 to 70°C (32 to 158°F)
Please Note:
* Requires 10dB fixed attenuator (ID# 48526) for <= 1km; 6dB fixed attenuator (ID# 11820) for <= 10km.
Requires 5dB fixed attenuator (ID# 48523) for <= 15km;
Attenuator is available as a spare.
** Full 40km reach requires the use of FEC on the host platform. Without FEC, the reach is 30km.

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC

Product Tree

Connection for 100G QSFP28 ER4 Transceivers with FHD Fiber Adapter Panel and Optical Attenuator

Simplify Data Center Building With F-tone One-Stop Solution

Quality Control System:

Quality Certification

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
