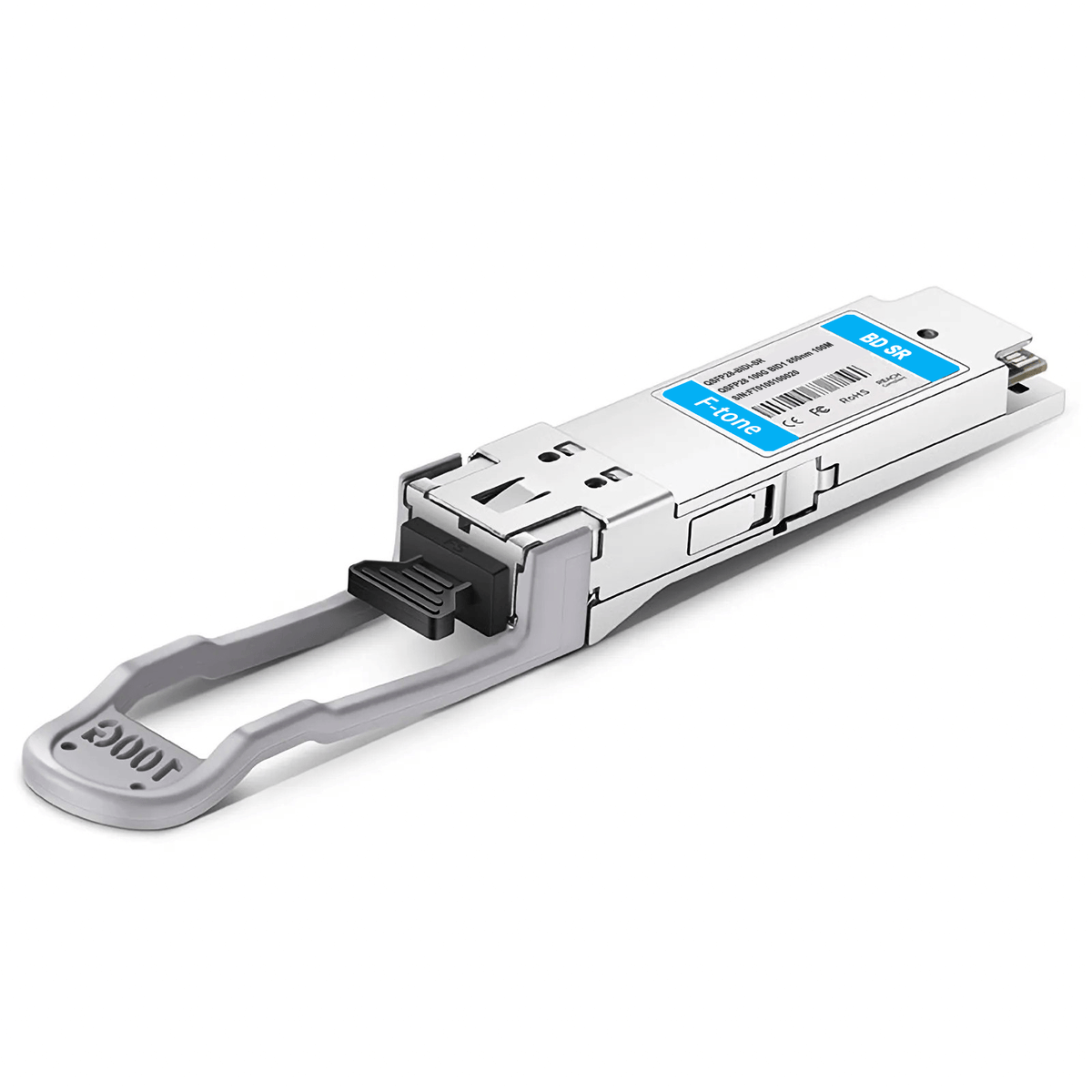

100GBASE-SR Bi-Directional QSFP28 850nm 100m DOM LC MMF Fiber Transceiver

100GBASE-SR Bi-Directional QSFP28 850nm 100m DOM LC MMF Fiber Transceiver

Просмотреть всю информацию

Part Number: QSFP28-BIDI-100G-FM

100GBASE-SR Bi-Directional QSFP28 Optical Transceiver Module for Ethernet and Data Center (MMF,850nm,100m, LC,DOM)

The 100GBASE-SR Bi-Directional QSFP28 transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to 100 Gigabit Ethernet connectivity.

This transceiver is compliant with the QSFP28 MSA and IEEE 802.3bm CAUI-4 electrical interface. Digital diagnostics functions are also available via an I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.

Description

Part Number QSFP28-BIDI-100G Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.1Gbps
Wavelength 850nm Max Cable Distance 75m@OM3/100m@OM4/150m@OM5
Connector LC Duplex Cable Type MMF
Transmitter Type VCSEL Receiver Type PIN
Power Consumption <3.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -5.5 - 3dBm Receiver Sensitivity <-9.5dBm
CDR (Clock and Data Recovery) TX & RX Built-in CDR Receiver Overload 3.4dbm
DDM/DOM Supported Bit Error Ratio (BER) 5x10E-5
EMC (Electro Magnetic Compatibility) Supported Host FEC Supported
Modulation Format NRZ Extinction Ratio 2.0dB
Protocols QSFP28 MSA and IEEE 802.3bm CAUI-4 MTBF 8,520,000 Hours
Application Data Center, 100GBASE Ethernet Warranty 5 Years

Note: F-tone QSFP28-BIDI-100G transceiver must be interoperable with F-tone QSFP28-BIDI-100G transceiver.

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Compatibility Matrix

Having been individually tested on a large amount of branded switches and servers, F-tone.COM generic compatible transceivers break free of vendor lock-in and guarantee continued flawless interoperability and compatibility with third party vendors as below.

ADVA Chelsio A10 Networks Cumulus Linux Gnoda Harting Hitachi Hillstone
D-Link Emulex EdgeCore F5 Networks Hirschmann IMC Networks Ixia Infinera
MRV Palo Alto Networks Nokia Q-logic Inteno JDS Uniphase ISIS Linksys
Solarflare TP Link SMC UniFi Long haul Lanner LevelOne LCSI
Ubiquiti ZYXEL ZTE AOM-CTG-i1SM Milan McAfee Mikrotik Myricom
ASGA Atto Accedian Networks Axis NetScout N-TRON Netscaler NEC
Agilent-Avago Allnet Allied Telesis Altera Stratix Netonix Omnitron Nimble Storage Optelian
Amer Networks Actelis Asante Allen Bradley Stratix Optone Opnext Orckit Optech
Aerohive SR2148P Alaxala Apple Avid ISIS Storage PENo ENto Networks Planet Penguin Arctica PicoLight
Barnfind Blackmagic Broadcom Ceragon QSAN RAD QNAP Redback
Coriant Cyberroam CTCUnion Compaq Ruijie Raiscom Ruggedcom RiverStone
CTC Union Centec Check Point Digital Scientific Atlanta Synology Siemens Seven solution
DCN Delta DATACOM Engenius SAGEM Source Photonics Sixnet Sonnet
Ericsson ELINX EMC ECI Speednt SUN SDN Sophos
FibroLAN Fujitsu Fortinet Fluke Network Telco Transition Networks Tejas TRENDnet
Fortigate Gigamon Fiberhome Gigalight Tellabs Xilinx Vixel XMC20 Keymile


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
