Part Number: QSFP28-ER4-100GFM

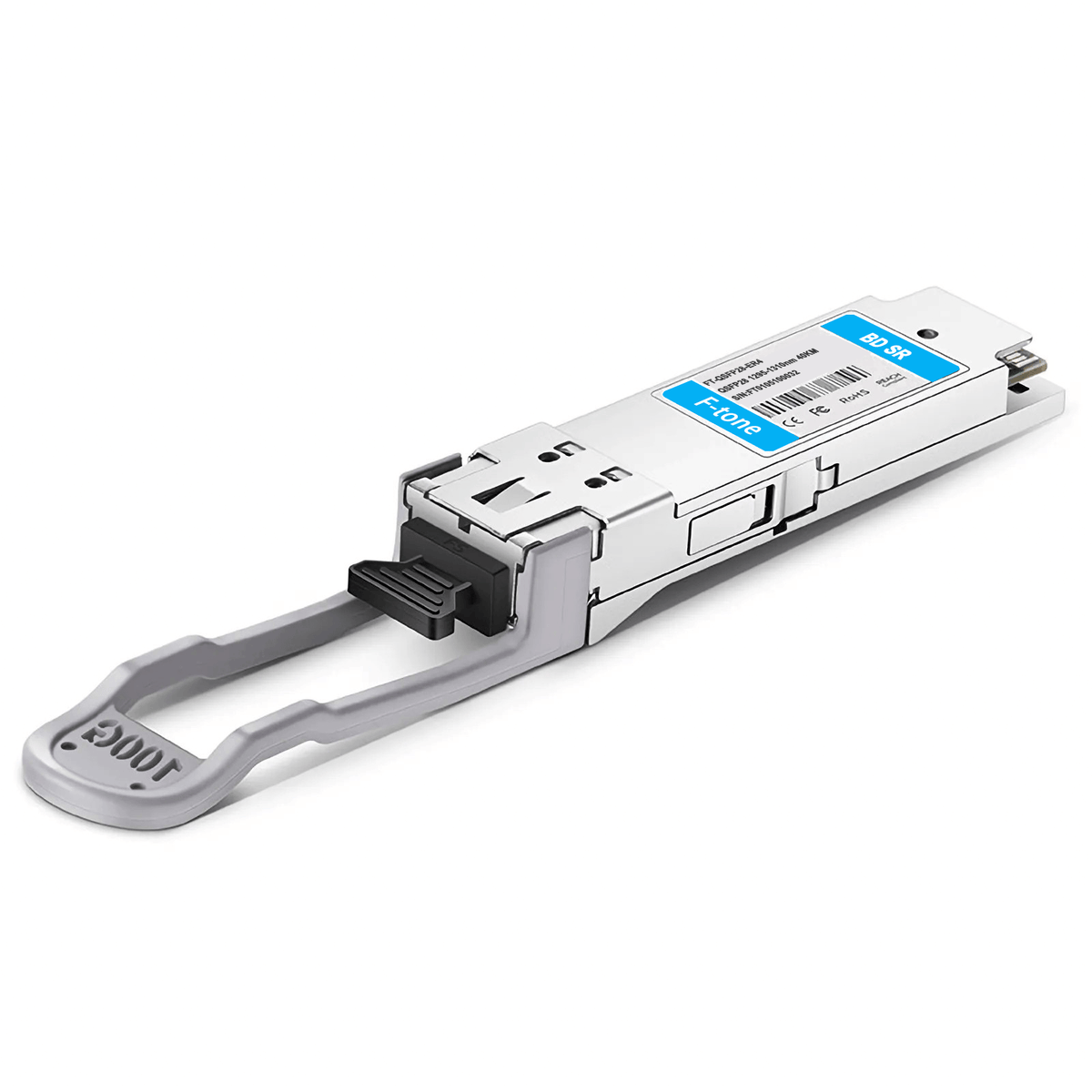

100GBASE-ER4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM)

The 100GBASE-ER4 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-ER4 Lite standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data centers, high-performance computing networks,enterprise core and distribution layer applications.

Spotlights

  • BOX Packaging, EML+APD, Built-in Dual CDR
  • ≤4.5W Low Power Consumption
  • Fully Compatible With 200+ Vendors
  • For Data Center and Telecom Applications
  • Hot Pluggable QSFP28 MSA Compliant

Description

Part Number QSFP28-ER4-100G Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelengths 1310nm Max Cable Distance 25km-40km
Connector LC Duplex Cable Type SMF
Transmitter Type 4x EML Receiver Type APD
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -2.9~4.5dBm Receiver Sensitivity <-20.9dBm
Powerbudget 18dB Receiver Overload -4.9dBm
Power Consumption ≤4.5W Extinction Ratio >4dB
Modulation Format NRZ CDR (Clock and Data Recovery) TX & RX Built-in CDR
Packaging Technology BOX Packaging Host FEC Supported
EMC (Electro Magnetic Compatibility) Supported Bit Error Ratio (BER) 1E-12
Protocols QSFP28 MSA Compliant Transmit and Dispersion Penalty 2.5dB
Application 100GBASE Ethernet, Data Center Warranty 5 Years

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.

Distance ≤ 15km ≤ 25km
Attenuator 10dB 5dB

Datasheet

Part Number Distance Fibers Port
QSFP28-SR4-100GFM 100m MMF MTP/MPO-12
QSFP28-PIR4-100GFM 500m SMF MTP/MPO-12
QSFP28-IR4-100GFM 2km SMF LC
QSFP28-LR4-100GFM 10km SMF LC
QSFP28-BLR4-100GFM 10km SMF LC
QSFP28-ER4-100GFM 40km SMF LC

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Compatibility Matrix

Having been individually tested on a large amount of branded switches and servers, F-tone.COM generic compatible transceivers break free of vendor lock-in and guarantee continued flawless interoperability and compatibility with third party vendors as below.

ADVA Chelsio A10 Networks Cumulus Linux Gnoda Harting Hitachi Hillstone
D-Link Emulex EdgeCore F5 Networks Hirschmann IMC Networks Ixia Infinera
MRV Palo Alto Networks Nokia Q-logic Inteno JDS Uniphase ISIS Linksys
Solarflare TP Link SMC UniFi Long haul Lanner LevelOne LCSI
Ubiquiti ZYXEL ZTE AOM-CTG-i1SM Milan McAfee Mikrotik Myricom
ASGA Atto Accedian Networks Axis NetScout N-TRON Netscaler NEC
Agilent-Avago Allnet Allied Telesis Altera Stratix Netonix Omnitron Nimble Storage Optelian
Amer Networks Actelis Asante Allen Bradley Stratix Optone Opnext Orckit Optech
Aerohive SR2148P Alaxala Apple Avid ISIS Storage PENo ENto Networks Planet Penguin Arctica PicoLight
Barnfind Blackmagic Broadcom Ceragon QSAN RAD QNAP Redback
Coriant Cyberroam CTCUnion Compaq Ruijie Raiscom Ruggedcom RiverStone
CTC Union Centec Check Point Digital Scientific Atlanta Synology Siemens Seven solution
DCN Delta DATACOM Engenius SAGEM Source Photonics Sixnet Sonnet
Ericsson ELINX EMC ECI Speednt SUN SDN Sophos
FibroLAN Fujitsu Fortinet Fluke Network Telco Transition Networks Tejas TRENDnet
Fortigate Gigamon Fiberhome Gigalight Tellabs Xilinx Vixel XMC20 Keymile


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
