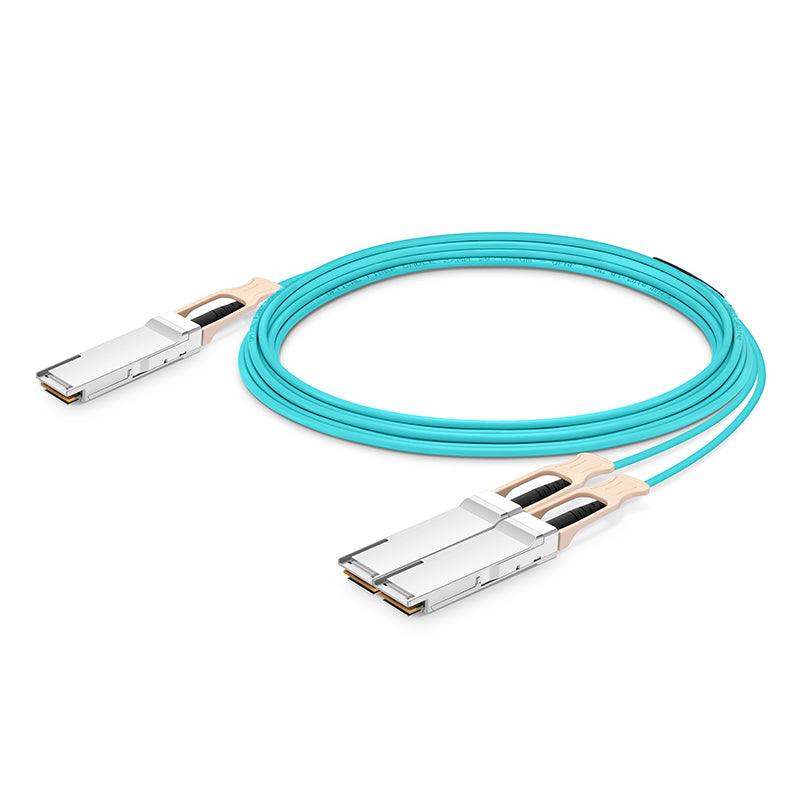

NVIDIA MFS1S00-H015V Compatible 15m (49ft) 200G InfiniBand HDR QSFP56 to QSFP56 AOC Cable

Part Number: QSFP56-200G-AOC-15FM

NVIDIA MFS1S00-H015V Compatible 200G HDR QSFP56 AOC (QSFP56 to QSFP56 Active Optical Cable OM3 MMF 15-meter)

NVIDIA Compatible 200GbE QSFP56 AOC Cabling Connection Applying NVIDIA 200GbE QSFP56 AOCs to achieve the long-haul transmission in your data center. NVIDIA Cable, Mellanox Cable

The 200G QSFP56 Active Optical Cable is designed for 200 Gb Ethernet links over OM3 multimode fiber and contains four multimode fiber (MMF) optical transceivers at each end, each capable of data rates up to 50Gb/s. It supports 100G/200G Ethernet for data centers and HPC (High-Performance Computing) links up to 70m (OM3) or 100m (OM4/OM5).

Product Details

Modulation Format DSP/PAM4 Host Required FEC
Connector Fiber Optic Cable Voltage Supply 3.3V
Cable Type MMF DDM Support Yes
Transmitter Type 850nm VCSEL Receiver Type PIN
Operating Case Temperature 0 to 70°C (32 to 158°F) Maximum Power <5.0W
Protocols SFF-8636 and SFF-8679, IEEE 802.3cd
Application Ethernet for 200GBASE-SR4, 200G InfiniBand HDR

Quality Certification

Quality and standards are the foundation of F-tone. we are dedicated to providing customers with outstanding, standards-compliant products and services. F-tone has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Quality Control System:

Our Test Assured ProgramTake a look at our optics test program and see what truly sets us apart.

Choose the Right Path to Your Modern Data Center

F-tone.COM offers a variety of integrated, holistic physical infrastructure solutions for data center intra-rack and inter rack applications.

400G cables, including MTP cables, DACs, AOCs, and LC fiber patch cables, offer multiple connectivity options in data centers.

Choose the right path to your modern data center will help you save cost, save time and better management.

Solution 1 --- Saving Cost

QSFP56 to QSFP56 Active Optical Cable is a kit, which includes the (2) QSFP56, and (1) OM4 cable.

For short distances DAC cables and AOC cables are preferred.

Solution 2 --- Flexible and High Density for Cable Management

Longer distances use fibre cables and QSFP56 transceiver modules.

• QSFP56-SR4-200G
• 12FMTPOM4
• QSFP56-SR4-200G

Packaging & Labeling

This easy to handle and well-protected transceiver package has been labelled and marked to default F-tone standards. Customized label or package solutions are available on request.

OEM & Customs

Partnering with a variety of world class OEM manufacturers for over 8 years, F-tone is able to provide customized high-quality and cost-effective solutions for all needs and specifications, including optical design, mechanical design, Printed Circuit Board (PCB) layout and electrical design, software & firmware design, integrated assembly, specific labels, etc. With surging sales and favorable customer feedback, F-tone has been expanding rapidly across the world and is becoming the leading provider of the optical communication industry. If you are interested in our products, please feel free to contact us at [email protected] .

Shipment

F-tone can ship via FedEx, DHL, UPS, TNT, EMS or a customer-arranged carrier. Items are often shipped the same day (some transceivers can be out the door in 20 minutes). If we have no stock in any of our global warehouses, the shipment will be delayed for 1-2 days. DHL will take 2-4 business days for delivery and FedEx only needs 1-3 business days. For Spain, Italy, Brazil and certain other countries, items will take longer to arrive due to the customs clearance period.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
