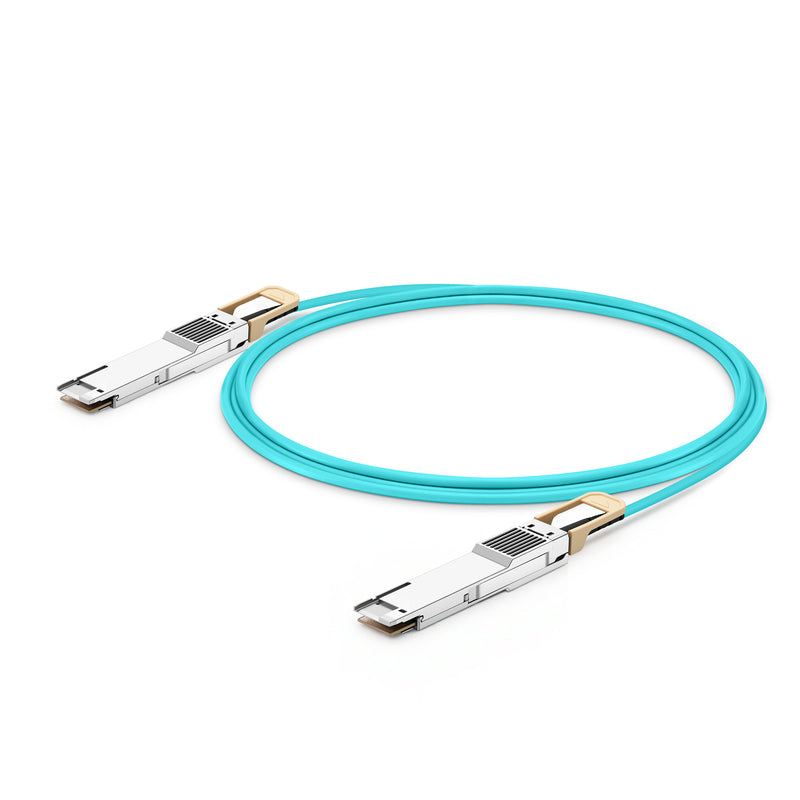

2m (7ft) 400G QSFP-DD AOC Active Optical Cable

2m (7ft) 400G QSFP-DD AOC Active Optical Cable

Просмотреть всю информацию

Part Number: QSFPDD-400G-AOC-2M

Generic Compatible 400G QSFP-DD AOC (2-meter, QSFP-DD to QSFP-DD)

Part Number QSFP-DD-400G-AOC Vendor Name F-tone
Connector Type QSFP-DD to QSFP-DD Max Data Rate 425Gbps
Minimum Bend Radius 7.5mm Cable Length 2m (7ft)
Jacket Material LSZH Cable Type Optical Cable
Receiver Type PIN Transmitter Type VSCEL
Wavelength 850nm CDR Support
MTBF ≈50 Million Hours Power Consumption <3.5W
Power supply 3.3V Temperature 0 to 70°C (32 to 158°F)
Protocols 400G Ethernet, InfiniBand 4xFDR/EDR

Datasheet

Part Number Data Rate Fibers Port
10GSFP-AOC-XFM 10G OM2/OM3 SFP+
SFP28-25G-AOC-XFM 25G OM2/OM3 SFP28
QQ-AOC-XFM 40G OM3 QSFP+
QSFP4S-AOC-XFM 40G OM3 QSFP+ to SFP+
QSFP-8X-AOC-XFM 40G OM3 QSFP+ to LC
QSFP-56G-AOC-XFM 56G OM3 QSFP+
QSFP-100G-AOC-XFM 100G OM3/OM4 QSFP28
QSFP28-AOC-4SFP28-XFM 100G OM3/OM4 QSFP28 to SFP28

Quality Certification

Quality and standards are the foundation of F-tone. We are dedicated to providing customers with outstanding, standards-compliant products and services. F-tone has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Lifetime Warranty

All the fiber optic products in F-tone are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
This product is free of load, mercury, cadmium, hexavalent chromium, polybrominated biphenyls and phthalates. Please contact us to learn more.
This product was produced under the requirements of CE to indicate conformity with the essential health and safety. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
This product provides the lifetime warranty ,which aims to reflect our greatest sincerity. Please contact us to learn more.

Quality Control System:

Our Test Assured ProgramTake a look at our optics test program and see what truly sets us apart.

Packaging & Labeling

This easy to handle and well-protected transceiver package has been labelled and marked to default F-tone standards. Customized label or package solutions are available on request.

OEM & Customs

Partnering with a variety of world class OEM manufacturers for over 8 years, F-tone is able to provide customized high-quality and cost-effective solutions for all needs and specifications, including optical design, mechanical design, Printed Circuit Board (PCB) layout and electrical design, software & firmware design, integrated assembly, specific labels, etc. With surging sales and favorable customer feedback, F-tone has been expanding rapidly across the world and is becoming the leading provider of the optical communication industry. If you are interested in our products, please feel free to contact us at [email protected] .

Shipment

F-tone can ship via FedEx, DHL, UPS, TNT, EMS or a customer-arranged carrier. Items are often shipped the same day (some transceivers can be out the door in 20 minutes). If we have no stock in any of our global warehouses, the shipment will be delayed for 1-2 days. DHL will take 2-4 business days for delivery and FedEx only needs 1-3 business days. For Spain, Italy, Brazil and certain other countries, items will take longer to arrive due to the customs clearance period.



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

Посмотреть все

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

Посмотреть все

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.
