Part Number: QSFPDD-DR4-400GFM

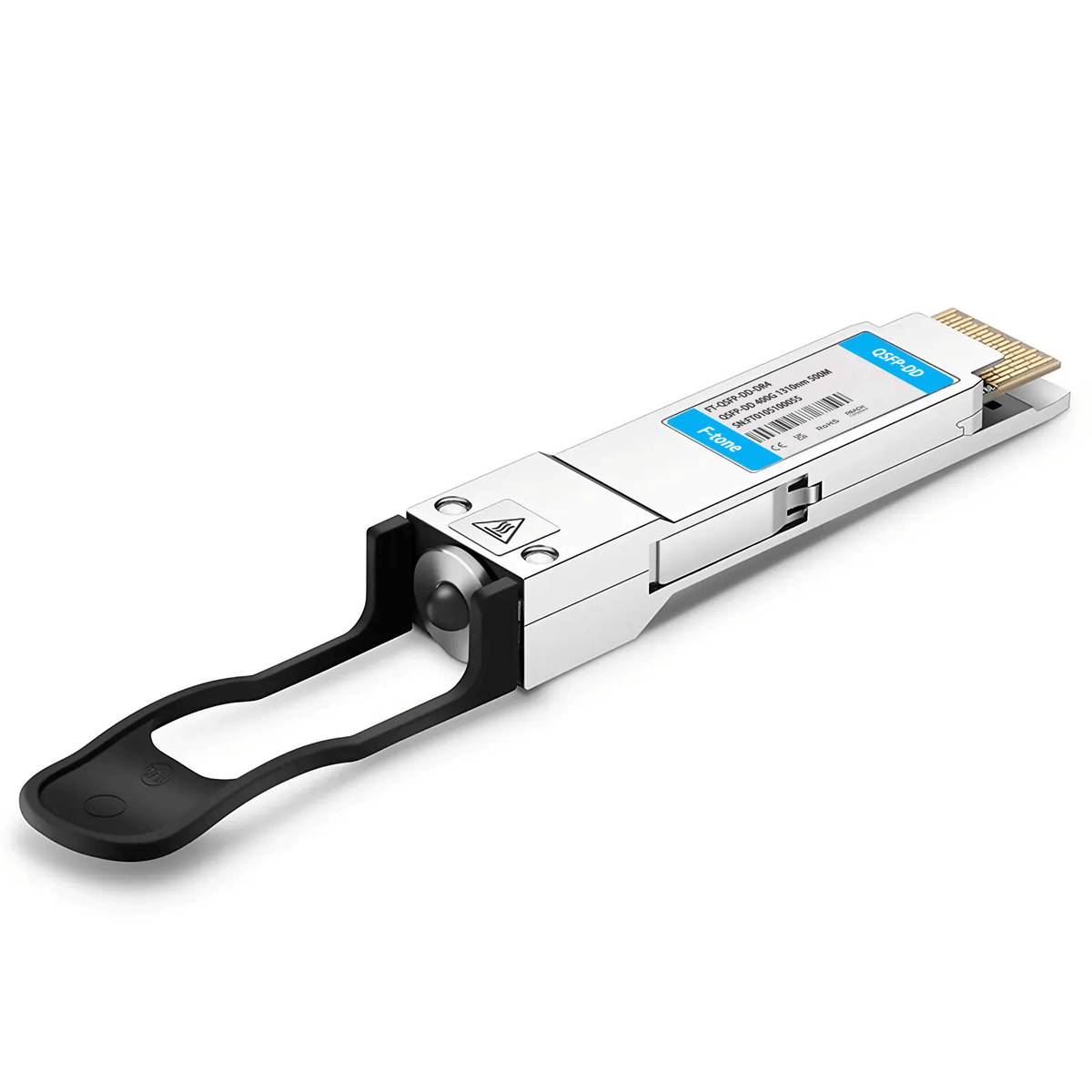

Cisco QDD-400G-DR4-S Compatible 400GBASE-DR4 QSFP-DD PAM4 1310nm 500m DOM Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)


The 400GBASE-DR4 module supports link lengths of up to 500m parallel SMF with MTP/MPO-12 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-DR-100G.
Cisco Compatible QDD-400G-DR4-S Vendor Name F-tone
Form Factor QSFP-DD Max Data Rate 400Gbps
Wavelength 1310nm Max Cable Distance 500m
Connector MTP/MPO-12 Media SMF
Transmitter Type 1310nm EML Receiver Type PIN
Electric Signal 8x50G Optical Signal 4x100G
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -2.9~4.0dBm Receiver Sensitivity <-5.9dBm
Power Consumption <12W Extinction Ratio 3.5dB
Modulation Format PAM4 DSP TX and RX
Transmitter and Dispersion Eye Closure Quaternary 3.4dB Powerbudget 3dB
Packaging Technology COB (chip on board) Packaging FEC Function* Not Supported
Protocols QSFP-DD MSA Compliant Application 400GBASE Data Center
Please Note:
* FEC in host is required to be turned on to increase the reliability of transmission.
